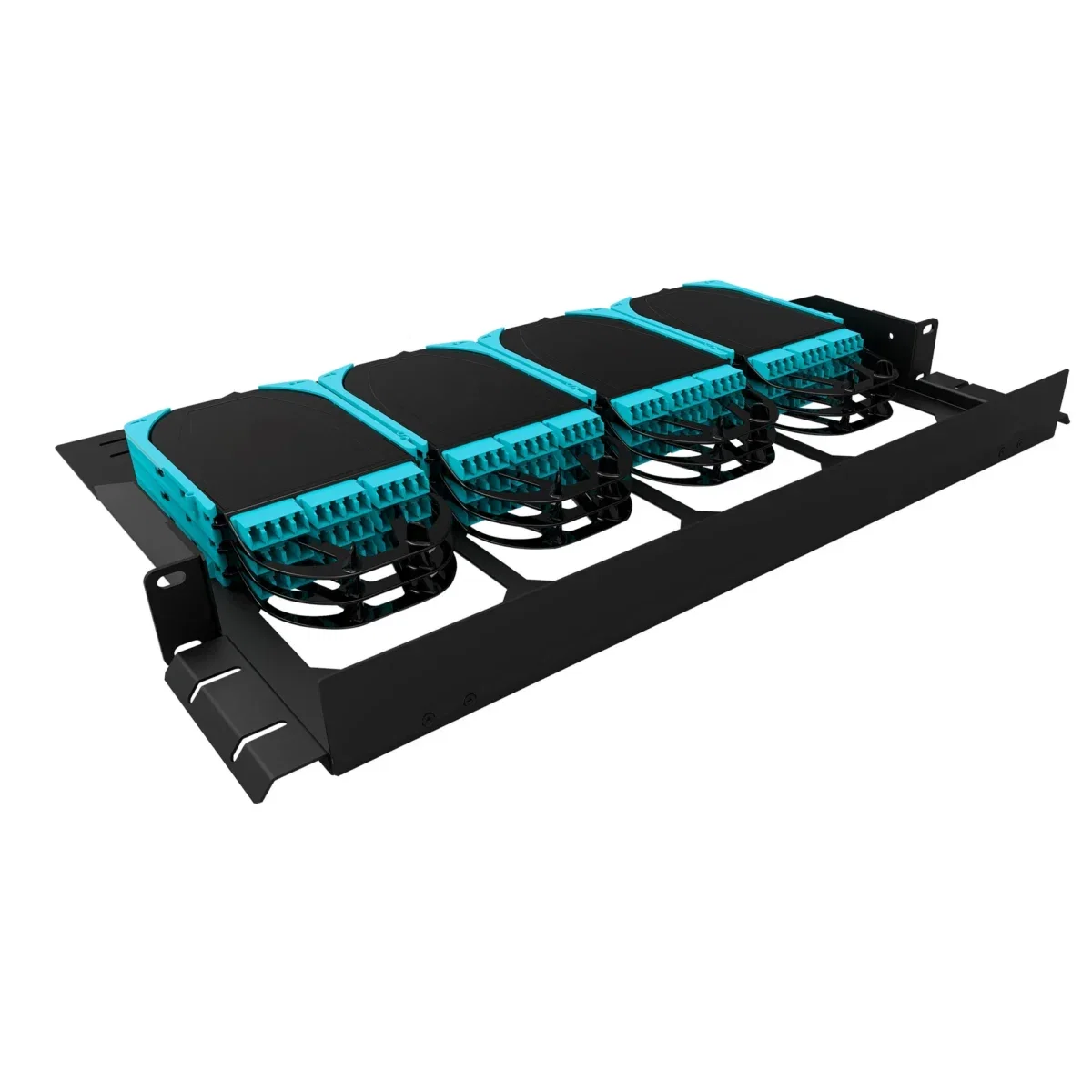

Patch Panel Modular HDX 1U (144 Fibres)
- Technology
- Fibre optic cables, connectors and assemblies
- Partner
- Lightera (formerly OFS)
The HDX 1U High-Density Fibre Patch Panel is a modular rack-mount unit designed for organisations that need to connect a large number of optical fibres in limited space. Occupying just one rack unit (1U) of a standard 19-inch rack, it can accommodate up to 144 fibre connections by using 12 HDX cassette modules. This patch panel is tailored for pre-terminated fibre systems, meaning installers can simply plug in fibre cassettes or trunks without time-consuming on-site splicing.
Built with a robust steel chassis and a textured black finish, it is engineered for reliable indoor use in data centres, server rooms, and telecommunications closets. The modular design makes it easy to scale or reconfigure as network demands grow, enabling quick expansion or changes with minimal disruption. Overall, this high-density fibre optic panel delivers a convenient, space-saving solution for managing complex fibre networks in professional environments.
Range features
A high level overview of what this range offers
- High-density 1U design – Supports up to 144 fibre connections in minimal rack space, maximising network density
- Modular HDX cassette system – Up to 12 plug-in cassette modules provide flexible configuration and easy future expansion without impacting performance
- Standard 19-inch compatibility – Mounts seamlessly in any standard 19-inch equipment rack, occupying only one rack unit for efficient use of space
- Integrated front cable manager – Built-in cable management bar keeps patch cords organised and prevents strain, ensuring neat and safe routing
- Pre-terminated plug-and-play solution – Enables fast installation using pre-terminated fibre cables and cassettes, with no on-site splicing required for quicker deployment
- Robust steel construction – Durable steel chassis with a textured black finish offers long-term reliability and corrosion resistance in indoor environments
- Includes mounting rails – Supplied with dedicated rails that guide and secure the HDX cassettes, making module insertion and removal straightforward and precise
Downloads
for Patch Panel Modular HDX 1U (144 Fibres)
HDX Modular Patch Panel 1U (144 Fibres) – Datasheet (English, PDF)
DownloadWhat’s in this range?
All the variants in the range and a comparison of what they offer
| Specification | Value |
|---|---|
Part Number | 35260601 |
Fibre capacity | Up to 144 fibres (with 12 HDX cassettes) |
Cassette slots | 12 (for HDX fibre cassettes) |
Rack size | Standard 19-inch rack, 1U height |
Height | 43.7 mm |
Width | 491.5 mm |
Depth | 344.5 mm |
Installation environment | Indoor |
Operation environment | Non-aggressive (indoor use only) |
Colour | Black |
Paint type | Plastic textured finish (black) |
Material | Steel (SAE 1020) |
FAQs
for Patch Panel Modular HDX 1U (144 Fibres)
HDX cassettes are modular fibre optic connection modules designed to plug into this patch panel. They typically come pre-loaded with fibre adapters or connectors (for example, connecting MPO trunk cables to multiple LC ports). The panel is sold empty (without cassettes included), so you will need to purchase the appropriate HDX cassette modules separately to populate its 12 slots as needed.
The patch panel achieves 144 fibre capacity by housing up to 12 HDX cassette modules, each handling a set of fibre connections. For instance, if each cassette provides 12 fibre terminations, a fully loaded panel with 12 cassettes will total 144 fibre optic connections. This high-density design allows a large number of fibres to be organised in just one rack unit of space.
No. The HDX 1U panel is intended for pre-terminated fibre systems and does not accommodate any splice trays or direct fibre splicing inside the chassis. All connections are meant to be made via the HDX cassettes and pre-terminated cables or pigtails. If your installation requires fibre splicing, you would need to use a different panel or an external splicing enclosure, as this unit is purely plug-and-play for connectors.
This patch panel is designed for standard racks. It is 19-inch rack-mountable and occupies 1U of rack height. In practice, it will fit into any standard 19-inch wide equipment cabinet or rack using the typical mounting holes. It comes with mounting brackets (ears) integrated for rack installation. You’ll secure it with standard rack screws in the 1U slot of your choice.
Yes. The panel is supplied with an integrated front cable management bar. This removable bar runs along the front and is used to neatly route and retain the patch cords after they are plugged into the cassettes. It helps organise the fibre jumper cables and relieves strain on the connections. (There isn’t a rear tray included, but the front organiser ensures the patch cords stay tidy and bend-radius compliant at the point of connection.)
Installing or replacing cassettes is designed to be very straightforward. The panel includes guiding rails for each cassette slot, so you can slide the HDX modules in from the front and secure them quickly (usually with simple latches or screws). This means you can add new cassette modules or swap out existing ones in a matter of minutes, without having to remove the entire panel or disturb other cassettes. The system’s modular nature allows for easy expansion and reconfiguration of fibre links with minimal downtime.
No – it’s intended strictly for indoor use in controlled environments like data centres, telecommunication rooms, or offices. The panel’s construction (painted steel) provides corrosion resistance under normal indoor conditions, but it is not weatherproof or sealed for outdoor exposure. In harsh or industrial settings with dust, moisture, or extreme temperatures, using this panel is not recommended. It should be installed in a clean, non-aggressive environment (such as an indoor telecom closet or server room) to ensure longevity and performance.
