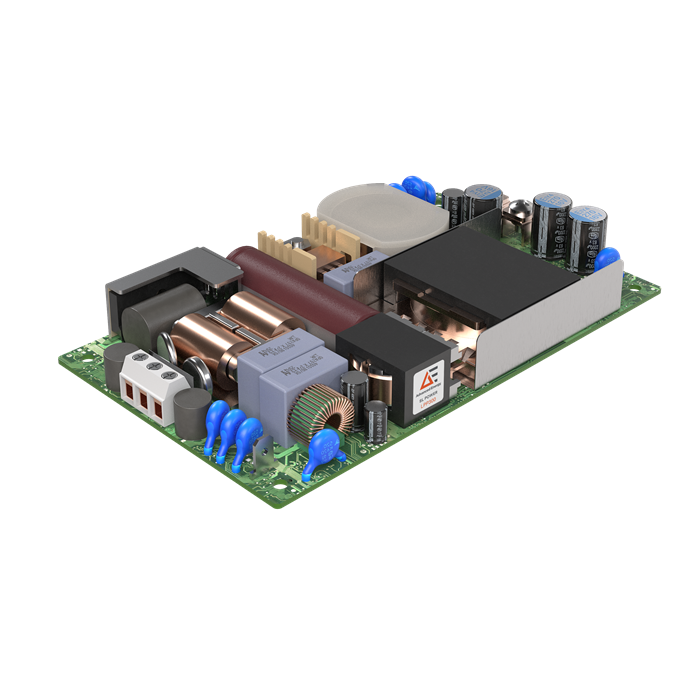

LPP300 Series 300 W Single Output Low Profile Industrial and Medical Grade PSU
- Technology
- Open / u-frame power supplies
- Partner
- Advanced Energy
The LPP300 series delivers 300 W AC-DC power conversion in a slim 0.75-inch (19 mm) high open-frame format. It is available in single-output 12 V, 24 V, and 48 V versions to support different system requirements. Designed for both medical and industrial applications, the series supports IEC 60601-1 and IEC 62368-1 compliance. Typical efficiency is around 90%, helping reduce heat and improve thermal performance in compact systems.
With suitable airflow, the units can deliver the full 300 W output. Built-in protection features include overvoltage, short-circuit, and overload protection. EMC Class B compliance helps simplify integration into sensitive equipment. The compact 3 inch by 5 inch footprint makes the series well suited to space-constrained embedded designs. Typical applications include medical imaging, patient monitoring, infusion systems, and test and measurement equipment.
The LPP300 series power supply is designed for engineers who need high output power in a very low-profile embedded format. With a height of just 0.75 inch (19 mm) and a compact 3 inch x 5 inch footprint, it fits easily into medical and industrial equipment where internal space is limited.
Available as LPP300S12K, LPP300S24K, and LPP300S48K, the series provides regulated single-output DC power for a wide range of applications. Its combination of medical safety support, Class B EMC performance, output trim capability, and dedicated 12 V fan output makes it a practical solution for compact systems that require dependable power delivery and simplified compliance.
Range features
A high level overview of what this range offers
- Ultra-low 0.75 inch profile with 3 inch x 5 inch footprint – Enables installation in compact, height-restricted medical and industrial designs.
- Up to 300 W output power – Supports demanding loads when adequate forced-air cooling is provided.
- High efficiency of around 90% typical – Reduces wasted energy and helps minimise thermal stress.
- 12 V, 24 V, and 48 V single-output models – Lets designers choose the voltage variant that best matches system requirements.
- Wide operating temperature range of -20 °C to +70 °C – Supports use across varied environments, with derating above higher ambient temperatures.
- 12 V auxiliary fan output – Simplifies system cooling by powering an external fan directly.
- ±5% output voltage adjustment – Allows fine tuning for application-specific voltage needs or wiring compensation.
- Medical and industrial safety compliance – Supports IEC 60601-1 Type BF related applications and IEC 62368-1 industrial/ITE integration.
- EMC Class B performance – Helps reduce emissions issues and simplifies compliance testing in sensitive equipment.
- Built-in OVP, OCP, short-circuit, and overload protection – Enhances reliability and protects both the supply and connected electronics.
Downloads
for LPP300 Series 300 W Single Output Low Profile Industrial and Medical Grade PSU
What’s in this range?
All the variants in the range and a comparison of what they offer
| Specification | LPP300S12K (12 V) | LPP300S24K (24 V) | LPP300S48K (48 V) |
|---|---|---|---|
AC Input Voltage | 90 – 264 VAC, 47-63 Hz (universal) | 90 – 264 VAC, 47-63 Hz (universal) | 90 – 264 VAC, 47-63 Hz (universal) |
Main Output Voltage | 12 V DC | 24 V DC | 48 V DC |
Maximum Output Current (with airflow) | 25 A | 12.5 A | 6.25 A |
Maximum Output Power | 300 W (with airflow) | 300 W (with airflow) | 300 W (with airflow) |
Efficiency (typical) | ~90% | ~90% | ~90% |
Output Voltage Adjustment | ±5% trim | ±5% trim | ±5% trim |
Auxiliary Output | 12 V DC fan supply | 12 V DC fan supply | 12 V DC fan supply |
Operating Temperature Range | -20 °C to +70 °C (derating above 50 °C) | -20 °C to +70 °C (derating above 50 °C) | -20 °C to +70 °C (derating above 50 °C) |
Safety Standards Compliance | IEC 60601-1 (Medical), Type BF; IEC 62368-1 (ITE) | IEC 60601-1, Type BF; IEC 62368-1 | IEC 60601-1, Type BF; IEC 62368-1 |
EMC/EMI Compliance | EN 55011/55032 Class B; IEC 60601-1-2 4th Ed. | EN 55011/55032 Class B; IEC 60601-1-2 4th Ed. | EN 55011/55032 Class B; IEC 60601-1-2 4th Ed. |
Dimensions (L × W × H) | 5 inch x 3 inch x 0.75 inch (127 x 76 x 19 mm) | 5 inch x 3 inch x 0.75 inch (127 x 76 x 19 mm) | 5 inch x 3 inch x 0.75 inch (127 x 76 x 19 mm) |
Form Factor / Mounting | Open-frame PCB supply (embedded) | Open-frame PCB supply (embedded) | Open-frame PCB supply (embedded) |
Protective Features | OVP, OCP, and overload protection | OVP, OCP, and overload protection | OVP, OCP, and overload protection |
FAQs
for LPP300 Series 300 W Single Output Low Profile Industrial and Medical Grade PSU
The LPP300 series is available in three single-output versions: 12 V, 24 V, and 48 V DC. Each model supports approximately ±5% output trim, allowing engineers to fine tune the voltage for application requirements or to compensate for cable losses.
To reach the full 300 W output rating, the LPP300 typically requires forced-air cooling. With sufficient airflow, the supply can deliver its maximum rated power. Under natural convection or reduced airflow, the available output power is lower, so fan cooling is recommended for full-capacity operation.
The specified operating range is -20 °C to +70 °C ambient. Output derating is required at higher temperatures, with derating beginning above approximately +50 °C. This helps maintain safe thermal performance and long-term reliability.
The series is designed to meet IEC 60601-1 for medical safety and IEC 62368-1 for industrial/ITE applications. It also supports EN 55011/EN 55032 Class B emissions and IEC 60601-1-2 4th Edition EMC requirements, helping simplify compliance in sensitive medical and industrial equipment.
Yes. The LPP300 series supports Type BF medical application requirements, making it suitable for systems such as patient monitors and imaging equipment where stringent patient leakage limits are important. Final compliance still depends on the design of the complete end equipment.
Each model includes multiple built-in protection functions, including over-voltage protection, over-current and short-circuit protection, and overload protection. These features help protect both the power supply and the connected load during abnormal operating conditions.
Yes. With a height of just 0.75 inch (19 mm) and a 3 inch x 5 inch footprint, the LPP300 is well suited to compact embedded designs and can fit comfortably inside 1U rack-mounted systems, subject to the overall mechanical and thermal design.
Yes. The LPP300 includes a dedicated 12 V auxiliary output intended mainly for powering an external cooling fan. This helps simplify thermal management, but it is not intended to function as a standby logic supply.
Typical applications include medical imaging systems, patient monitoring equipment, infusion pumps, and test and measurement instruments. It is a strong fit wherever compact size, low EMI, and dependable power delivery are essential.
An open-frame design means the power supply is provided as a bare internal board without its own external enclosure. It is intended to be mounted inside the end system, so the equipment manufacturer must provide the necessary mechanical protection, insulation, and safe integration within the final product.
