MTC (Micro Tech Components GmbH) is a leading manufacturer of high-quality products for electromagnetic shielding and heat dissipation. In addition to shielding the electronic housing, it may be necessary to shield the interference source directly on the Printed Circuit Board. Often required to comply with current EMC laws relating to outgoing and incoming radiation and/or to guarantee the safe function of the assembly. This range comes in a variety of different materials such as tin-plated steel, stainless steel, German silver, and copper beryllium and varying forms of delivery to suit your requirements. MTC provides customers with individual services and support, including consulting on projects, an extensive range of standard components, and the development and production of individual solutions. Whether you are looking to manage heat within your design at the initial concept stage, or need to stop unwanted frequencies entering your design before entering production, MTC can offer solutions for any size or scale of the project.

Board level shields

Range features

A high level overview of what this range offers

  • Shielding from five sides (sixth side through printed PCB)
  • Shields components or complete circuit parts
  • Base material: tinned steel (SPTE), stainless steel, Ecotrio ZSNH
  • Simple application in the standard SMD process
  • Additional installation with absorbers possible
  • One-piece shields
  • Two-piece shields (frame and cover)
  • SMD-compatible shielding clips and separate covers
  • Additional installation with absorbers possible
  • Tin plated and stainless steel options available

Downloads

for Board level shields

pdf
MTC board level shields overview
Download

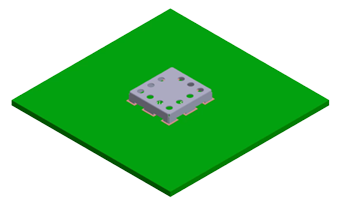

One-piece for soldering

Dimensions

WxLxHxThick From 13,66×12,70×2,54×0,20 to 44,37×44,37×9,75×0,20

  • Lower-cost variant
  • High shielding effect
  • Fully automatic pick
  • Simple assembly (SMD,THT-Technology)

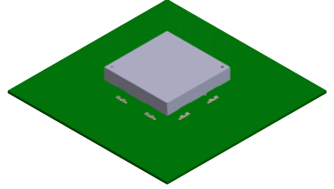

One-piece with shielding clips

Dimensions WxLxHxThick

  • Fully automatic assembly of clips
  • Clips as standard product; no tooling costs
  • Removable cover for maintenance purposes

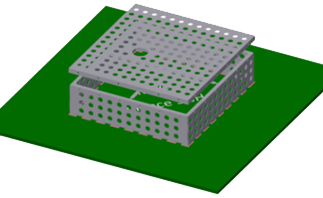

Two-piece for soldering

Dimensions WxLxHxThick

  • Fully automatic assembly of the frames
  • Pre-assembly of cover on frame possible; only one assembly step
  • Removable cover for easy maintenance purposes
