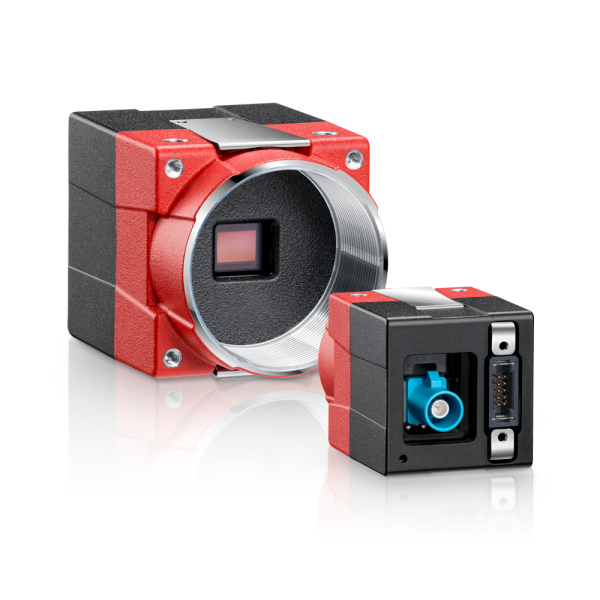

Alvium FP3 series FDP-Link III Interface long range camera modules
- Technology
- Imaging camera modules
- Partner
- Allied Vision
Alvium FP3 camera modules bring embedded machine vision to applications that need high-speed imaging over long cable runs. Built around the FPD-Link III interface, they transmit MIPI CSI-2 data over much longer distances than standard short CSI-2 ribbon connections. The series includes more than 30 camera models with global or rolling shutter CMOS sensors and resolutions up to 24.6 megapixels. Special variants are available for imaging beyond the visible spectrum, including UV and SWIR.
The closed industrial housing supports robust operation in demanding environments and is designed for EMC-compliant deployment. Connector options such as FAKRA coax and HSD STP support reliable data transfer in static and moving-cable installations. Standard GenICam controls and open software integration options simplify embedded system development. The Alvium FP3 range is well suited for robotics, industrial automation, multi-camera systems, and other embedded vision applications where distance, speed, and reliability all matter.
The Alvium FP3 series is designed for embedded vision systems that need dependable image transmission over longer distances than standard CSI-2 cabling typically allows. With integrated FPD-Link III serialization, rugged industrial housings, and broad sensor availability, these camera modules help engineers deploy high-performance vision closer to the point of capture.
Typical use cases include machine vision, robotics, automotive-related development, and distributed multi-camera systems where signal integrity, cable robustness, and streamlined integration are essential.
Range features
A high level overview of what this range offers
- FPD-Link III interface: Supports long-range, high-speed image transmission over coax or STP cabling with low latency.
- Long cable reach: Enables runs up to 15 m via FAKRA coax or 10 m via HSD STP, helping place cameras far from the host processor.
- Wide model selection: More than 30 camera variants are available with resolutions from VGA up to 24.6 MP.
- Global and rolling shutter options: Choose the sensor behavior best suited to motion capture, resolution, and sensitivity needs.
- Extended spectral coverage: Selected models support UV, NIR, and SWIR imaging for advanced inspection and sensing tasks.
- Rugged connector choices: Integrated serializer plus FAKRA or HSD connectors support reliable deployment in industrial and mobile environments.
- Dual GPIO: Two programmable I/O lines allow triggering, synchronization, and external device control.
- GenICam support: Familiar machine vision feature access simplifies software integration and camera configuration.
- Multi-camera friendly: Efficient CSI-2 transport and synchronization support make the range suitable for scalable embedded vision systems.
- Industrial closed housing: EMC-compliant design and resistance to shock and vibration support dependable operation in demanding conditions.
- Lens mount flexibility: Available with C-Mount, CS-Mount, or S-Mount (M12) to match a wide range of optics.
What’s in this range?
All the variants in the range and a comparison of what they offer
| Part Number | Resolution (MP) | Image Resolution (H × V) | Sensor | Pixel Size | Special Feature | Interface |
|---|---|---|---|---|---|---|
Alvium FP3-030 VSWIR | 0.3 | 656 × 520 | Sony IMX991 (InGaAs) | 5.00 µm | VSWIR | FPD-Link III |
Alvium FP3-040 | 0.4 | 728 × 544 | Sony IMX287 | 6.90 µm | — | FPD-Link III |
Alvium FP3-050 | 0.5 | 800 × 600 | ON Semi PYTHON 480 | 4.80 µm | — | FPD-Link III |
Alvium FP3-052 | 0.5 | 816 × 624 | Sony IMX426 | 9.00 µm | — | FPD-Link III |
Alvium FP3-120 | 1.2 | 1280 × 960 | ON Semi AR0135CS | 3.75 µm | — | FPD-Link III |
Alvium FP3-1236 | 12.4 | 4112 × 3008 | Sony IMX304 | 3.45 µm | — | FPD-Link III |
Alvium FP3-1240 | 12.2 | 4024 × 3032 | Sony IMX226 | 1.85 µm | — | FPD-Link III |
Alvium FP3-1242 | 12.4 | 4128 × 3008 | Sony IMX545 | 2.74 µm | — | FPD-Link III |
Alvium FP3-130 VSWIR | 1.3 | 1296 × 1032 | Sony IMX990 (InGaAs) | 5.00 µm | VSWIR | FPD-Link III |
Alvium FP3-158 | 1.6 | 1456 × 1088 | Sony IMX273 | 3.45 µm | — | FPD-Link III |
Alvium FP3-1620 | 16.2 | 5328 × 3040 | Sony IMX542 | 2.74 µm | — | FPD-Link III |
Alvium FP3-203 | 2 | 1632 × 1248 | Sony IMX422 | 4.50 µm | — | FPD-Link III |
Alvium FP3-2040 | 20.4 | 4512 × 4512 | Sony IMX541 | 2.74 µm | — | FPD-Link III |
Alvium FP3-2050 | 19.7 | 5376 × 3672 | Sony IMX183 | 2.40 µm | — | FPD-Link III |
Alvium FP3-210 | 2.1 | 1928 × 1088 | ON Semi AR0521SR (HD mode) | 2.20 µm | — | FPD-Link III |
Alvium FP3-234 | 2.4 | 1936 × 1216 | Sony IMX249 | 5.86 µm | — | FPD-Link III |
Alvium FP3-235 | 2.4 | 1936 × 1216 | Sony IMX174 | 5.86 µm | — | FPD-Link III |
Alvium FP3-240 | 2.4 | 1936 × 1216 | Sony IMX392 | 3.45 µm | — | FPD-Link III |
Alvium FP3-2460 | 24.6 | 5328 × 4608 | Sony IMX540 | 2.74 µm | — | FPD-Link III |
Alvium FP3-291 | 2.9 | 1944 × 1472 | Sony IMX421 | 4.50 µm | — | FPD-Link III |
Alvium FP3-319 | 3.2 | 2064 × 1544 | Sony IMX265 | 3.45 µm | — | FPD-Link III |
Alvium FP3-320 VSWIR | 3.2 | 2080 × 1544 | Sony IMX993 (InGaAs) | 3.45 µm | VSWIR | FPD-Link III |
Alvium FP3-500 | 5 | 2592 × 1944 | ON Semi AR0521SR | 2.20 µm | — | FPD-Link III |
Alvium FP3-501 NIR | 5 | 2592 × 1944 | ON Semi AR0522 | 2.20 µm | NIR | FPD-Link III |
Alvium FP3-507 | 5.1 | 2464 × 2056 | Sony IMX264 | 3.45 µm | — | FPD-Link III |
Alvium FP3-507 Pol | 5.1 | 2464 × 2056 | Sony IMX264 Polarizer | 3.45 µm | Polarized | FPD-Link III |
Alvium FP3-508 | 5.1 | 2464 × 2056 | Sony IMX250 | 3.45 µm | — | FPD-Link III |
Alvium FP3-508 Pol | 5.1 | 2464 × 2056 | Sony IMX250 Polarizer | 3.45 µm | Polarized | FPD-Link III |
Alvium FP3-510 | 5.1 | 2464 × 2064 | Sony IMX548 | 2.74 µm | — | FPD-Link III |
Alvium FP3-511 | 5.1 | 2464 × 2064 | Sony IMX547 | 2.74 µm | — | FPD-Link III |
Alvium FP3-530 VSWIR | 5.3 | 2592 × 2056 | Sony IMX992 (InGaAs) | 3.45 µm | VSWIR | FPD-Link III |
Alvium FP3-811 | 8.1 | 2848 × 2848 | Sony IMX546 | 2.74 µm | — | FPD-Link III |
Alvium FP3-812 UV | 8.1 | 2848 × 2848 | Sony IMX487 | 2.74 µm | UV | FPD-Link III |
Alvium FP3-895 | 8.9 | 4112 × 2176 | Sony IMX267 | 3.45 µm | — | FPD-Link III |
FAQs
for Alvium FP3 series FDP-Link III Interface long range camera modules
The FPD-Link III interface serializes the camera’s MIPI CSI-2 video data for reliable transmission over a single coaxial or STP cable. This allows high-bandwidth, low-latency image transfer over distances up to 10–15 metres, which is much longer than standard CSI-2 ribbon cable connections. Power and control can also be carried through the same link, helping simplify installation.
The Alvium FP3 range includes more than 30 models with resolutions from VGA up to 24.6 megapixels. Depending on the application, users can select global shutter or rolling shutter sensors. The series also includes specialized variants for UV, NIR, and SWIR imaging where spectral sensitivity beyond visible light is required.
The camera transmits a serialized CSI-2 stream over FPD-Link III, so the host side requires a compatible deserializer. That deserializer converts the signal back into standard MIPI CSI-2 for connection to a processor or FPGA. This approach enables the camera to behave like a CSI-2 imaging device while supporting much longer cable distances.
Alvium FP3 cameras are available with either FAKRA coaxial or HSD shielded twisted pair connectors. FAKRA coax is typically preferred for static installations and supports the maximum cable length of up to 15 m. HSD STP is better suited to flexible or moving cable applications, such as robotics, and supports runs up to 10 m.
Integration is simplified through GenICam support and standard CSI-2 data transport. Depending on the platform, developers can use vendor-provided software, open-source drivers, or low-level register access. Compatibility with common embedded vision workflows helps users integrate the cameras into applications built with tools such as V4L2, GStreamer, or OpenCV.
Yes. The Alvium FP3 series is well suited for multi-camera systems. The efficient serialized transport supports scalable camera integration, while the GPIO lines enable external triggering and synchronization between devices. This makes the range appropriate for stereo vision, surround vision, and other coordinated multi-camera applications.
Alvium FP3 camera modules are designed for demanding embedded and industrial environments. They use a closed housing, are engineered for EMC-compliant deployment, and are built to withstand shock and vibration. Exact operating temperature limits can vary by model, so the relevant data sheet should be checked for application-specific requirements.
