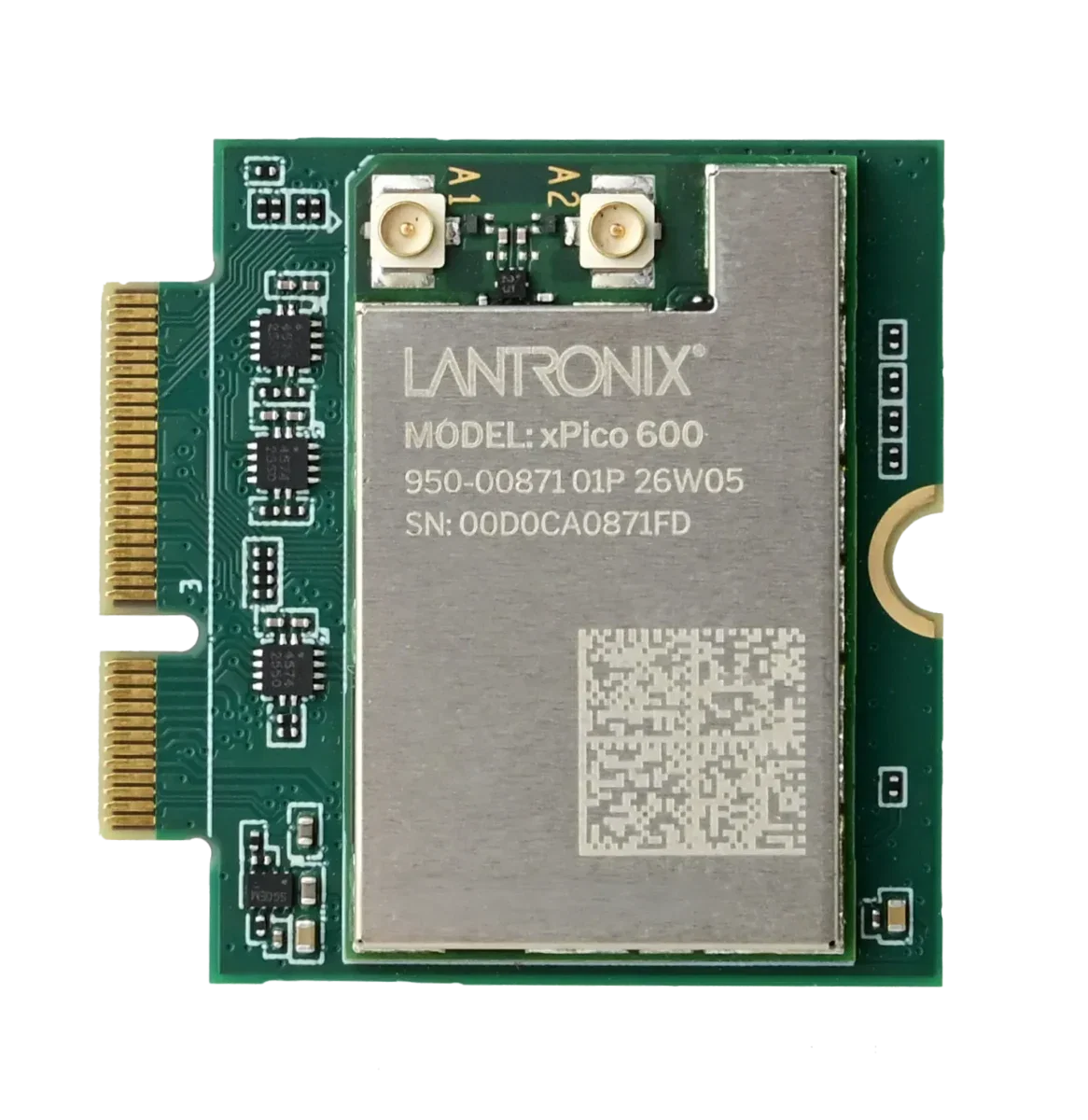

The xPico 600 Wi-Fi 6 module is a hostless embedded IoT gateway in M.2 form factor that combines Wi-Fi 6, Fast Ethernet, and Bluetooth® Low Energy 5.4 in one compact solution. It is designed for equipment manufacturers that need to add robust wireless and wired networking without the complexity of an external microcontroller. Its built-in processor can manage network communications independently, helping reduce development effort and shorten time to market.
The module supports enterprise-grade security features, secure firmware updates, and integration with the Percepxion™ cloud device management platform. With an industrial operating range of -40 °C to +85 °C and a rugged design, it is suited for demanding environments. Typical applications include robotics, AGVs, autonomous machines, industrial printers, and other connected commercial or industrial devices. The flexible architecture allows the module to operate either as a network co-processor or as a standalone wireless controller using the provided SDK.
The xPico 600 Wi-Fi 6 M.2 module is a compact, hostless embedded IoT gateway built for industrial and commercial devices that require secure, high-performance connectivity. It combines dual-band 802.11ax Wi-Fi 6, 10/100 Ethernet, and Bluetooth® LE 5.4 in a single module, enabling both wireless and wired communications without adding an external controller.
Its on-board processor can independently manage networking tasks, which helps simplify system design, reduce component count, and accelerate development. Engineers can use it as a network co-processor to offload communications from a host, or run custom applications directly on the module as a standalone wireless MCU.
Designed for harsh environments, the module supports an industrial temperature range of -40 °C to +85 °C and is well suited for robotics, AGVs, autonomous systems, industrial equipment, and other connected devices that demand reliable low-latency communications, enterprise-grade security, and remote device management.
Range features
A high level overview of what this range offers
- Dual-band Wi-Fi 6 and Fast Ethernet: Enables reliable high-speed wireless and wired communication for industrial networking.
- Enterprise Wi-Fi security: Supports 802.1X EAP authentication for protected network access and secure data transfer.
- Bluetooth® LE 5.4: Connects to BLE sensors and peripherals with low-power local wireless capability.
- Automatic connection management: Handles network selection and switching to reduce downtime in dynamic environments.
- Concurrent Soft AP + Client mode: Allows local access point functionality without interrupting the main network connection.
- Co-processor or standalone MCU operation: Gives developers flexibility to offload networking or run applications directly on the module.
- Percepxion™ cloud integration: Simplifies remote monitoring, lifecycle management, and secure firmware updates.
- Global certifications and compliance: Helps accelerate deployment across international markets with pre-approved radio certifications.
- Industrial-grade ruggedness: Supports operation from -40 °C to +85 °C for demanding environments.
- Compact M.2 3030 footprint: Fits space-constrained designs and integrates easily through a standard M.2 E-Key interface.
Downloads
for xPico 600 Wi-Fi 6 M.2 module
What’s in this range?
All the variants in the range and a comparison of what they offer
Specification | Details |
Wireless LAN (Wi‑Fi) | Dual-band 2.4 GHz & 5 GHz 802.11ax Wi-Fi 6 (1×1, 20 MHz channels); backward compatible with 802.11a/b/g/n/ac; supports 802.11d/h/i; throughput up to 1.2 Gbps. |
Ethernet | 10/100 BASE-T Fast Ethernet PHY; requires external magnetics; supports auto-negotiation, link detection, Wake-on-LAN, and dual LED indicator pins. |
Bluetooth | Bluetooth LE v5.4 with separate antenna path for concurrent Wi‑Fi/BLE operation; supports Central and Peripheral roles; compatible with GAP and GATT. |
Serial Interface | UART (TTL) up to 4 Mbps; software-selectable baud rates; DTR/DCD control signals; RTS/CTS hardware flow control; XON/XOFF supported. |
USB Interface | USB 2.0 Host port for peripheral connectivity or expansion. |
GPIO & I/O | 12 programmable GPIO pins plus dedicated Reset, Factory Default, and Wake system pins. |
Networking & Protocols | Built-in TCP/IP stack with IPv4/IPv6; DHCP client and server; HTTP/HTTPS server-client; TCP, UDP, ARP, ICMP, DNS; SNMP v1/v2. |
Industrial Wireless Features | Concurrent Soft AP + Station mode, multi-network profiles, Ethernet-to-Wi‑Fi client bridge mode, and fast roaming (802.11r). |
Data Communication | TruPort® Serial for serial-over-IP over TCP/UDP with TLS support; TruPort® Socket for multi-connection handling; Modbus TCP to Modbus RTU/ASCII bridging. |
Security & Encryption | InfiniShield™ suite with secure boot, signed FOTA updates, encrypted key storage, role-based access control, WPA/WPA2, WPA3 Enterprise, TLS 1.3, X.509 certificates up to 4096-bit, and AES 128/192/256-bit. |
Management Interfaces | Integrated web management, CLI, XML API, Lantronix Discovery protocol, and secure firmware upgrade via HTTP. |
Operating Conditions | Operating temperature: -40 °C to +85 °C; storage temperature: -40 °C to +85 °C; vibration tolerance: 40 G; shock tolerance: 65 G non-operational; humidity: 10%–85% RH non-condensing. |
Form Factor & Dimensions | M.2 3030 module (Key E, 30 × 30 mm) and LGA module (18 × 28.5 × 3.15 mm). |
Certifications & Compliance | Planned radio approvals for USA, Canada, EU, Japan, Taiwan, China, and India; safety standards include EN/IEC 62368-1 and related compliance; RoHS and REACH compliant; IPv6 Ready; Bluetooth qualified. |
Warranty | 5-year manufacturer warranty. |
FAQs
for xPico 600 Wi-Fi 6 M.2 module
The hostless architecture means the module has its own on-board processor to handle networking and device tasks without requiring a separate host MCU. This simplifies hardware design and software integration because the module can directly manage Wi-Fi, Ethernet, and Bluetooth connectivity on its own. It can help reduce component count, lower system cost, and streamline development.
Yes. The xPico 600 can operate either as a network co-processor or as a standalone wireless microcontroller. It can offload networking tasks from an existing host processor, or run application code directly on the module using the provided SDK.
The module supports dual-band Wi-Fi 6 (802.11ax), 10/100 Ethernet, and Bluetooth® Low Energy 5.4. This combination allows high-speed wireless networking, wired network fallback or redundancy, and local BLE communication with nearby sensors and peripherals.
Yes. The xPico 600 is designed for concurrent Wi-Fi and Bluetooth operation. Separate antenna paths and radio chains allow the module to maintain a Wi-Fi connection while communicating with Bluetooth Low Energy devices at the same time.
The module includes the InfiniShield™ security framework with secure boot, encrypted storage for keys and configuration, and authenticated firmware updates. It also supports enterprise wireless security including WPA2-Enterprise and WPA3 with 802.1X authentication methods, plus TLS 1.3 encryption, X.509 certificates, and role-based access controls.
The xPico 600 integrates with the Percepxion™ cloud device management platform for remote monitoring, configuration, and firmware updates. It also provides local management options including a built-in web server and APIs, giving flexibility for both single-device and fleet-scale deployments.
Typical applications include robotics systems, AGVs, autonomous machines, industrial printers, smart equipment, and building automation controllers. It is well suited for devices that need secure dual-band Wi-Fi, optional wired Ethernet, BLE connectivity, and industrial-grade reliability.
The module is available as an M.2 3030 Key E module for socketed integration and as an LGA version for solder-down designs. M.2 is useful for rapid integration or replaceable modules, while LGA is better for compact, permanent production designs.
Yes. The xPico 600 is designed for industrial use with an operating temperature range of -40 °C to +85 °C, plus resistance to vibration and shock. This makes it suitable for factory floors, vehicles, outdoor equipment, and other demanding environments.
Yes. With TruPort® technology, the module can transport serial data over TCP or UDP networks and support serial-over-IP applications. It also supports Modbus TCP to Modbus RTU/ASCII bridging, helping integrate legacy industrial devices into modern Ethernet or Wi-Fi networks.
