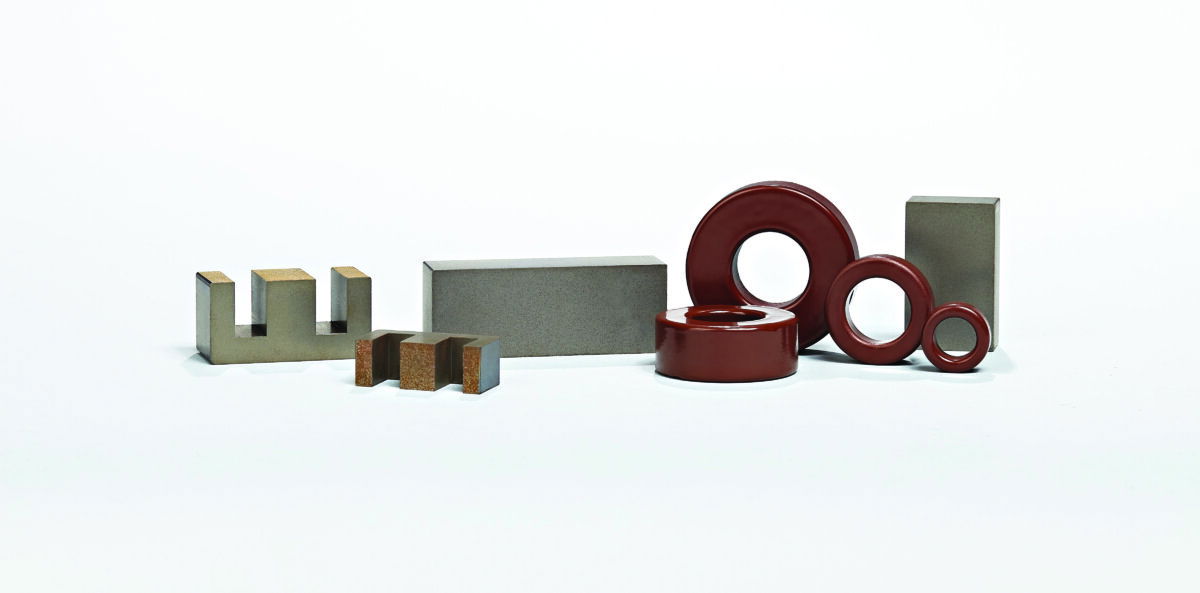

XFlux Powder Cores

XFlux cores from Magnetics Inc. offer an economical high saturation (1.6 Tesla) solution for use in low and medium frequency inductors and chokes. The high saturation is advantageous in applications where inductance under load is critical such as inverters for alternative energy, power factor correction (PFC) boost, and uninterruptible power supplies (UPS).

XFlux Powder Cores

Range features

A high level overview of what this range offers

  • FeSi alloy powder material
  • Available shapes: toroid, E, block, EQ, LP, and EER
  • Sizes: 12mm to 167mm
  • Permeability: 19µ, 26µ, 40µ, 60µ, 75µ, 90µ, and 125µ
  • Coating colour: brown
  • Very high saturation flux density of 1.6T
  • Typical applications:- Inverters for renewable- Power factor converters (PFC)- Uninterruptable power supplies (UPS)- Welding machines

Downloads

for XFlux Powder Cores

pdf
Magnetics Inc powder cores brochure
Download
pdf
Magnetics Inc Xflux
Download
pdf
Magnetics Inc XFlux material property curves
Download

What’s in this range?

All the variants in the range and a comparison of what they offer

ShapeSizes (mm)PermeabilitiesLe path length (mm)Ae cross section (mm2)Ve volume (mm3)

Toroid

13.5 x 6.98 x 5.52 -167 x 101.0 x 33.2

19, 26, 40, 60, 75, 90, 125

31.2 – 412

10.9 – 987

340 – 407,000

E-core

19.3 x 8.1 x 4.8 – 115.1 x 45.8 x 35.3

26, 40, 60

40.1 – 215

22.8 – 1220

914 – 262,000

Blocks

48.1 x 41.5 x 27.9 – 80.5 x 30.3 x 20

26, 40, 60

23,000 – 53,600

EQ

26.5 x 7.0 x 19.0 -50.0 x 25.0 x 32.0

26, 40, 60, 75

42.3 – 133.4

119.8 – 314.1

LP

23.4 x 8.7 x 14.0 -42.0 x 15.8 x 25.0

26, 40, 60, 75

49.1 – 90.1

67.0 – 206.0

EER

25.5 x 11.0 x 7.5 -40.0 x 22.4 x 13.3

26, 40, 60

57.8 – 111.3

45.0 – 149.1
