Edge Powder Cores

Technology
Powder cores
Partner
Magnetics Inc.

Designed for cutting edge performance, Edge cores from Magnetics Inc. offer the highest efficiency and best DC bias performance of all alloy powder cores.

With Edge, the Magnetics Inc. research and development team have improved the performances of High Flux by increasing 30% the already optimum DC Bias and reducing by 40% power losses.

The high saturation flux density (15,000 gausses) and improved low losses of Edge cores make them the best material for applications involving high power, or high AC bias at high power frequencies and compact dimensions such as switching regulator inductors, in-line noise filters, flyback transformers, Power Factor Correction (PFC) for telecom servers or high-density rack mount power suppliers.

Edge Powder Cores
IntroFeaturesDownloadsSpecificationsContact

Range features

A high level overview of what this range offers

  • NiFe alloy powder core
  • 30% increased high DC-Bias capability
  • 40% fewer power losses vs High Flux
  • Permeabilities µ = 14, 19, 26, 40, 60, 75, 90, 125
  • Available on toroids
  • Custom shapes available

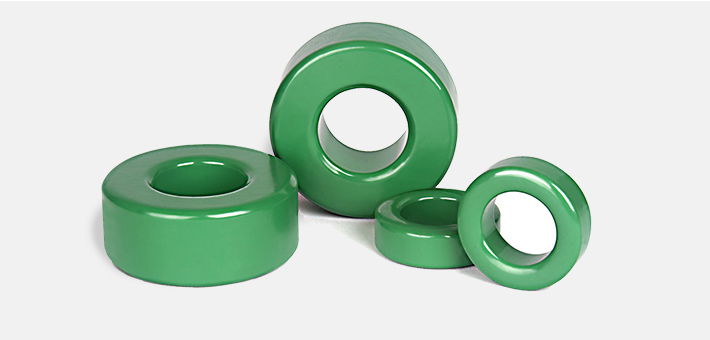

  • Colour: green coating
  • Sizes from 13.4mm up to 134mm OD

Downloads

for Edge Powder Cores

pdf
Magnetics Inc Edge powder cores technical bulletin
Download
pdf
Magnetics Inc Edge material property curves
Download
pdf
Magnetics Inc powder cores brochure
Download

What’s in this range?

All the variants in the range and a comparison of what they offer

ModelSize (finished) (OD × ID × HT)A L (nH /N2) 26µA L (nH /N2) 60µA L (nH /N2) 125 µLe (cm)Ac (cm2)Vol (cm3)

050

13.5 x 6.99 x 5.51

12

27

56

31.2

11.7

365

120

17.3 x 9.53 x 7.11

15

35

72

41.2

19.56

806

380

21.1 x 12.1 x 7.11

19

43

89

41.4

23.2

960

206

23.6 x 13.3 x 8.4

14

32

68

50.9

23.47

1194

310

24.3 x 13.8 x 9.7

19

43

90

56.7

32.85

1863

350

27.7 x 14.1 x 11.9

22

51

105

58.8

38.8

2281

930

33.7 x 19.5 x 11.4

32

75

157

65.4

66.1

4322

548

33.7 x 19.5 x 11.4

28

61

127

81.4

67.7

5509

585

35.2 x 22.6 x 9.8

16

38

79

89.5

47.1

4215

324

36.7 x 21.5 x 11.4

24

56

117

89.8

68.3

6136

254

40.8 x 23.3 x 15.4

35

81

168

98.4

110.6

10880
