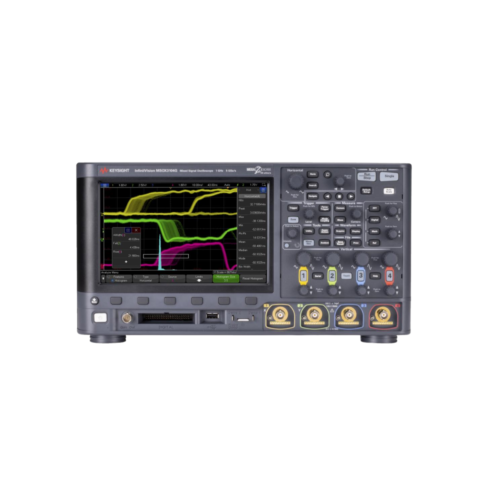

The InfiniiVision 3000T X-Series oscilloscopes are designed for engineers and technicians who need versatile and precise measurement tools for modern electronic design and test. The series offers bandwidth choices from 100 MHz to 1 GHz and up to 4 analogue channels for observing multiple signals at once. An 8.5-inch capacitive multi-touch screen enables intuitive operation through pinch, swipe, and tap gestures, while dedicated knobs and buttons preserve traditional hands-on control. With waveform update rates of up to 1,000,000 waveforms per second, these oscilloscopes improve the likelihood of capturing rare glitches and intermittent anomalies. Optional 16 digital channel capability transforms each unit into a mixed-signal oscilloscope for combined analogue and digital debugging. The platform also supports optional WaveGen, serial protocol analysis, segmented memory acquisition, and built-in DVM and frequency counter functions. Compact and upgradeable, the 3000T X-Series is well suited to embedded design, serial bus troubleshooting, power electronics analysis, and automotive signal measurement.
Range features
A high level overview of what this range offers
- 100 MHz to 1 GHz bandwidth range – Supports accurate analysis of signals from low-frequency analogue sources to high-speed digital lines, with upgrade paths available as requirements expand.
- Up to 4 analogue channels – Enables simultaneous observation of multiple circuit nodes for efficient debugging and comparison of signal behaviour.
- Optional 16 digital channels – Adds mixed-signal capability for viewing logic activity alongside analogue waveforms without a separate logic analyser.
- Up to 1,000,000 waveforms per second update rate – Improves the chance of detecting intermittent glitches and rare signal anomalies that slower oscilloscopes may miss.
- 4 Mpts memory per channel – Captures longer time windows at high sample rates and supports detailed zooming into waveform events.
- 8.5-inch capacitive touchscreen – Provides fast, intuitive interaction through tap, swipe, pinch, and zone trigger setup while retaining dedicated physical controls.
- Optional 20 MHz WaveGen function generator – Lets users generate test signals directly from the oscilloscope to stimulate circuits during development and troubleshooting.
- Serial protocol decoding and triggering – Supports common buses such as I²C, SPI, UART/RS-232, CAN, and LIN for faster embedded system diagnostics.
- Segmented memory acquisition – Efficiently records bursts and event frames while skipping idle periods, making better use of available memory.
- Built-in DVM and frequency counter – Adds convenient voltage and frequency measurement capability without needing separate bench instruments.
- Upgradeable platform – Allows bandwidth and feature expansion through software licenses, helping protect long-term investment.
What’s in this range?
All the variants in the range and a comparison of what they offer
| Model | 3012T | 3014T | 3022T | 3024T | 3032T | 3034T | 3052T | 3054T | 3102T | 3104T |
|---|---|---|---|---|---|---|---|---|---|---|
Analogue bandwidth | 100 MHz | 100 MHz | 200 MHz | 200 MHz | 350 MHz | 350 MHz | 500 MHz | 500 MHz | 1 GHz | 1 GHz |
Analogue channels | 2 channels | 4 channels | 2 channels | 4 channels | 2 channels | 4 channels | 2 channels | 4 channels | 2 channels | 4 channels |
Max sample rate | 5 GSa/s | 5 GSa/s | 5 GSa/s | 5 GSa/s | 5 GSa/s | 5 GSa/s | 5 GSa/s | 5 GSa/s | 5 GSa/s | 5 GSa/s |
Standard memory depth (per channel) | 4 Mpts | 4 Mpts | 4 Mpts | 4 Mpts | 4 Mpts | 4 Mpts | 4 Mpts | 4 Mpts | 4 Mpts | 4 Mpts |
Vertical resolution | 8-bit ADC | 8-bit ADC | 8-bit ADC | 8-bit ADC | 8-bit ADC | 8-bit ADC | 8-bit ADC | 8-bit ADC | 8-bit ADC | 8-bit ADC |
Optional MSO logic channels | 16 (with upgrade) | 16 (with upgrade) | 16 (with upgrade) | 16 (with upgrade) | 16 (with upgrade) | 16 (with upgrade) | 16 (with upgrade) | 16 (with upgrade) | 16 (with upgrade) | 16 (with upgrade) |
FAQs
for InfiniiVision 3000T X-Series Oscilloscopes
The 3000T X-Series is available in 100 MHz, 200 MHz, 350 MHz, 500 MHz, and 1 GHz bandwidth versions. A practical selection rule is to choose an oscilloscope with bandwidth significantly above your highest signal frequency so waveform details are captured accurately. Because this platform is upgradeable, users can also start with a lower bandwidth model and expand later if project requirements change.
Yes. Every model can be upgraded to mixed-signal oscilloscope (MSO) operation with 16 digital channels by adding the required logic probe and software license. This allows digital and analogue activity to be captured and time-aligned on the same display, which is especially useful for embedded systems, buses, and control electronics.
With the relevant software options installed, the oscilloscopes can decode and trigger on common serial buses including I²C, SPI, UART/RS-232, CAN, and LIN. Decoded data is displayed in a readable format alongside the waveform, simplifying troubleshooting of embedded communications.
A very high waveform update rate increases the probability of catching sporadic glitches, rare anomalies, and intermittent faults that slower oscilloscopes may not display. It also improves responsiveness during live debugging, helping engineers see signal behaviour changes more quickly as they adjust circuits, settings, or probes.
The 3000T X-Series can include an optional 20 MHz WaveGen function generator for signal stimulation and provides a built-in digital voltmeter and frequency counter for convenient bench measurements. The platform also supports automated measurements, math functions, FFT analysis, and mask testing to streamline verification and debug workflows.
No. The oscilloscopes combine an 8.5-inch capacitive touchscreen with traditional front-panel knobs and buttons. Users can choose whichever control method suits the task best, whether that means gesture-based navigation, tactile adjustment, or a mix of both.
Yes. The platform is designed to be upgradeable through software licenses and optional accessories. Users can increase bandwidth within the series limits and add features such as MSO capability, protocol decoding, or WaveGen functionality over time, helping extend the value of the instrument.
