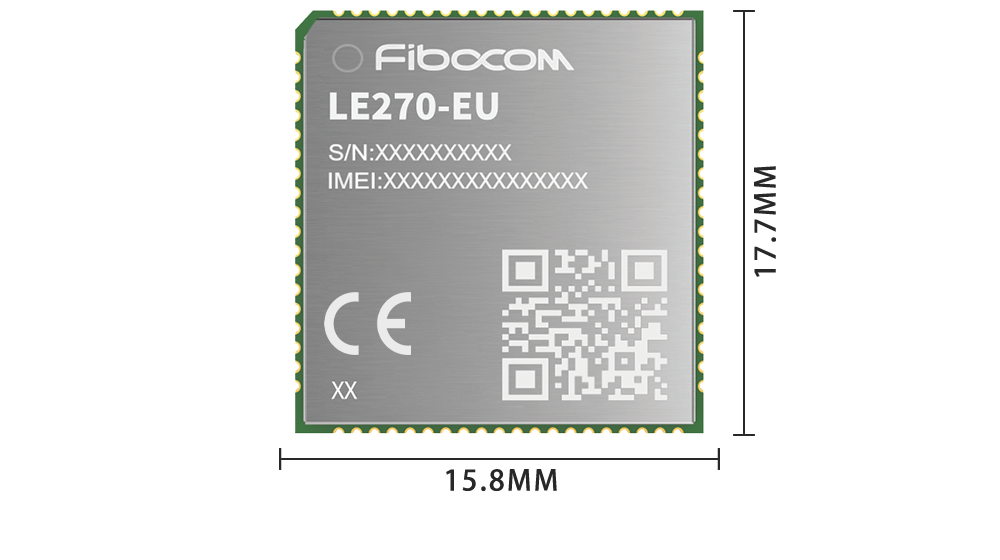

LE270 4G Cat-1bis LGA module
- Technology
- 4G modules
- Partner
- Fibocom
The LE270-EU is a high-performance LTE Cat-1 bis wireless communication module, utilising LCC+LGA packaging with dimensions of 17.7 x 15.8 x 2.4mm. It supports 4G frequency bands of local operators. LE270-EU is designed with ultimate power consumption, significantly optimising both connected and DRX standby power consumption, better suiting the demands of industries such as trackers, IPCs, shared devices, meters, smoke alarms, etc.
LE270-EU integrates multiple general interfaces and supports various drivers and software functionalities (such as Windows/Linux and other mainstream operating systems), meeting various application demands in the IoT industry.
LE270-EU targets the low to mid-rate IoT market, covering various application scenarios including trackers, vehicle-mounted devices, general payment systems, sharing platforms, industrial interconnections etc., providing perfect wireless experiences for customers in these fields.
Range features
An overview of what’s in the range
- Compact design – LCC+LGA packaging (17.7×15.8×2.4mm) for flexible integration
- LTE Cat-1 bis support – Enables reliable low to mid-rate IoT connectivity
- Broad compatibility– Supports 4G frequency bands of local operators.
- Ultra-low power consumption – Optimised for connected and DRX standby modes.
- Multiple interfaces – Integrates UART, USB, I2C, SPI, and GPIO for versatile connectivity
- OS support – Compatible with Windows, Linux, and other mainstream operating systems
- IoT-focused – Designed for tracking, industrial automation, smart metering, and more
| Category | Specification |
|---|---|
Package | LCC+LGA |
Dimension (mm) | 17.7×15.8×2.4 |
LTE FDD | B1/3/5/7/8/20/28 |
LTE TDD | B38/40/41 |
WCDMA | NA |
TD-SCDMA | NA |
EVDO | NA |
CDMA2000 1X | NA |
GSM/GPRS/EDGE | NA |
Power supply | 3.4V ~ 4.5V (Typical 3.8V) |
Operating temp | -35°C ~ +75°C |
