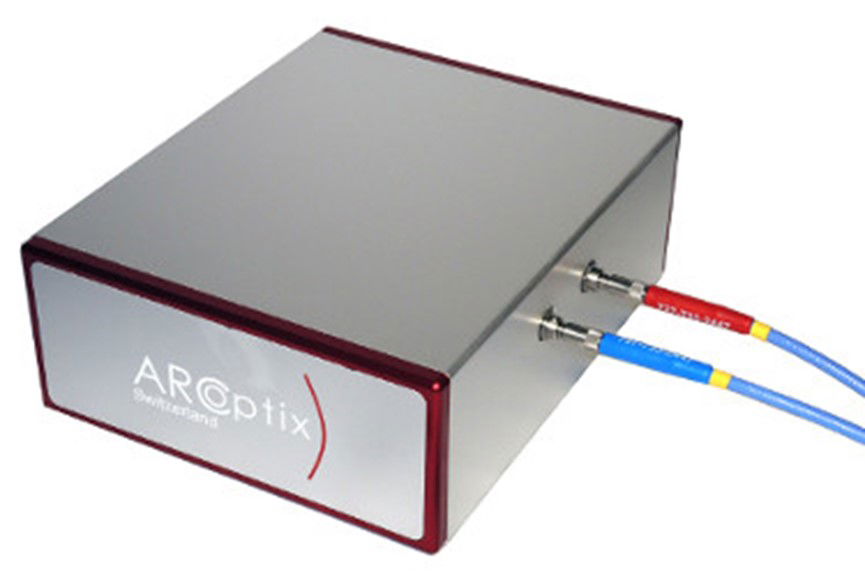

The ARCspectro VIS-NIR-FIB (350-2600nm) and ARCspectro UV-VIS-NIR (200-2600nm) are ultra-broadband spectrometers that have been specifically developed for light guide -based applications. They are universally applicable and can be used for emission, absorption, reflection and transmission measurements with the appropriate accessories.

VIS-NIR-FIB Broadband Spectrometer

How it works

The system includes an Arcoptix FT-NIR Fourier transform scanning spectrometer for the NIR range 0.9-2.6 and a grating spectrometer for the UV-VIS range. Both devices are integrated into a single portable housing unit with two separate SMA inputs for the UV-VIS and NIR ranges, matching the transmission ranges of high-OH and low-OH fibers. The software supplied with the spectrometer automatically merges the spectra generated by the two spectrometers.

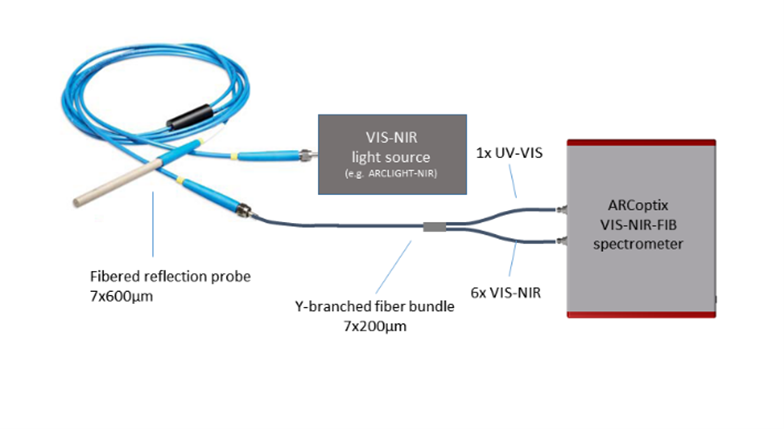

The illustrations show an example of a transmission/absorption measurement and a reflection measurement.

The accessories shown, or other accessories such as integrating spheres, can also be offered.

Software

The ARCspectro VIS-NIR-FIB (350-2600nm) comes with a free Windows compatible program. The software automatically merges the spectral data of the VIS and NIR spectrometers.

The software package allows the user to:

Configuring the hardware measurement parameters Display of spectral measurement results in real-time Set the reference spectra (white, dark) and choose between raw spectra, transmission, or absorption modes Common functions such as saving, opening, zooming, scaling Store data from combined VIS-NIR spectra or individual VIS and NIR spectra.
