Arcoptix develops and manufactures miniature FTIR spectrometer for the range of:

  • 2-6 microns –>1700-5000 cm-1
  • 1.5-8.5microns –> 1200-6700 cm-1
  • 2-12microns –> 830-5000 cm-1
FTIR – Spectrometer, Arcspectro FTIR Rocket

Functionality

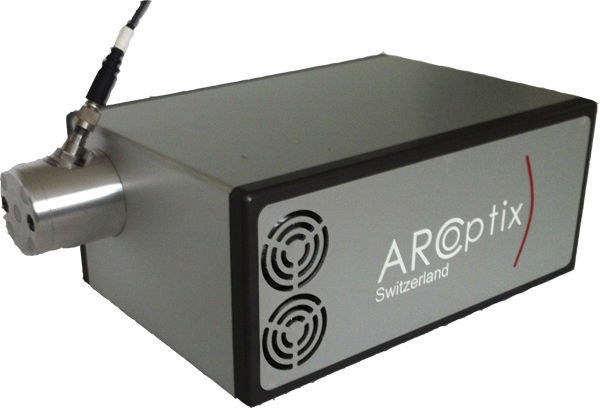

The FT-IR Rocket is a robust, small, and powerful FT-IR spectrometer with a compact footprint. The FT-IR Rocket can be used with SMA905 fibers or in free-beam mode thanks to its removable fiber coupler.

The permanently aligned interferometer of the FTIR spectrometer and its solid-state reference laser ensure that the highest accuracy is achieved with every scan. The system has high stability in both wavelength and intensity scales, making it an ideal tool for highly reproducible chemometric analyses.

The FT Rocket infrared spectrometer is offered in 3 standard versions:

  • FT-MIR 2 – 6μm,
  • FT-MIR 1.5 – 8.5μm
  • FT-IR 2 – 12μm.

All offer a resolution of 4 cm⁻¹. Optional high-resolution versions with a resolution of 1 cm⁻¹ and 0.5 cm⁻¹ are also available.

The main differences of the FTIR spectrometers lie in the beam splitter material (CaF2 or ZnSe) and the sensitivity of the detector: the narrower-band detector 2-6μm has significantly better sensitivity than longer wavelength versions.

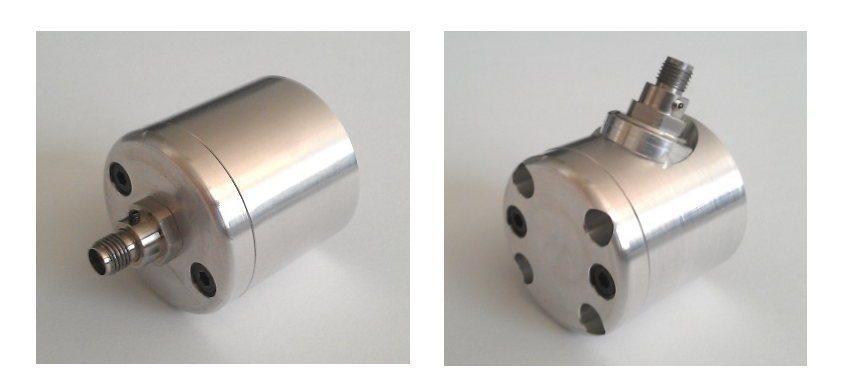

Removable fiber coupler for operating the spectrometer with SMA905 optical fibers or in free-beam mode (Aperture Ø: 12.7mm – Acceptance angle: 3.2°)

Downloads

for FTIR – Spectrometer, Arcspectro FTIR Rocket

pdf
ARCoptix FT-IR Rocket – Overview Brochure
Download
pdf
ARCoptix Fourier tranform spectromter tutorial
Download

What’s in this range?

All the variants in the range and a comparison of what they offer

ModelFT-MIR 2-6FT-MIR 1.5-8.5FT-IR 2-12

Beam-splitter material

CaF2

CaF2

ZnSe

Wavelength

2… 6 µm

1,5… 8,5 µm

2… 12 µm

Detector type

D- [cm Hz1/2W-1]

MCT (2-TE cooled)

1×1011

MCT (4-TE cooled)

8×109

MCT (4-TE cooled)

2.5×109

Signal-to-noise ratio (8cm-1 resolution and 1 min scan time)

1:60’000

1:40’000

1:40’000

Common specifications

Resolution

4 and 2 cm-1 (optional 1 and 0.5)

Wave count repeatability

<10 ppm

Scan frequency

1 Spectrum/ Second

Reference laser

Temperature-stabilised Solid-state laser @850nm

Free-beam aperture

Aperture diameter: 12.7mm

Removable fibre coupler

SMA 905 fibre core Ø: up to 1 mm
