Molypermalloy Powder Cores
- Technology
- Powder cores
- Partner
- Magnetics Inc.

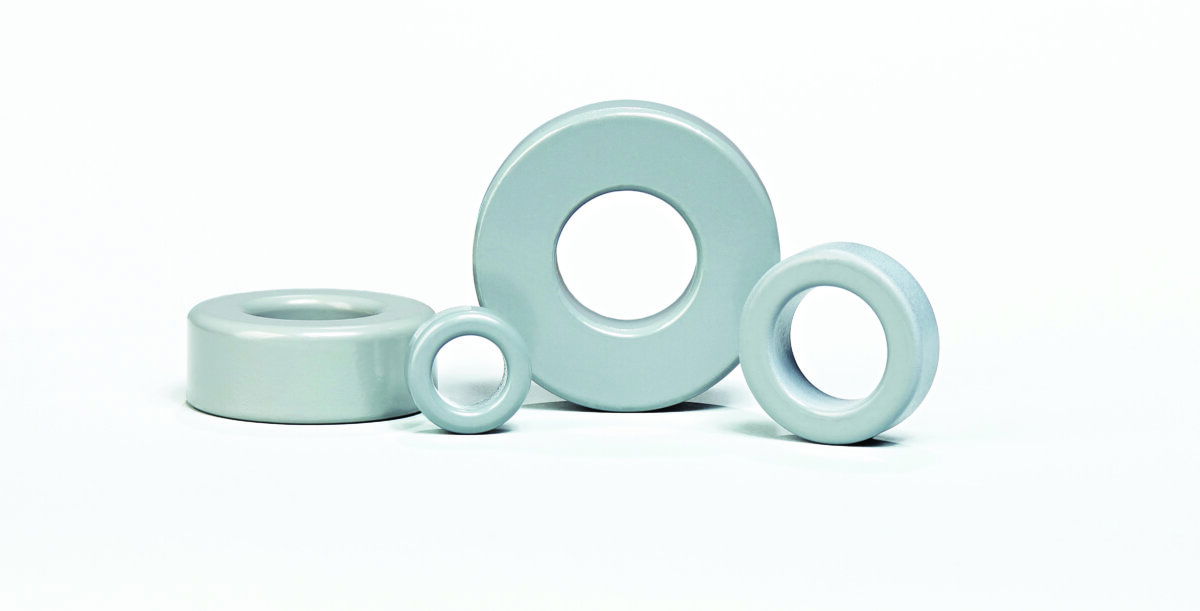

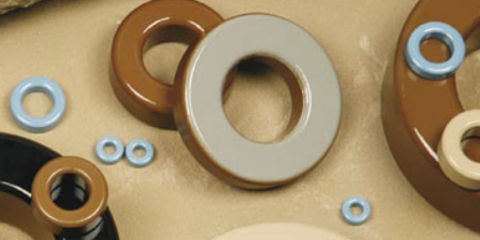

Molypermalloy (MPP) cores feature outstanding magnetic characteristics and offer the lowest core losses of any powder core material. MPP cores are the perfect choice where high Q and high inductance stability under adverse magnetic and environmental conditions are needed. Applications for MPP cores include; flyback transformers, buck/boost and power factor correction (PFC), inductors, in-line noise filters, high Q filters, and resonant circuits.
Range features
A high level overview of what this range offers
- High resistivity
- Low hysteresis
- Eddy current losses
- Excellent inductance stability after high DC magnetisation or under high DC bias conditions
- Minimal inductance shift up to 2000 gausses under AC conditions
- Distributed air gap cores made from 79% nickel, 17% iron, and 4% molybdenum alloy powder
- Super low losses NiFeMo alloy
- High range of available permeabilities: µ=14 to µ=550
- Wide range of toroidal cores available (outer diameter 4 – 165mm)
- Super low core loss
- Very high Curie temperature
- A small shift in permeability with temperature
- A small shift in saturation with temperature
- Reversibility of temperature effects
- Resistance to thermal shock
- Resistance to mechanical shock and strain
- Temperature stabilisation for special applications
What’s in this range?
All the variants in the range and a comparison of what they offer
| Shape | Sizes (mm) | Permeabilities | Le path length (mm) | Ae cross section (mm2) | Ve volume (mm3) |
|---|---|---|---|---|---|
Toroid | 4.19 x 1.27 x 2.17 – 134 x 77.2 x 26.8 | 14, 26, 60, 125, 147, 160, 173, 200, 300, 550 | 8.06 – 324 | 1.30 – 678 | 10.48 – 220,000 |
MPP-THINZ | 3.12 x 1.70 x 0.89 – 8.0 x 3.84 x 0.89 | 125, 160, 200, 250 | 7.04 – 17.89 | 0.40 – 1.45 | 2.8 – 25.9 |
