KoolMµ Powder Cores
- Technology
- Powder cores
- Partner
- Magnetics Inc.
Kool Mµ (commonly referred to as Sendust) is a material offering low loss and relatively high saturation level (1.0T) that makes it excellent for use in any kind of storage inductor for example in switched-mode power supplies, power factor correction circuits (PFC), and flyback transformers.
The near-zero magnetostriction makes Kool Mµ ideal for eliminating audible frequency noise in in-line noise filters and inductors.
Range features
A high level overview of what this range offers
- FeSiAl alloy powder core
- Available permeabilities: 14 – 125
- Low core losses

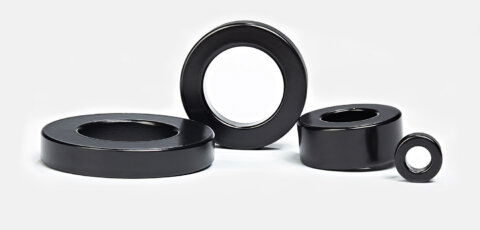

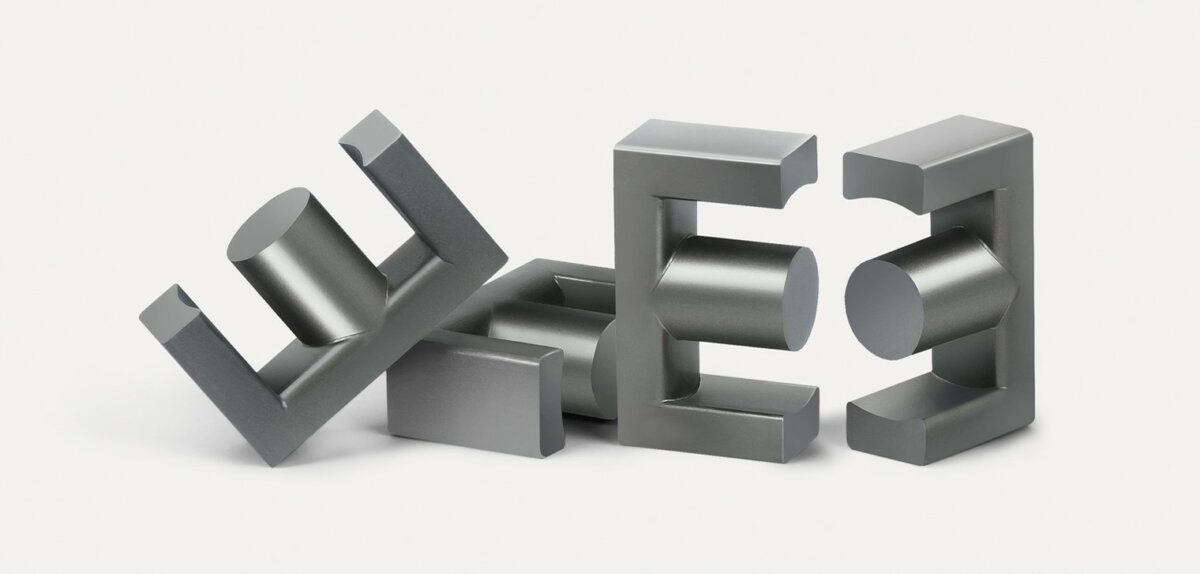

- Available shapes: toroids, E, U, EQ, LP, blocks, cylinders, and segments
- Black coating colour
- Low cost material
- Saturation flux density: 1.0T
- Curie temperature: 500°C
- Operating temperature range: -55°C to +200°C
What’s in this range?
All the variants in the range and a comparison of what they offer
| Shape | Sizes (mm) | Permeabilities | Le path length(mm) | Ae cross section (mm2) | Ve volume (mm3) |
|---|---|---|---|---|---|
Toroid | 4.20 x 1.27 x 2.16 – 166.5 x 101.0 x 33.15 | 14, 19, 26, 40, 60, 75, 90, 125 | 8.06 – 412 | 1.33 – 987 | 10.5 – 407,000 |
E-core | 19.6 x 7.9 x 4.93 – 162.5 x 37.5 x 40.9 | 14, 26, 40, 60, 90 | 40.1 – 273 | 22.8 – 778 | 914 – 212,000 |
U-cores | 31.8 x 10.9 x 12.5 – 81 x 37.5 x 23.4 | 26, 40, 60, 90 | 65.6 – 273 | 101 – 354 | 6,620 – 83,898 |
Blocks | 47.9 x 41.5 x 27.5 – 95.0 x 41.0 x 27.5 | 26, 40, 60, 90 | – | – | 23,000 – 107,200 |
EQ | 26.5 x 7.0 x 19.0 – 50.0 x 25.0 x 32.0 | 26, 40, 60 | 42.3 – 133.4 | 119.8 – 314.1 | – |
LP | 23.4 x 8.7 x 14.0 – 42.0 x 15.8 x 25.0 | 26, 40, 60 | 49.1 – 90.1 | 67.0 – 206.0 | – |
EER | 25.5 x 11.0 x 7.5 – 40.0 x 22.4 x 13.3 | 26, 40, 60 | 57.8 – 111.3 | 45.0 – 149.1 | 2,600 – 16,000 |
