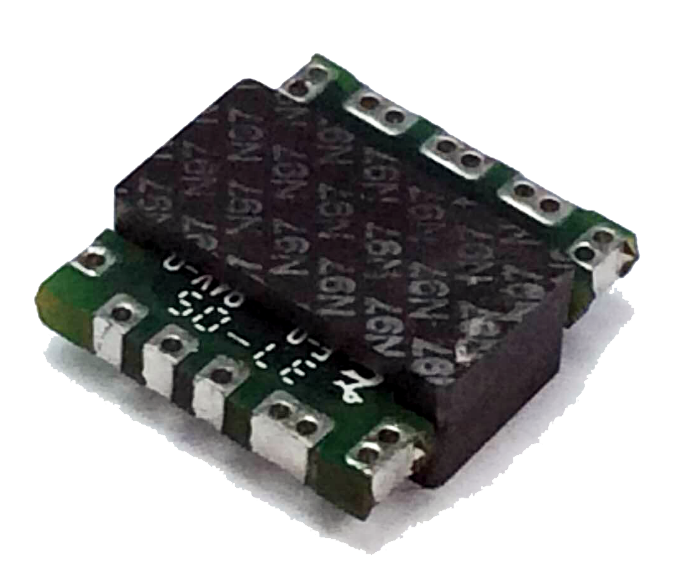

Planar switch-mode transformers

Planar transformers are suitable in applications where designers need compactness and very low height over printed circuit boards (PCB), typically DC/DC converter in brick size.

Windings are designed on multi-layer PCB which are arranged in panels and manufactured in the highest volume practicable allowing exact repeatability of leakage inductance and capacitance.

Core flat shape offers a wide surface to dissipate heat generated internally to the component. It is also possible to optimise core cross-section to reduce power losses.

Planar components are easily embedded into the PCB of the entire application, reducing manufacturing time and improving automation.

Planar switch-mode transformers

Range features

A high level overview of what this range offers

  • Height: low profile
  • Low leakage inductance
  • Repeatable leakage inductance, capacitance
  • Volumetric efficiency (small size)
  • Low turns count improves Cu loss
  • Optimised core cross-section lowers core loss
  • Large core surface promotes heat transfer
  • PCB construction yields the lowest Cu loss
  • AC resistance and proximity Cu loss minimised
  • Opportunity to embed planar into PCB module
  • A wide base of standard products, reducing tooling needed

Downloads

for Planar switch-mode transformers

pdf
Champs planar ACF AC-offline summary
Download
pdf
Champs planar ACF DC-DC summary
Download
pdf
Champs planar DC-DC standard series
Download

What’s in this range?

All the variants in the range and a comparison of what they offer

SeriesVin rangeRef. ICsTopologyApplication

168F1

9 – 36

LT8302 | LT8304

BCM flyback

POE | Bias

20F1

9 – 72

LT3748 | LT8302 | LT8304

BCM flyback

POE | DC/DC

20N1

9 – 72

LT8304 | LT3753

Active clamp forward | synchronous rectifier

DC/DC

40R2

9 – 72

LT1952

DC/DC

G45R2

9 – 72

LT1952 | LT3765/66

Forward active clamp

Telecom DC/DC

G45AH2

18 – 72

LT1952 | LT3753

Forward active clamp

DC/DC

P20F2

9 – 72

LT3748 | LT8309

No-Opto isolated BCM flyback

PoE | DC/DC

P26R6

38 – 430

LT3752 | LT8311

Active clamp forward and wide input range

AC offline

80R2

150 – 420

DC1929A

Dual output active clamp forward

Offline

P26F6

85 – 375

LT3798

BCM flyback

PFC offline

CH13

60 – 400

LT3752-1 | LT8311

Flyback

Wide Vin offline

PL58

Forward w/ active or resonant reset | PSFB | LLC | asymmetrical half-bridge

Offline

55R2

Forward | PSFB
