Zip-Cord Cables and Assemblies
- Technology
- Fibre optic cables, connectors and assemblies
- Partner
- Lightera

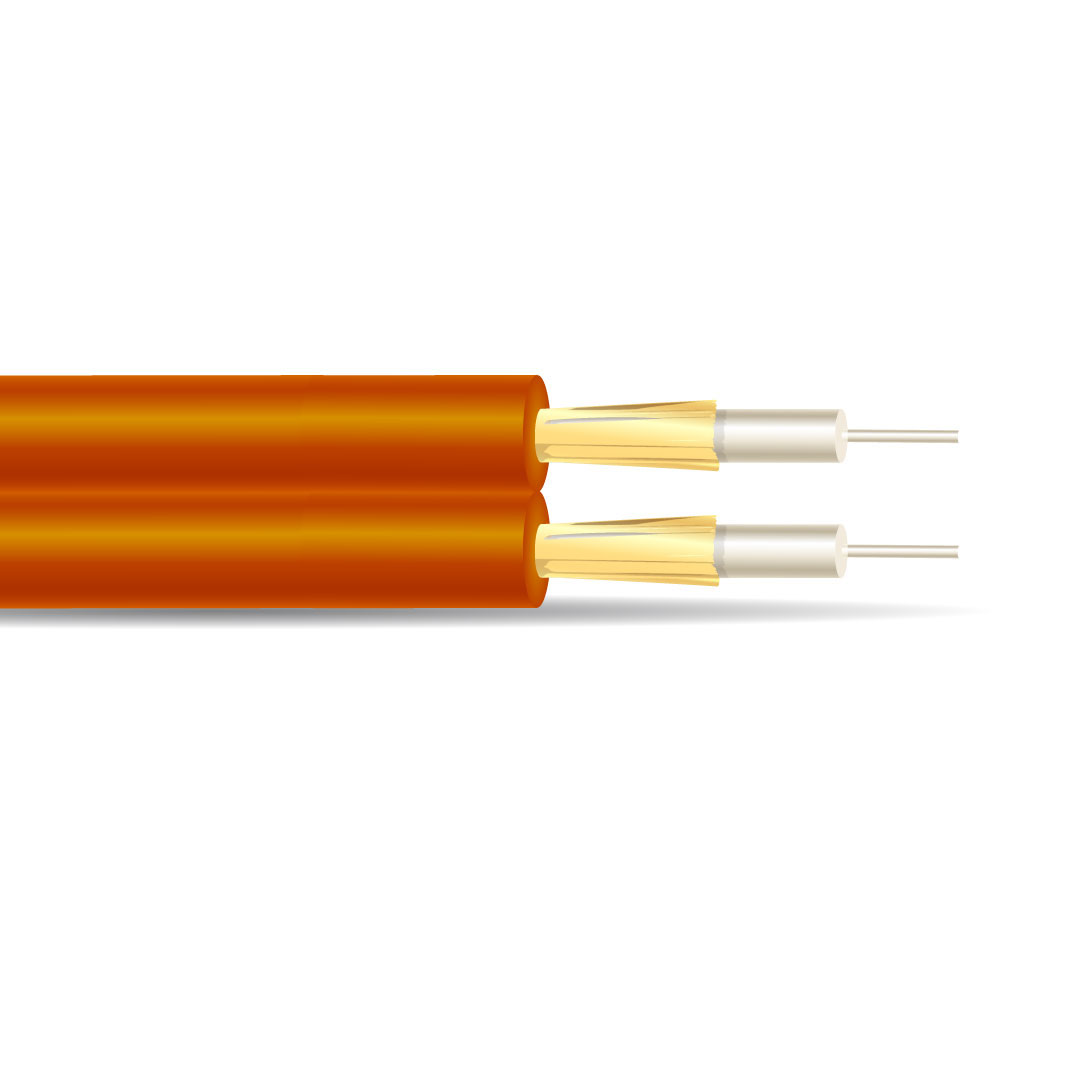

OFS zip-cord cables are available with both 2.2 mm and 2.5 mm sub-unit cable outer diameters with either HCS/GiHCS subcomponent fibres allowing for crimp and cleave connectorisation to V-Pin, SMA, ST, F07, and LC connectors.
2.2 mm V-Pin (Versatile Link) compatible cables are an ideal alternative to Plastic Optical Fibre (POF) offering high performance, greater link length, and better mechanical properties.
Terminated assemblies using zip-cord cables are fully customisable based on individual requirements.
Zip-cord cables are typically aramid-free allowing quick and simple field connectorisation.
Range features
A high level overview of what this range offers
- Normal operating temperature range of -20 to 80°C with a wide temperature range version for -20 to 105°C
- Customisable options include choice of subcomponent fibres, jacket colours and print legend
- Also available as a simplex cable or in breakout construction with up to 18 sub-units
- UL-1666 (Riser) and NFPA-262 (Plenum) flammability ratings available
- Typical applications for zip-cord cables with LSZH outer jacket include nuclear power plants, offshore marine platforms, shipboard systems, wind turbines
- Applications for zip-cord cables with PVC outer jacket include factory automation, industrial data communication, laser power delivery, plenum, and riser installations
- Special versions that include aramid yarn strength elements for demanding applications where increased tensile load is necessary
What’s in this range?
All the variants in the range and a comparison of what they offer
| Description | Fiber core diameter (µm) | Fiber type | Sub-Unit diameter (mm) | Outer jacket material/colour | Crimp & Cleave | Install location | Part number |
|---|---|---|---|---|---|---|---|
200-LSZH-HCS | 200 | MM SI HCS | 2.2 | LSZH / Orange | V-Pin / LC | Indoor / Riser | C21059 |
200-LSZH-HCS | 200 | MM SI HCS | 2.5 | LSZH / Orange | SMA / ST | Indoor / Riser | C21051 |
62.5/200-LSZH-GiHCS | 62.5 | MM GiHCS | 2.2 | LSZH / Orange | V-Pin / LC | Indoor / Riser | C26135 |
50/200-LSZH-GiHCS | 50 | MM GiHCS | 2.2 | LSZH / Orange | V-Pin / LC | Indoor / Riser | C26136 |
50/200-LSZH-GiHCS-2.5 | 50 | MM GiHCS | 2.5 | LSZH / Orange | ST | Indoor / Riser | C26642 |
62.5/200-PVC-GiHCS-2.5 | 62.5 | MM GiHCS | 2.5 | LSZH / Orange | ST | Indoor / Riser | C26643 |
62.5/200-PVC-GiHCS | 62.5 | MM GiHCS | 2.5 | PVC / Orange | SMA / ST | Indoor / Riser | C17759 |
50/200-PVC-GiHCS | 50 | MM GiHCS | 2.5 | PVC / Orange | SMA / ST | Indoor / Riser | C19643 |
200-PVC-HCS-2.5 | 200 | MM SI HCS | 2.5 | PVC / Orange (with Aramid) | SMA / ST | Indoor / Riser | AC01282-10 |
200-PVC-HCS-2.2 | 200 | MM SI HCS | 2.2 | PVC / Orange (with Aramid) | F07 / SMA / ST | Indoor / 105°C | AC02581-10 |
200-PVC-HCS-2.2 | 200 | MM SI HCS | 2.2 | PVC / Blue | V-Pin / LC | Indoor / Riser | BC04307 |
200-PVC-HCS-2.2-P | 200 | MM SI HCS | 2.2 | PVC / Blue | V-Pin / LC | Plenum | BC04340 |
200-PVC-HCS-2.2-PA | 200 | MM SI HCS | 2.2 | PVC / Blue (with Aramid) | V-Pin / LC | Plenum | BC04371-10-BL |
