Laser safety
Partner
Laservision

For maintenance on lasers, dividing spaces in a room or experiments, or securing the space around your lasers, Laservision has a range of solutions in accordance with European standards. They offer the following solutions:

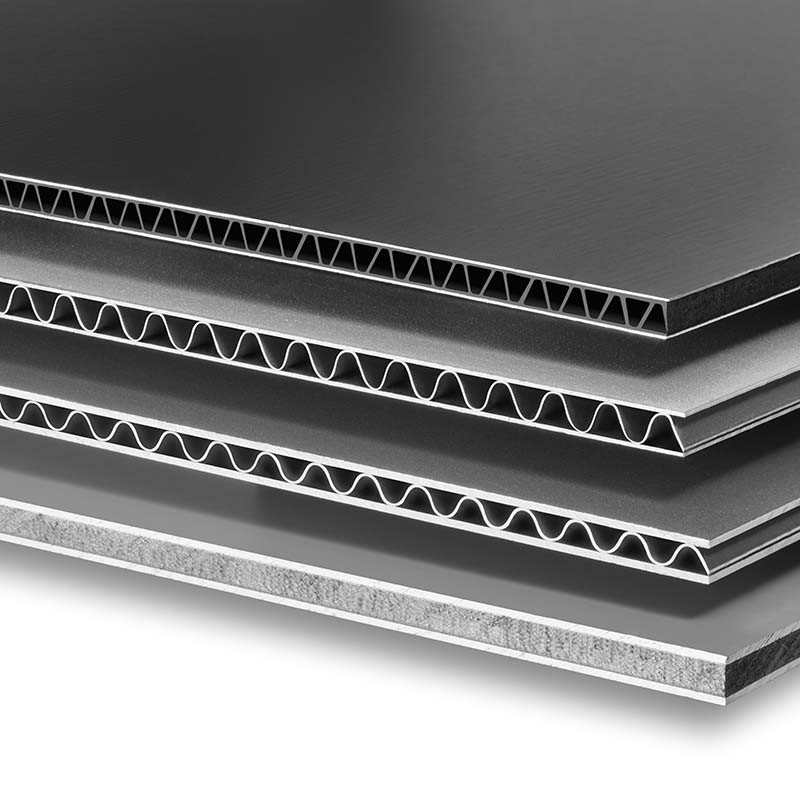

Rigid E25 “German Award Design 2021”: modular barrier system aluminium sandwich structure with coated aluminium cover plates.

Curtains shelter NG or light: flexible, coated silicate fabric to mount on ceiling rails or frames – roll-up (free-standing).

Table-top-system for optical tables: based on the M7P06 panel, with maximum flexibility of the structure with three variants.

Customer-specific solutions are available on request.

Large Area Laser Safety Protection

Range features

A high level overview of what this range offers

  • E25 barriers wall
  • Flexible curtains shelter NG
  • Flexible curtains shelter light
  • Roll-up curtains
  • TTS table-top-system for optical tables

What’s in this range?

All the variants in the range and a comparison of what they offer

ModelCertificationsDimensionsSpecifications

E25 modular barrier system wall M7P06

EN 60825-4

Segment (W x H) 1257mm x 2100mm

Modular construction from 2 to 9 segments

Colour: black

Space-saving storage

Delivered ready to use

Lockable wheels

360° flex joint: safety in any position

Option for visibility: plastic windows

Standard size (W x H) 1219mm x 915mm with a maximum thickness of 6mm

Shelter NG BC1 high-power curtain

EN 60825-4tested with EN 12254

8 standard sizes:

Width: 900mm and 1800mm

Height: 2000mm, 2500mm, 3000mm, 3500mm

Panels connected with Velcro strips for endless dimensions

Frames and rail systems for ceilings

Eyelets on the top

Protection on both sides

Shelter light BC3 light-power curtain

EN 12254

8 standard sizes:

Width: 900mm and 1800mm

Height: 2000mm, 2500mm, 3000mm, 3500mm

Panels connected with Velcro strips for endless dimensions

Standard frames and rails systems

Eyelets on the top

Protection on one side

Roll-up BC3

EN 12254

Lightweight frame and carrying case

Standalone (W x H): 900mm x 2000mm

Roll-up connector (W x H): 450mm x 2000mm

Roll-up set: 3 roll-ups, and 2 connectors included

Protection on one side

Table-top-system

EN 60825-4

3 variants:

Basic system

Foldable system

Foldable-edge system

Magnetic or screw posts

Based on the E25 system
