T1020 Infrared R&D Camera
- Technology
- Infrared R&D cameras
- Partner
- Teledyne FLIR

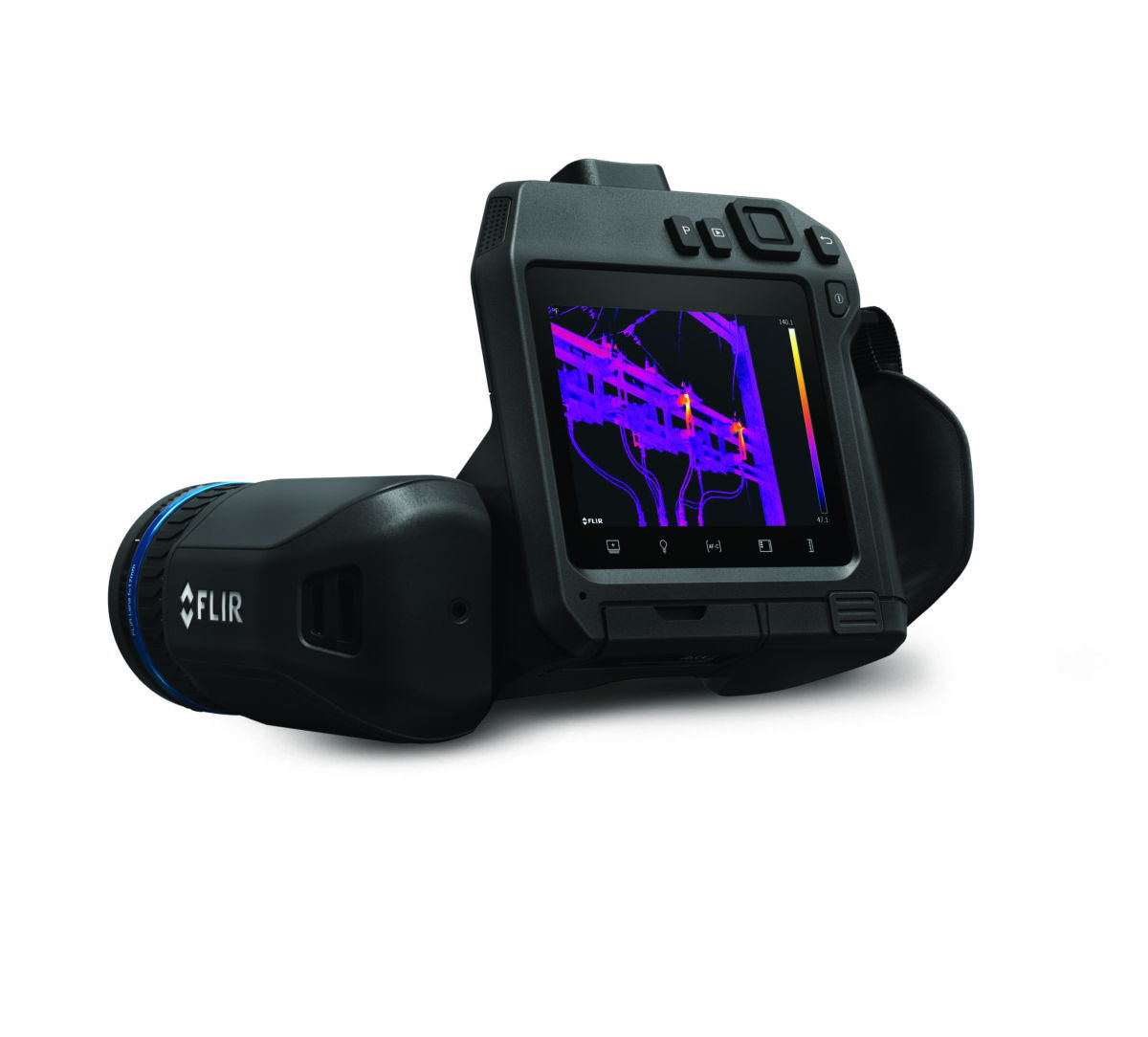

The T1020 is designed for professional users who require the best and latest technology. The handheld thermal imaging camera combines excellent ergonomics and a large set of features at a resolution of 1024 x 768 pixels.
There are a wide range of lenses available with Teledyne FLIR’s T1020 to ensure that there is a suitable lens for every application. In addition to the horizontal image angles of 7° to 45°, a macro lens can also be used. The macro lens allows a resolution of 51µm, so you can resolve small structures in the laboratory.
Range features
A high level overview of what this range offers
- Detector resolution 1024 x 768, with UltraMax ® 3.1 megapixel
- Lenses available with 7°, 12°, 28° and 45° horizontal viewing angle
- Macro lens with 51µm resolution available
- Temperature measuring ranges from -40°C to +2,000°C
- Programmable buttons for individual use of the thermal imaging camera
- Spectral range 7.5µm – 14µm (long-wave infrared, LWIR)
- Thermal sensitivity < 20mK at 30°C
- Frame rate 30Hz
- Optional high-speed mode up to 240Hz with reduced resolution available
- High accuracy up to ± 1°C (depending on measuring range)
