Introducing the Adlink ROScube robotic real time controller family powered by NVIDIA®, and Intel® x86 CPUs, featuring integrated or plug in NVIDIA GPUs with deep learning accelerators, including GMSL2 camera connectors for advanced robotic system integration.

ROScube supports NVIDIA JetPack SDK, Intel® OpenVino, and Adlink’s Neuron SDK. It is specifically suited for robotic applications demanding high-AI computing with minimal power consumption. The range is complemented with both a MINI-ITX motherboard, SMARC small form factor development platform and robot development demo kit.

ROSCube Embedded Robotics Controller

Range features

A high level overview of what this range offers

  • Embedded real time robotic controller
  • NVIDIA and Intel® options
  • Jetson/Xavier GPU support
  • CAN and wireless support
  • CMSL2 camera connectors
  • Xeon/Core I series support
  • Comprehensive I/O
  • Support for NVIDIA jetpack SDK
  • Robust design
  • Rapid development kit options

Downloads

for ROSCube Embedded Robotics Controller

pdf
Adlink ROSCube Brochure
Download

What’s in this range?

All the variants in the range and a comparison of what they offer

ModelCPURAMKey featuresForm factor

ROSCube-X

Embedded robotic controller with NVIDIA® Jetson AGX Xavier™

32GB

Powerful AI computing for intelligent robotics development.

Excellent performance per W with power consumption as low as 30 W.

Ruggedised, secure connectivity with locking USB ports.

Comprehensive I/O for connecting a wide range of devices.

Time synchronisation with GMSL2 camera and IMU.

190(W) x 210(D) x 80(H) mm (7.48 x 8.27 x 3.149 inch) With Expansion: 322(W) x 210(D) x 80(H) mm (12.68 x 8.27 x 3.149 inch)

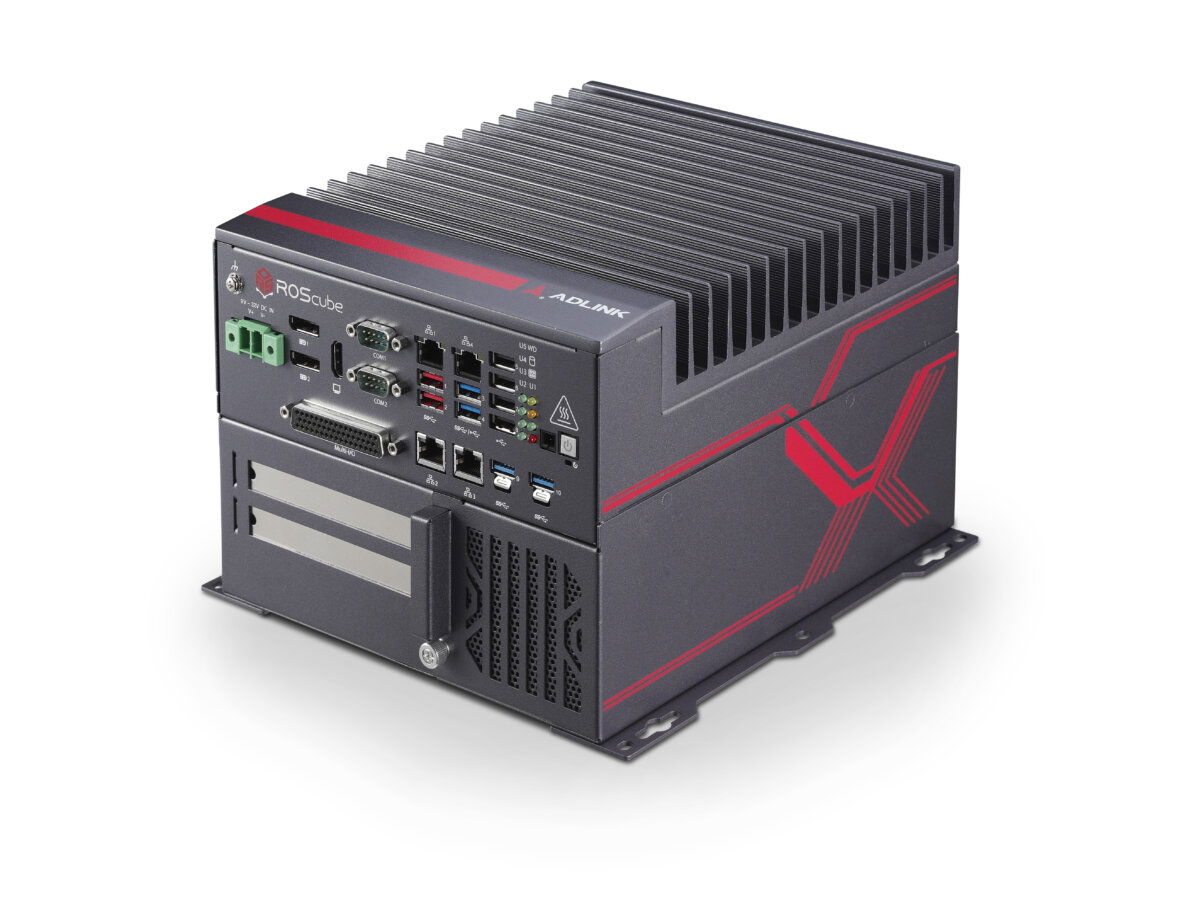

ROSCube-I

Embedded real-time robotic controller with Intel® Xeon®/Core™ processor

Up to 32GB

x86-64 mainstream architecture for ROS 2 development.

Comprehensive I/O for connecting a wide range of devices.

Ruggedised, secure connectivity with locking USB ports.

External PCIe Gen3 expansion with ruggedized cassette.

Integrated both hard and soft real-time mechanism.

w/o expansion box: 210(W) x 240(D) x 86(H) mm (8.267 x 9.449 x 3.385 inches) w/ expansion box: 210(W) x 240(D) x 165(H) mm (8.267 x 9.449 x 6.496 inches)

ROSCube-I Starter Kit

ROS starter kit with Intel® Core™ embedded motherboard and MXM graphics module

Up to 32GB

Compatible with ROS/ROS 2.

Rich I/O interface.

GPU accelerates AI computing.

ADLINK MXM graphics module support (type A/B, up to 120W)

197.72(W) x 167.32(L) mm (7.784” x 6.587 inches)

ROSCube-Pico

ROS and AI rapid development kit based on SMARC®

Up to 8GB

Compatible with Raspberry Pi 40-pin GPIO.

Rich ROS open source applications.

Compact size based on the SMARC form factor.

118(W) x 81.8(L) mm

Neuron Bot

Rapid robotic development and demo kit based on ROS/ROS 2Intel® Celeron® G3900TE

Up to 4GB

Integrated vision, control, AI and motion modules.

Designed for rapid robotic development.

Supported by powerful open source ROS libraries and packages.

260 x 270 x 260 mm (10.24 x 10.63 x10.24 inches)
