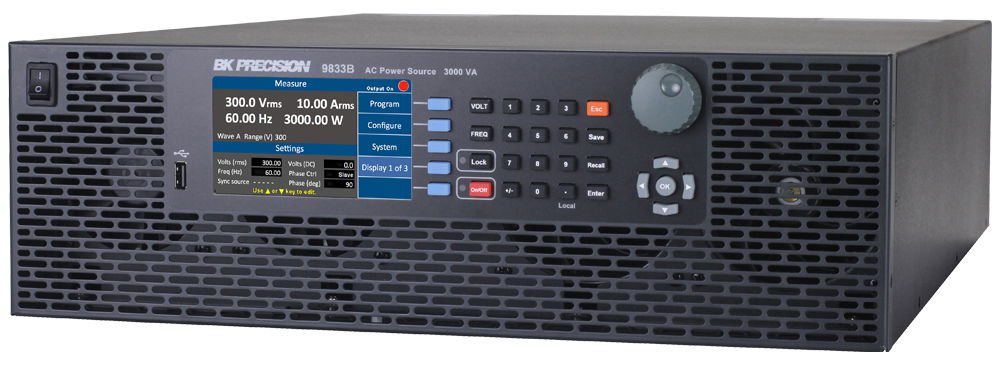

BK9832 and BK9833 AC-DC programmable AC sources

The 9830 series programmable AC power sources provide high performance and low total harmonic distortion in a 3U form factor. The addition of positive and negative DC offset voltages expands the AC capabilities to operate in DC and AC-DC output coupling modes.

8932B and 8933B: 3-phase power can be achieved by connecting 3 units of the same model in a master and slave configuration using the optional 3-phase sync adapters. The frequency range is adjustable from 45 to 600Hz in 3-phase mode.

The 980x-series is both a programmable AC source and measurement tool. These fully programmable linear AC sources deliver a maximum of 1500 VA through the universal line output terminals on the front and the output connector on the rear. The output can be varied from 0 to 300 V with 0.1 V programming resolution. The output frequency can also be adjusted from 45 Hz to 500 Hz with start and stop phase angle from 0 to 360 degrees.

For range details, please see the catalogue in the downloads section below.

BK9832 and BK9833 AC-DC programmable AC sources

Range features

A high level overview of what this range offers

  • Low total harmonic distortion meets the IEC 61000-3-2 standard
  • Comprehensive measurements Vrms, Arms, Vdc, +Apk, -Apk, inrush current, Hz, power factor, apparent power, reactive power, true power, and crest factor
  • Built-in standard waveforms sine, square, and clipped sine
  • 30 built-in THD waveforms
  • Amplifier mode with 1.2kHz bandwidth for generating user-defined arbitrary waveforms
  • Step, List, and Pulse modes for generating power line disturbance (PLD) simulations
  • List mode supports 10 user-defined programs with up to 100 programmable steps
  • Generate costum harmonic waveforms on a PC and download them to the instrument’s 5 non-volatile memory locations
  • Digital I/O port for external trigger, transient indication, failure status, remote inhibit, RS232, and analog output level programming interface
  • Comprehensive protection modes OVP, OCP, OPP, OTP, fan failure, output timer, and key lock
  • Standard USB (USBTMC-compliant), RS232, LAN, and GPIB remote interfaces

Downloads

for BK9832 and BK9833 AC-DC programmable AC sources

pdf
BK precision power supply guide
Download

What’s in this range?

All the variants in the range and a comparison of what they offer

ModelMaximum voltage AC (rms)Maximum voltage DC (rms)Maximum currentMaximum powerPhase-modeFrequency

9832

150V / 300V / auto

±212V / ±424V

20A (150V), 10A (300V)

2000VA

1

45 to 1200Hz

9832B

150V / 300V / auto

±212V / ±424V

20A (150V), 10A (300V)

2000VA

3

45 to 1200Hz

9833

150V / 300V / auto

±212V / ±424V

30A (150V), 15A (300V)

3000VA

1

45 to 1200Hz

9833B

150V / 300V / auto

±212V / ±424V

30A (150V), 15A (300V)

3000VA

3

45 to 1200Hz

9801

150V / 300V

3A (150V), 1,5A (300V)

300VA

1

45 to 500Hz

9803

150V / 300V

6A (150V), 3A (300V)

750VA

1

45 to 500Hz

9805

150V / 300V

12A (150V), 6A (300V)

1500VA

1

45 to 500Hz
