SE0X-LB LoRaWAN soil moisture sensor device

Technology
LoRa modules
Partner
Dragino

The Dragino SE0X-LB is a LoRaWAN Soil Moisture & EC Sensor designed for smart agriculture applications. It supports up to four sensor probes and is optimised for measuring soil moisture in saline-alkali and loamy soil types. Utilising Frequency Domain Reflectometry (FDR), it calculates soil moisture with compensation for temperature and electrical conductivity, ensuring accurate readings. Factory-calibrated for mineral soil, it delivers reliable performance in diverse environments.

This sensor measures soil moisture, temperature, and conductivity, wirelessly transmitting data to a LoRaWAN IoT server. Its LoRa technology enables ultra-long-range communication with minimal power consumption, offering strong interference immunity and reliable data transmission.

The SE0X-LB features BLE for easy configuration and supports over-the-air (OTA) updates, simplifying deployment and maintenance. Powered by an 8500mAh Li-SOCI2 battery, it is designed for long-term operation, lasting several years in the field.

Each unit comes preloaded with unique LoRaWAN registration keys, allowing seamless integration with a LoRaWAN server for automatic connection upon activation.

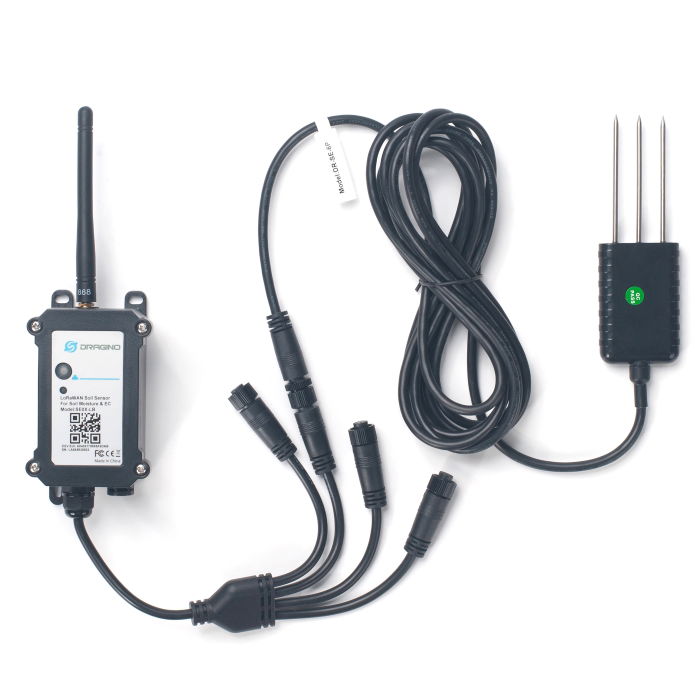

SE0X-LB LoRaWAN soil moisture sensor device

Range features

A high level overview of what this range offers

  • LoRaWAN 1.0.3 Class A: multi-band support (CN470, EU433, KR920, US915, EU868, AS923, AU915, IN865)
  • Sensors: 4 × external probes (3.5 m) for soil moisture, temperature, and conductivity
  • Connectivity: Bluetooth 5.1, LoRaWAN remote configuration, downlink commands, OTA firmware updates
  • Power: Ultra-low consumption, 8500 mAh Li/SOCl₂ battery
  • Enclosure: IP66 waterproof
  • Configuration options: AT commands, wireless configuration

Range features

A high level overview of what this range offers

CategorySpecification

Common DC characteristics

Supply voltage: Built-in battery , 2.5v ~ 3.6v

Operating temperature: -40 ~ 85°C

Soil moisture

Range: 0-100.00 V/V %

Resolution: 0.01 V/V %

Accuracy: ±3% (0-53%)V/V %, ±5% (>53%) V/V %

Measure method: FDR , with temperature & EC compensate

Soil temperature

Range: -40.00℃~85.00℃

Resolution: 0.01℃

Accuracy: -10℃~50℃:<0.3℃ ,All other: <0.6℃

Measure method: RTD, and calibrate

Soil conductivity

Range: 0-20000 uS/cm(25℃)(0-20.0EC)

Resolution: 1 uS/cm

Accuracy: 2%FS

Measure method: Conductivity , with temperature compensate

LoRa spec

Frequency range,  Band 1 (HF): 862 ~ 1020 Mhz

Max +22 dBm constant RF output vs.

RX sensitivity: down to -139 dBm.

Excellent blocking immunity

Battery

Li/SOCI2 un-chargeable battery

Capacity: 8500mAh

Self-discharge: <1% / Year @ 25°C

Max continuously current: 130mA

Max boost current: 2A, 1 second

Power consumption

Sleep mode: 5uA @ 3.3v

LoRa transmit mode: 125mA @ 20dBm, 82mA @ 14dBm
