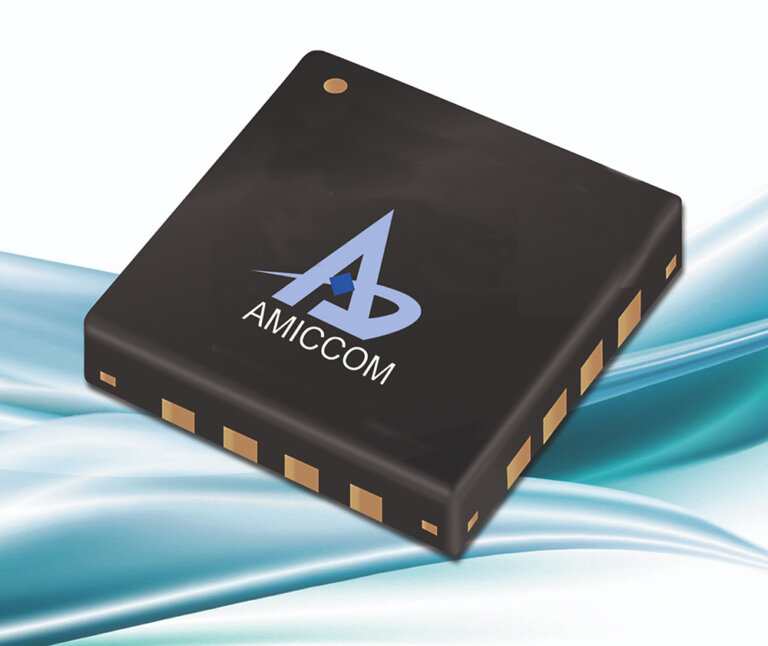

A6133M4 TRX-SoC, Cortex M4, +15dBm, 4Mbps, QFN-56

Technology
ISM proprietary radios and SoCs
Partner
Amiccom

The AMICCOM A6133M4 is a 5.8 GHz wireless System-on-Chip (SoC) that combines an ARM® Cortex®-M4F processor, 512 KB Flash, 80 KB SRAM, and a high-performance RF transceiver in a compact, power-efficient design. It delivers strong processing capability for real-time control, wireless data transmission, and sensor applications while minimising system cost and board space.

Supporting USB 2.0, UART, SPI, I²C, PWM, and GPIO interfaces, the A6133M4 offers flexible connectivity for embedded and IoT systems. Its integrated 5.8 GHz transceiver provides low-latency, high-throughput communication optimised for short-range, low-power wireless links.

Housed in a 7 × 7 mm QFN56 package, the A6133M4 is ideal for compact, battery-powered devices such as wireless sensors, controllers, industrial modules, and consumer electronics, where performance, efficiency, and integration are key.

A6133M4 TRX-SoC, Cortex M4, +15dBm, 4Mbps, QFN-56
IntroFeaturesContact

Range features

A high level overview of what this range offers

  • Core – ARM® Cortex®-M4F CPU (up to 48 MHz)
  • Memory -512 KB Flash, 80 KB SRAM
  • Wireless – 5.8 GHz ISM band transceiver with PA/LNA, high data rate, low latency
  • Interfaces – USB 2.0 FS, UART, SPI, I²C, PWM, ADC, GPIO
  • Power – 1.8 V–3.6 V operation, integrated DC-DC/LDO, multiple low-power modes
  • Package – QFN56 (7 × 7 mm), –40 °C to +85 °C, RoHS compliant
  • Applications – Wireless sensors, controllers, automation, consumer and IoT devices
