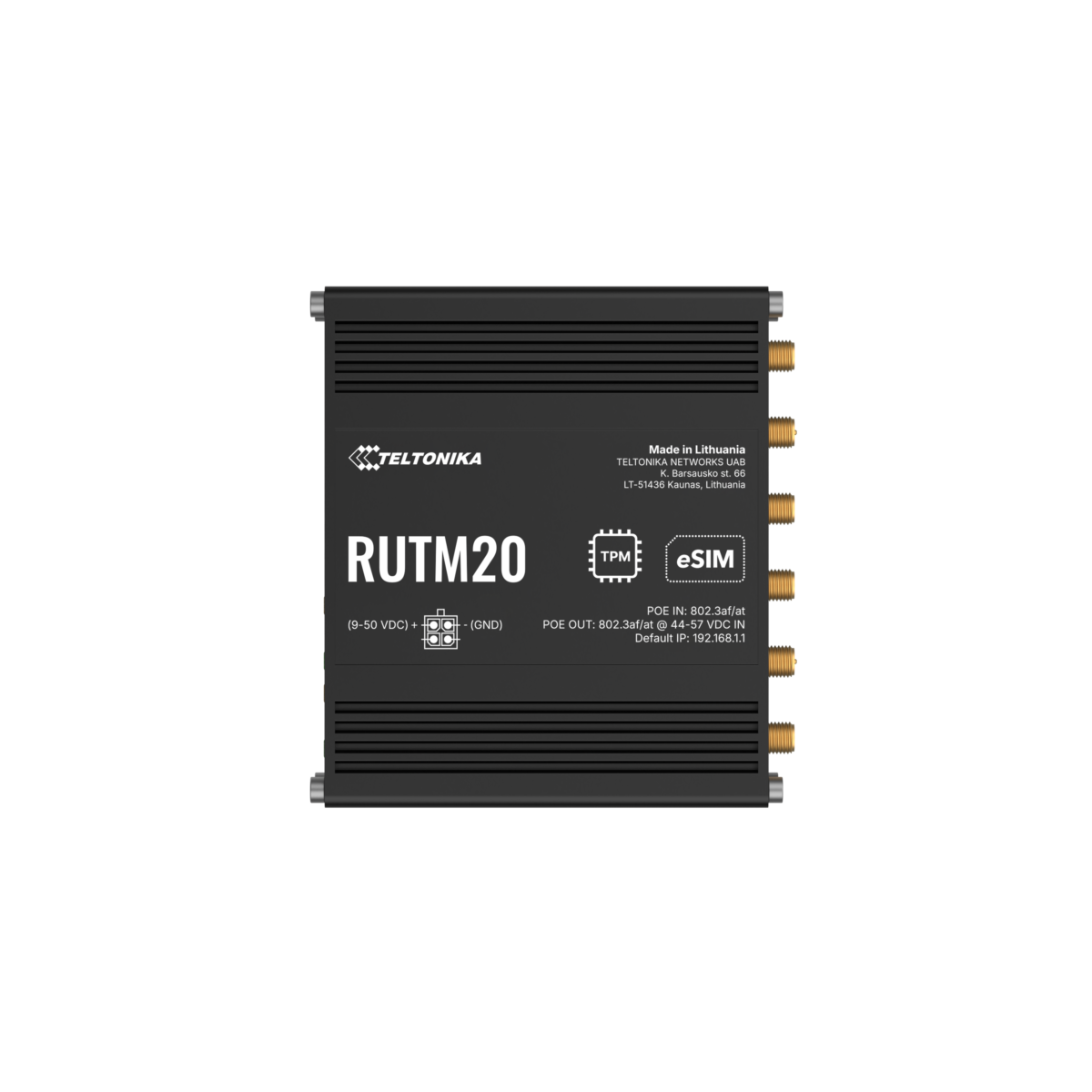

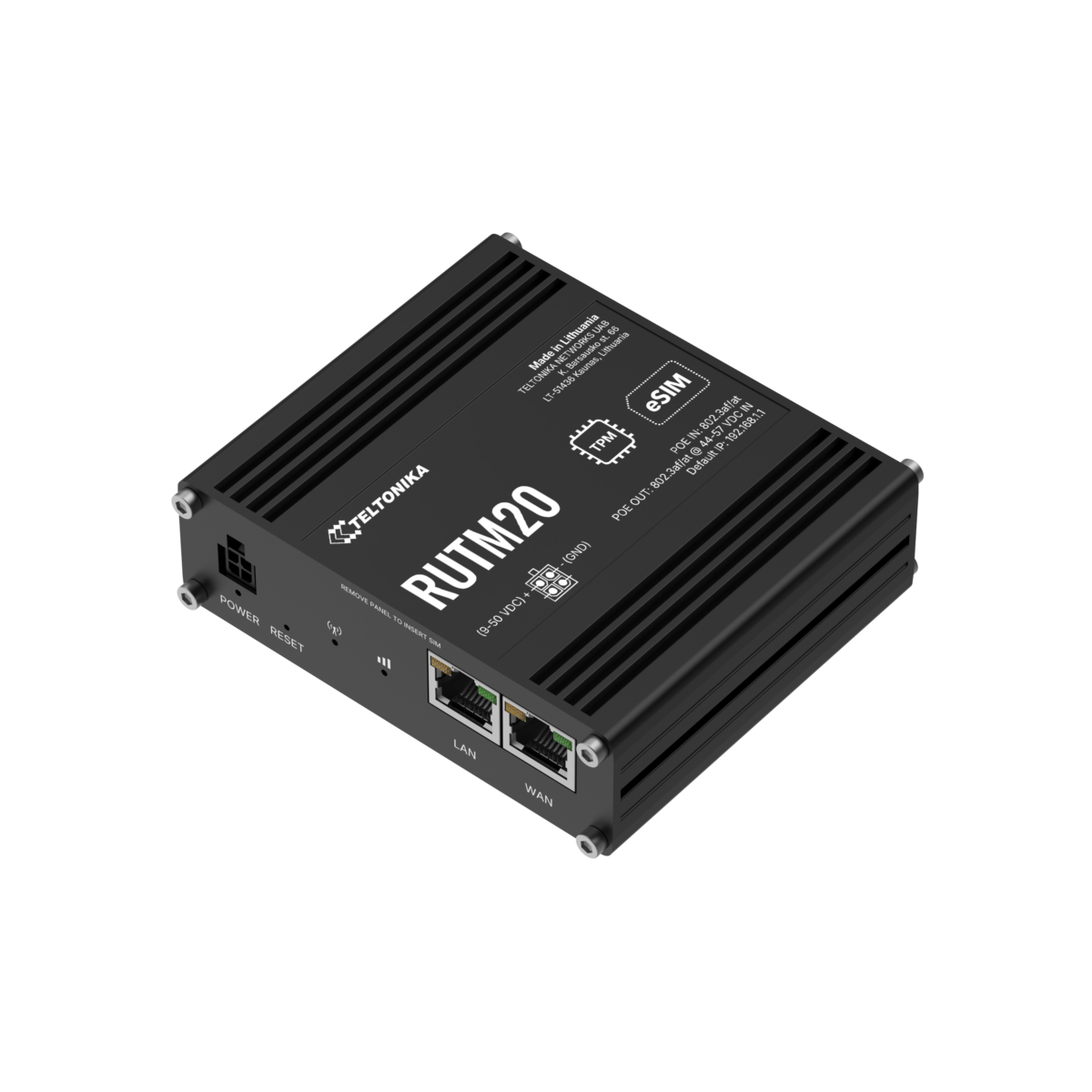

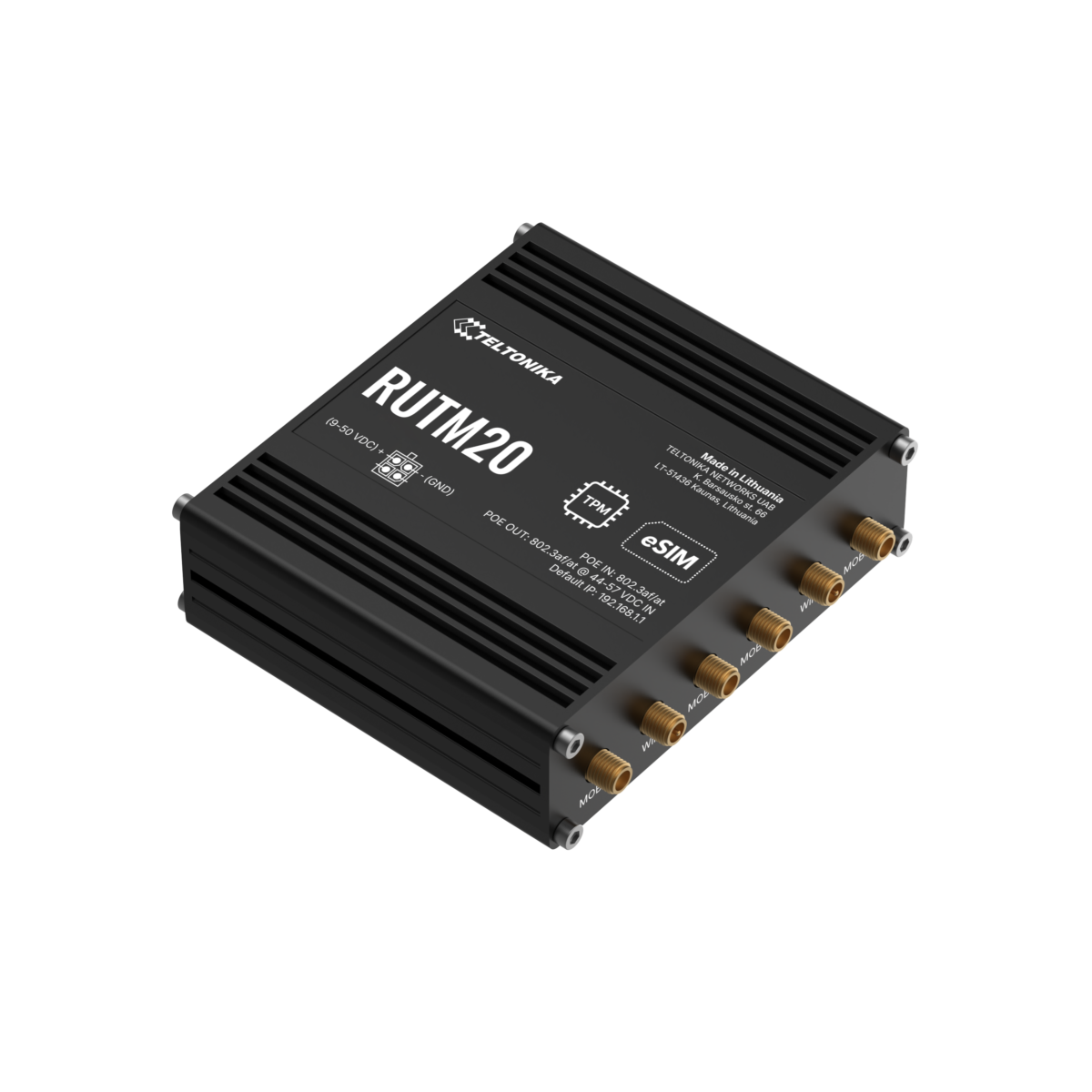

RUTM20 Compact 5G Router

The RUTM20 can reach up to approximately 3.4 Gbps download and 900 Mbps upload on 5G (Sub-6 GHz). When using 4G/LTE, it supports Cat 19 LTE with peak downloads around 1.6 Gbps (and uploads ~200 Mbps), and it falls back to 3G HSPA+ speeds of up to 42 Mbps if necessary. These high data rates make it suitable for bandwidth-intensive tasks like video streaming or rapid data offloading, while ensuring connectivity even in areas where only 4G or 3G is available.

The router is equipped with two physical SIM slots and an embedded eSIM. You can load multiple carrier profiles onto the eSIM (up to 7). The RUTM20 monitors the connection quality and will automatically switch between SIMs if the active network has issues (for example, weak signal, data cap reached, roaming restrictions, or network outage). This intelligent failover means the device stays online by swapping to an alternate mobile operator or profile without requiring a site visit. It’s especially useful for critical IoT systems that demand near 100% uptime across different regions or network conditions.

Yes. The RUTM20 supports Active PoE both as a Powered Device (PD) and Power Sourcing Equipment (PSE). In practice, this means you can power the RUTM20 itself through an Ethernet cable from a PoE switch (or injector), and the RUTM20’s LAN port can pass through power to run another device (like an IP camera or sensor) on the same cable. It adheres to the 802.3af/at standards (PoE/PoE+), so it can provide up to ~25 W to an attached device. This one-cable setup simplifies installations and is ideal for remote setups (e.g. powering a surveillance camera directly from the router).

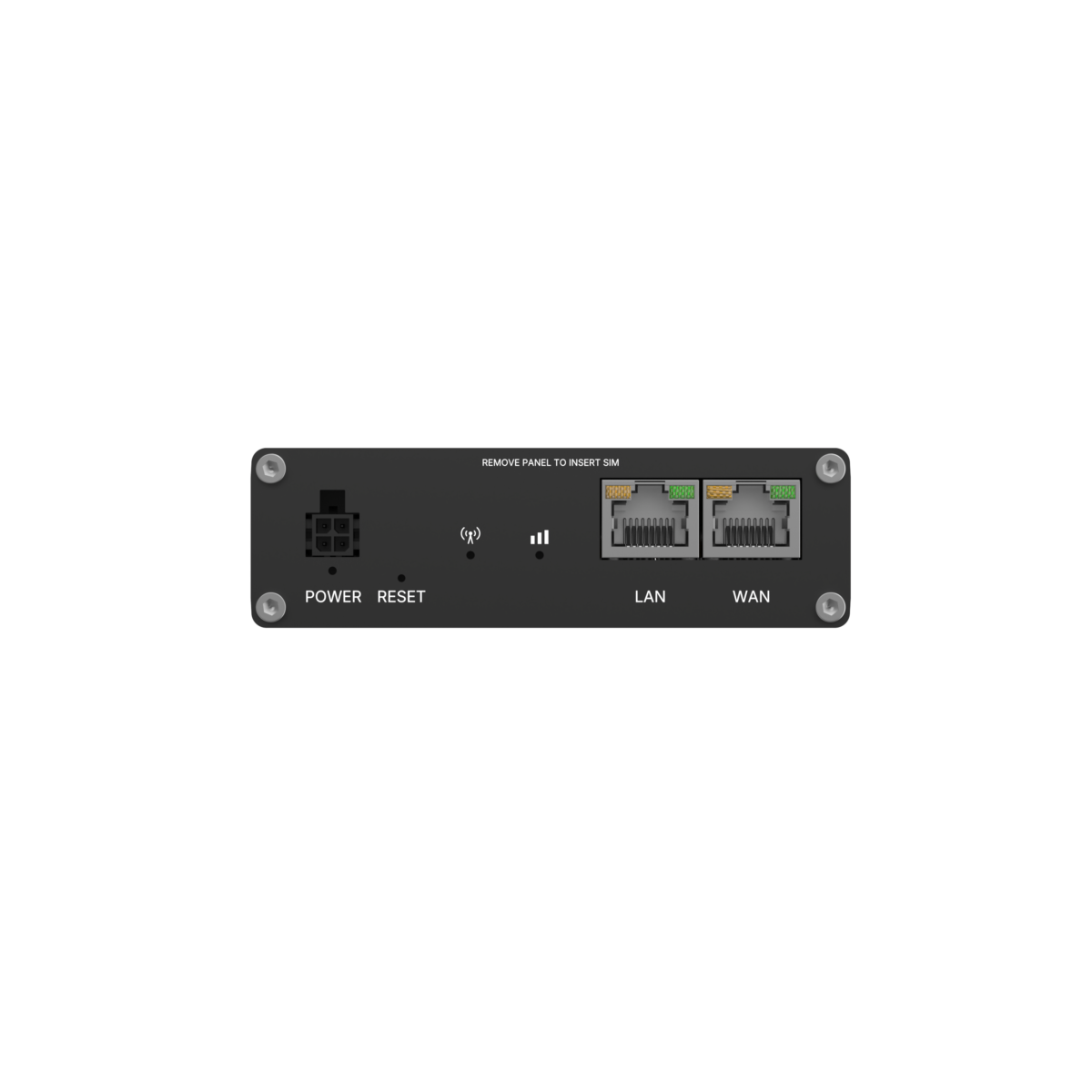

The router has an integrated dual-band Wi-Fi 5 access point that operates on 2.4 GHz and 5 GHz simultaneously. It can handle up to 150 Wi-Fi client devices connected wirelessly, which is plenty for deployment in something like a large vehicle, kiosk, or small office full of IoT sensors. On the wired side, the RUTM20 provides one Gigabit Ethernet LAN port (and one Gigabit WAN port). The LAN can be segmented with VLANs for network security or traffic management. In short, it can act as a combined 5G modem, Wi-Fi hotspot, and LAN switch for edge devices, all in one box.

The RUTM20 is designed for industrial conditions in terms of temperature and vibration, featuring a rugged metal enclosure and reliable components. It functions in extreme temperatures from –40 °C up to 75 °C without issues, making it suitable for factories, unheated cabinets, or vehicle installations. Its enclosure is rated IP30 (protection against small objects, but not waterproof), so if you need to use it outdoors or in dusty/wet environments, you should mount it inside a proper weather-proof enclosure. The device is also compliant with industrial certifications and standards (CE, FCC, etc.), ensuring it can be safely deployed in professional environments.

You have several remote management options. The RUTM20 runs Teltonika’s RutOS, which supports a WebUI and CLI for configuration. For mass deployments, it’s compatible with a cloud-based Remote Management System (RMS) – this allows you to monitor device status, push firmware updates, and adjust settings on many units from a central dashboard. In addition, the router supports standard protocols like SNMP for integration with network monitoring software, and TR-069 for managing devices over the internet. These features let network administrators oversee RUTM20 routers in the field, perform diagnostics, and ensure everything is running smoothly without having to physically access the units.

The RUTM20’s operating system includes a full suite of networking features typically found in enterprise-grade routers. It supports advanced VPN protocols (like OpenVPN, IPsec, PPTP/L2TP, and even the modern WireGuard) to establish secure tunnels. A configurable firewall with firewall rules/NAT is built in, enabling you to restrict traffic or create port forwards as needed. The router also supports routing protocols (such as static routes, OSPF, BGP, etc.) for integration into complex networks. On the IoT side, it speaks industrial protocols: for example, it can function as a Modbus TCP master or slave, and supports MQTT for sending data to IoT cloud platforms. Overall, the RUTM20 gives engineers a lot of flexibility to tailor network behavior and security to their application requirements.

The RUTM20 is incredibly versatile due to its compact size and powerful capabilities. It’s a great fit for smart retail and POS systems – for instance, providing 5G backup connectivity for payment terminals in a small kiosk. It’s also used in video surveillance setups, where it can provide wireless internet to security cameras and even supply them power via PoE. In transportation (buses, trucks, trains), the RUTM20 serves as an onboard gateway, offering Wi-Fi to passengers or connecting onboard devices while handling the vibration and temperature swings. Utilities and smart city projects can deploy it in tight roadside cabinets or meter boxes to link sensors over 5G. Essentially, any application that needs reliable broadband connectivity in a confined space – from industrial automation panels to self-service vending machines – can benefit from the RUTM20 router.
