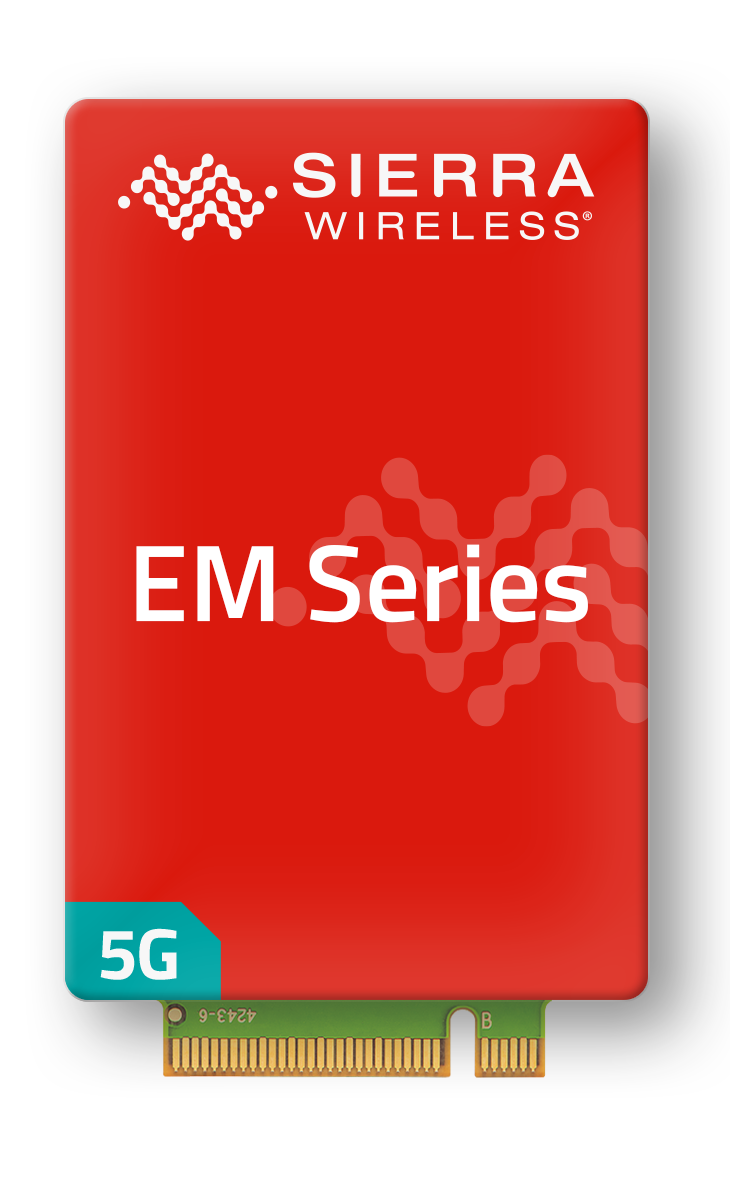

EM9293 5G Sub6 GHz M.2 Module
- Technology
- 5G modules
- Partner
- Semtech (formerly Sierra Wireless)
The EM9293 is a second-generation 5G module built for high-speed IoT and networking applications. It supports 3GPP Release 16 5G NR on Sub-6 GHz bands in both standalone (SA) and non-standalone (NSA) modes. With peak data rates of up to 4.9 Gbps downlink and 1.3 Gbps uplink, it enables reliable multi-gigabit wireless performance. The module also falls back to 4G LTE and 3G when 5G is unavailable, helping maintain continuous connectivity. Its M.2 30 x 52 mm form factor is pin-compatible with earlier modules, simplifying upgrades. An integrated dual-band GNSS receiver supports GPS, GLONASS, Galileo and BeiDou for positioning and timing. The EM9293 also offers secure boot firmware, dual SIM support, and an optional embedded eSIM (eUICC) for flexible deployment. Designed for demanding environments, it is well suited to industrial routers, enterprise gateways, rugged laptops and tablets, surveillance systems, and digital signage.
Range features
A high level overview of what this range offers
- Private network ready (CBRS): Supports FCC-certified CBRS bands for private 4G/5G deployments and enterprise connectivity.
- Global 5G and LTE coverage: Broad Sub-6 GHz 5G and LTE band support helps simplify worldwide rollout.
- Embedded eSIM option: Optional eUICC enables remote SIM provisioning and flexible fleet management.
- Dual-band GNSS: Integrated GPS, GLONASS, Galileo, and BeiDou support on L1/L5 improves positioning and timing accuracy.
- Dual SIM support: Two external SIM interfaces allow carrier switching and redundancy with dual SIM single standby operation.
- Secure boot firmware: Hardware-based secure boot helps ensure that only trusted firmware runs on the module.
- Industrial-grade design: Extended temperature support and rugged construction make it suitable for harsh environments.
- Easy upgrade path: Pin compatibility with earlier EM-series and Cat-20 class modules reduces redesign effort.
Downloads
for EM9293 5G Sub6 GHz M.2 Module
What’s in this range?
All the variants in the range and a comparison of what they offer
| Specification | Value |
|---|---|
5G network standard | 3GPP Release 16; 5G NR Sub-6 GHz (NSA & SA modes) |
5G frequency bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n39, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 |
4G network standard | LTE-Advanced Pro (Cat 20) |
4G frequency bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
3G fallback | UMTS/HSPA+ (3G) |
Peak download rate | Up to 4.9 Gbps |
Peak upload rate | Up to 1.3 Gbps |
SIM support | Dual external SIM interfaces + optional embedded eSIM (eUICC) |
GNSS support | GPS, GLONASS, Galileo, BeiDou (dual-band L1/L5) |
Antenna connectors | 4 x cellular (MIMO) + 1 x GNSS; dedicated GNSS port supports active antenna (DC bias) |
Host interfaces | PCIe Gen3 x1 lane (backward compatible with Gen2); USB 3.1 |
OS driver support | Windows 10, Linux, Android (RIL) |
Form factor & dimensions | M.2 module (30 mm x 52 mm x 2.38 mm) |
Operating temperature | -30 °C to +70 °C (ambient) |
Storage/Extended temperature | -40 °C to +85 °C |
Carrier approvals | AT&T (FirstNet), Verizon, T-Mobile, Telstra, NTT Docomo, SoftBank |
Regulatory compliance | FCC, IC, EU RED, KCC, JATE/Telec, Anatel, NCC |
Industry certifications | GCF, PTCRB |
Certification type | CE (RED), UKCA, RoHS compliant |
Embedded SIM (eUICC) | Supported (optional, consumer or M2M profiles) |
FAQs
for EM9293 5G Sub6 GHz M.2 Module
Yes. The EM9293 supports both 5G NR standalone (SA) and non-standalone (NSA) modes, allowing operation with pure 5G core networks as well as existing LTE-assisted 5G deployments.
The EM9293 is the higher-spec variant in the same 5G module family. It supports wider 5G carrier aggregation of up to 300 MHz compared with 120 MHz on the EM9291, supports more LTE layers, and includes a dedicated GNSS antenna port for an active antenna.
Yes. The EM9293 uses the standard M.2 30 x 52 mm form factor and is pin/pad-compatible with earlier EM-series modules such as Cat-20 LTE and first-generation 5G models, making upgrades easier with minimal redesign.
The module integrates GNSS support for GPS, GLONASS, Galileo, and BeiDou with dual-band L1/L5 operation. It can work with a dedicated GNSS antenna or share a cellular antenna depending on the design.
No. The EM9293 is designed for Sub-6 GHz 5G operation and does not support mmWave bands.
Under ideal conditions, the EM9293 supports up to 4.9 Gbps downlink and 1.3 Gbps uplink. Actual throughput depends on network capability, carrier aggregation, antenna setup, and signal conditions.
The EM9293 provides four cellular antenna connectors and one GNSS connector. Typical implementations use two to four cellular antennas for 5G/LTE performance, plus an optional dedicated GNSS antenna.
Yes. It supports dual SIM through two physical SIM interfaces in dual SIM single standby mode, and it also supports an optional embedded SIM (eUICC) for remote profile provisioning.
Yes. The module is designed for rugged applications with an operating temperature range of -30 °C to +70 °C and extended storage/survival capability from -40 °C to +85 °C.
The EM9293 supports Windows 10, Linux, and Android (RIL), making it suitable for a wide range of embedded, industrial, and mobile computing platforms.
