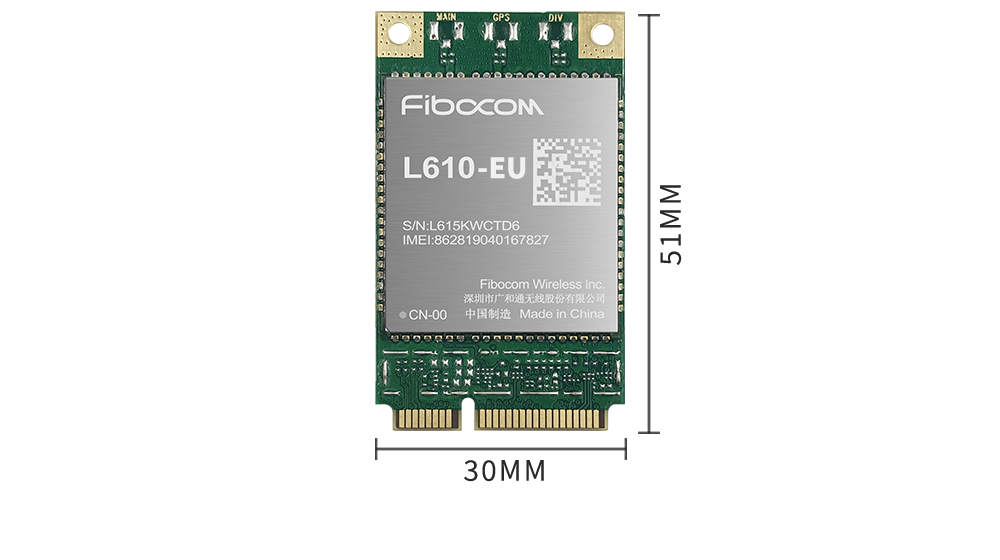

The L610-EU MiniPCIe is a 4G LTE Cat 1 bis wireless communication module in a compact Mini PCIe form factor (50.8 × 29.85 × 3.4 mm). It supports FDD LTE and GSM 900/1800 MHz bands, tailored to meet the requirements of major European network operators.
This module is part of the L610 MiniPCIe series, with regional variants like L610-CN and L610-LA designed for networks in Asia and Latin America respectively. Engineered for medium to low data rate IoT applications, the L610-EU MiniPCIe is ideal for use in smart payment systems, shared devices, industrial IoT, asset tracking, and aftermarket vehicle solutions.
Range features
An overview of what’s in the range
- 4G LTE Cat 1 bis connectivity with GSM 900/1800 MHz support
- Mini PCIe form factor (50.8 × 29.85 × 3.4 mm)
- Designed for European LTE bands, with regional variants for Asia (L610-CN) and Latin America (L610-LA)
- Ideal for medium-to-low data rate IoT applications
- Supports applications such as smart payments, asset tracking, industrial IoT, and vehicle telematics
- Compact and efficient design for seamless integration into IoT solutions
Package | MiniPCIe |
Dimension (mm) | 51 x 30 x 3.4 |
LTE FDD | B1/3/7/8/20/28* |
LTE TDD | NA |
WCDMA | NA |
TD-SCDMA | NA |
EVDO | NA |
CDMA2000 1X | NA |
GSM/GPRS/EDGE | 900/1800MHz |
Power supply | 3.4V ~ 4.3V (Typical 3.8V) |
Operating temp | -30°C ~ +75°C |
