Kool Mµ MAX ist die nächste Generation von Sendust-Kernen von Magnetics. Magnetics hat sein material mit geringem Kernverlust Kool Mµ aufgeladen und bietet eine um 50 % bessere Gleichstrom-Vorspannungsleistung für eine bessere Leistungsaufnahme. Der Einsatz von Kupferdraht wird minimiert, indem die Induktivität mit weniger Windungen beibehalten wird, was zu Einsparungen bei den Gesamtkosten der Komponenten führt. Mit seinen sehr geringen Verlusten imitiert Kool Mμ MAX nicht die Temperaturanstiegsprobleme, die bei Eisenpulverkernen auftreten, und verbessert die Effizienz des Induktors zu einem Bruchteil der Kosten von High Flux mit Kool Mµ MAX.

Kool Mµ MAX Powder Cores

Eigenschaften

  • Advanced FeSiAl alloy powder material
  • Available permeabilities: 14 – 60
  • KoolMµ material with improved DC bias behaviour and higher saturation point
  • Relatively low core losses – the same as Kool Mµ

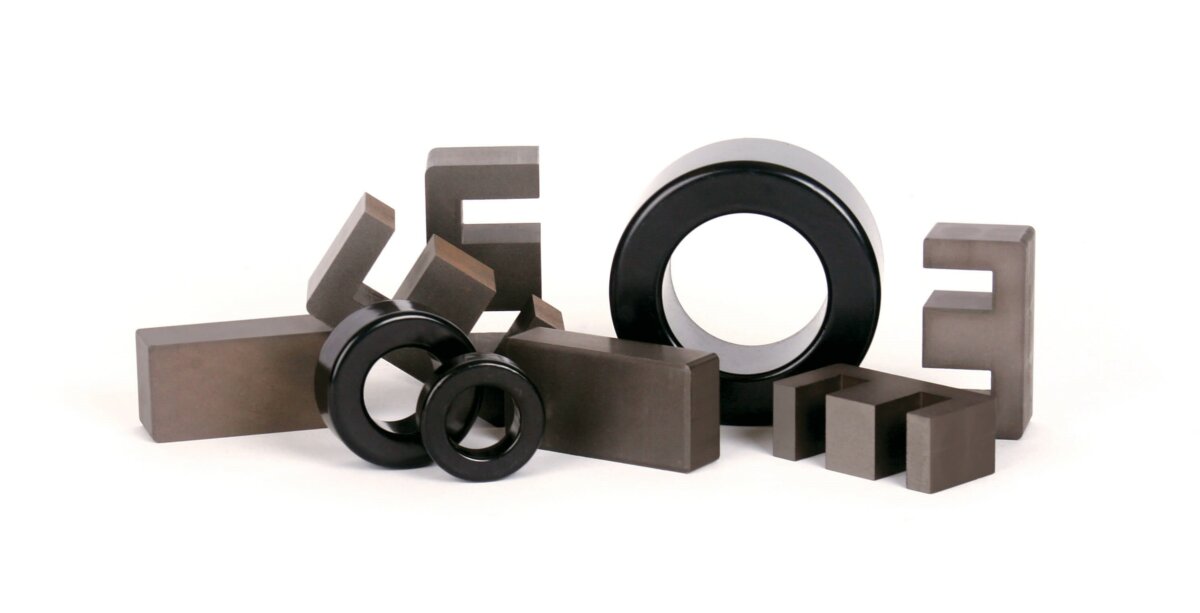

  • Available in toroids, E cores, and blocks
  • Relatively low-cost material – no nickel inside
  • Saturation flux density: 1.0T
  • Curie temperature: 500°C
  • 60µ usable up to 15MHz

Downloads

für Kool Mµ MAX Powder Cores

pdf
Magnetics Inc powder cores brochure
Download
pdf
Magnetics Inc Kool Mµ MAX
Download
pdf
Magnetics Inc Kool Mµ MAX material property curves
Download

Verfügbare Modellvariationen

Alle verfügbaren Varianten und ein Vergleich ihrer Spezifikationen

ModelSize (finished) (OD × ID × HT)A L (nH/N2) 14 µA L (nH/N2) 19 µA L (nH/N2) 26µA L (nH/N2) 40µA L (nH/N2) 60µLe (cm)Ac (cm2)Vol (cm3)

050

13.5 x 6.99 x 5.51

9

12

18

27

31.2

10.9

340

120

17.3 x 9.53 x 7.11

11

15

24

35

41.2

19.2

791

380

21.1 x 12.1 x 7.11

14

19

28

43

41.4

23.2

960

206

23.6 x 13.3 x 8.4

10

14

21

32

50.9

22.1

1,120

310

24.3 x 13.8 x 9.7

14

19

29

43

56.7

31.7

1,800

350

27.7 x 14.1 x 11.9

16

22

34

51

58.8

38.8

2,280

930

33.7 x 19.5 x 11.4

18

23

32

50

75

63.5

65.4

4,150

548

33.7 x 19.5 x 11.4

14

20

28

41

61

81.4

65.6

5,340

585

35.2 x 22.6 x 9.8

9

12

16

25

38

89.5

46.6

4,150

324

36.7 x 21.5 x 11.4

13

18

24

37

56

89.8

67.8

6,090

254

40.8 x 23.3 x 15.4

19

26

35

54

81

98.4

107

10600

454

43.83 x 23.4 x 17.26

47

72

108

102

147.5

15100

089

47.63 x 27.88 x 16.2

20

27

37

57

86

116

134

15600

438

47.63 x 23.3 x 19

32

43

59

90

135

107

199

21300

725

51.31 x 23.9 x 21.6

41

56

76

117

175

114

262

29700

715

51.69 x 30.93 x 14.4

17

23

32

49

73

127

125

15900

109

58.0 x 34.7 x 14.9

18

24

33

50

75

143

144

20,700

195

58.0 x 25.6 x 13.2

32

44

60

92

138

125

229

28,600

620

62.9 x 31.7 x 25.9

44

60

82

126

189

144

360

51,800

070

69.4 x 34.7 x 21.4

33

48

65

100

143

158

314

49,700

778

78.9 x 38.3 x 26.8

47

64

88

135

205

177.2

492

81,500

740

75.0 x 44.4 x 35.9

48

64

88

136

204

184

497

91,400

866

78.9 x 48.2 x 13.9

16

22

30

45

68

196

176

34,500

906

78.9 x 48.2 x 17.1

20

27

37

57

85

196

221

43,400

102

103.0 x 55.75 x 17.9

26

35

48

74

111

243

358

86,900

337

134.0 x 77.19 x 26.8

37

50

68

324

678

220,000

165

166.5 x 101.2 x 33.15

42

412

987

407,000
