ZTP Series Thermopile sensors
- Technology
- Thermopiles
- Partner
- Amphenol Advanced Sensors
ZTP Series Infrared (IR) consist of thermo-elements flat infrared filter and thermistor for temperature compensation available as a module or in a hermetically sealed package.
There is also a wide range of filters available to help maximise performance in specific applications.
Range features
A high level overview of what this range offers
- Non contact measurement
- High sensitivity
- Consistent accuracy
- Ultra small size
- Fast response time
- -20°C to +100°C operating range
- Low-cost
What’s in this range?
All the variants in the range and a comparison of what they offer
| Model | Description |
|---|---|

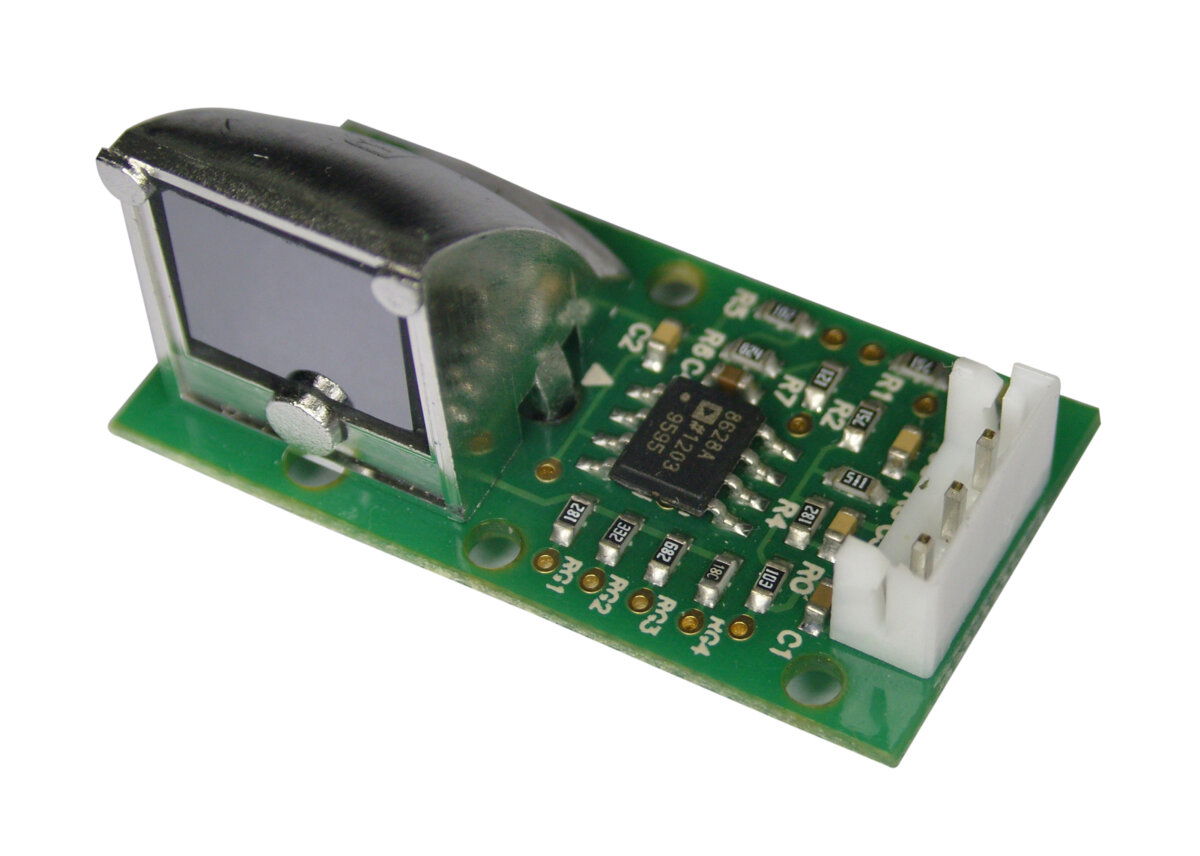

ZTP-115M | Single IR module, analog output, FOV 5.5° (horz.), 6° (vert.) |
ZTP-101T | TO-5 package, FOV 50° |
ZTP-115 | TO-5 package, FOV 55° |
ZTP-115L | TO-5 package, FOV 55°, 13.2mm leads |
ZTP-115L1 | TO-5 package, FOV 55°, 6.7mm leads |
ZTP-135 | TO-5 package, FOV 56° |
ZTP-135SR | TO-46 package, FOV 85° |
ZTP-135SR-F1 | TO-18 package, FOV 85° |
ZTP-135H | TO-5 package, FOV 86° |
ZTP-135L | TO-5 package, FOV 86° |
ZTP-315 | TO-5 package, FOV 75° |
ZTP-135BS | TO-18 package, FOV 85° |
ZTP-148SR | TO-18 package, FOV 85° |
