KG SMD Glass Thermistor
- Technology
- Thermistors
- Partner
- Shibaura
Available in two sizes, the KG NTC are unique SMD glass thermistors, for applications where an accurate measurement of PCB temperature is needed, in the presence of high temperature and repeated thermal cycles.
Thanks to their extreme reliability, they are commonly used in products like IGBT power modules, for industrial and automotive applications.

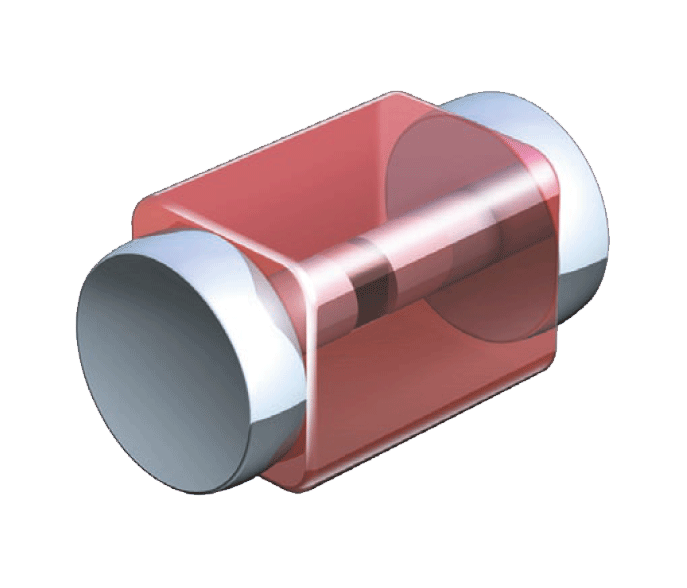

Square glass-headed metal electrodes bring virtually no change for the KG through its lifetime. In addition, the KG provides excellent solderability and mountability.
Range features
A high level overview of what this range offers
- Glass encapsulated thermistors for excellent withstanding of heat, humidity and harsh conditions
- Excellent solder wettability and solder dip resistance with tin-plated electrodes
- The square glass prevents deviation or falling off while being mounted
- Operating temperature -50°C/+200°C
- 2 sizes (3,2mm x 1,65mm x 1,65mm; 2,0mm x 1,2mm x 1,2mm)
- Suitable for overheat prevention for industrial motors
- Temperature assurance for IGBT units and electronic parts
- Available with different RT characteristics, to adapt to many applications
What’s in this range?
All the variants in the range and a comparison of what they offer
| Model | Size | Operating temperature | Thermal time constant | Features |
|---|---|---|---|---|
KG2 | 2,0mm x 1,2mm | -50-200°C | Approx. 5 sec | Fast and small size |
KG3 | 3,2mm x 1,65mm | -50-200°C | Approx 10 sec | Suitable for automotive applications, thanks to superior reliability |
