LUMASENSE has completed its world-famous IMPAC Infrared pyrometers with line-scanning options to allow temperature measurement over large objects:

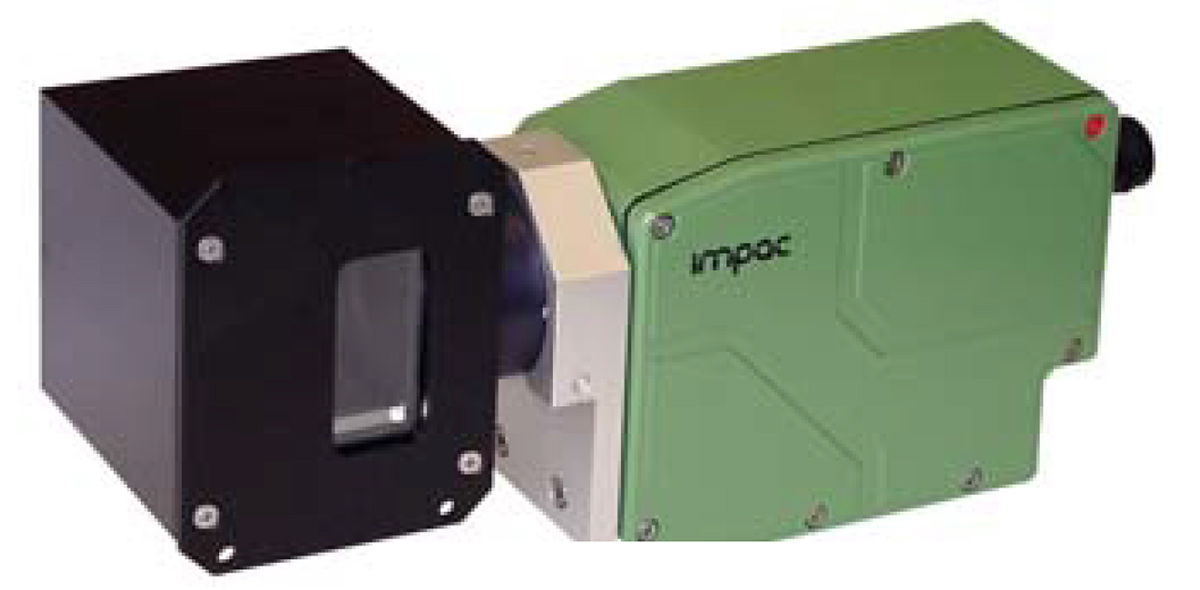

- The ROT rotary mirror attachment in combination with an IS 5/12 or IGA 5/12 pyrometers will allow to scan large objects with scanning capabilities from 0 to 76°, and to measure the temperature from 250°C and 3500°C.
- The SCA scanning attachment in combination with all series 140, 5 and 300 pyrometers will allow to scan small objects with scanning capabilities from 0 to 12°, and to measure the temperature from 32°C to 3300°C
- The IS 12 and IGA 12 pyrometers are also available with a built-in optical mirror with scanning capabilities from 0° to 4°
Typical applications
-
The ROT rotary mirror attached to IMPAC pyrometers models IS 5/12 or IGA 5/12 pyrometers is most frequently used to record the maximum temperature of large objects such as slabs, plates and metal strips
-
The SCA scanning attachment in combination with all IMPAC series 140, 5 and 300 pyrometers, as well the IMPAC IS 12 and IGA 12 pyrometers with a built-in Scanner, are mainly used for recording the maximum temperature of smaller targets such as thin oscillating wires which are not constantly in the pyrometer’s beam, or for finding scale-free spots on heavily scaled surfaces.

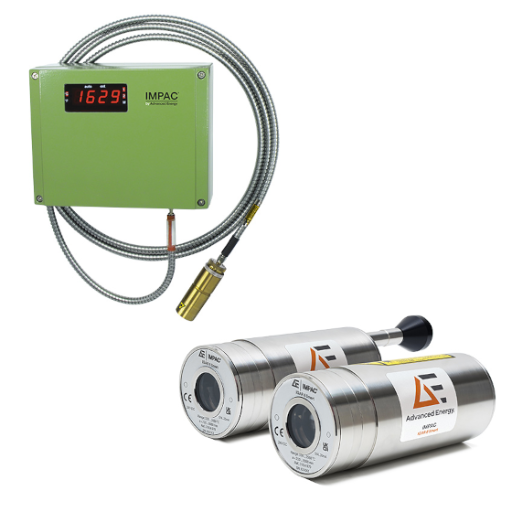

Downloads
for Pyrometers for metallic surfaces
| Series | Description | Temp. Range (°C) | Spectral Range (µm) | Uncertainty | Interface / Output |
|---|---|---|---|---|---|
Impac 12 Series | High-end pyrometers for metals, ceramics, graphite | 250–3500 °C | varies | — | Analog + digital; various optics iestechsales.com+15advancedenergy.com+15directindustry.com+15 |
Impac 12‑LO Series | Digital, fast 2‑color with fiber optic up to 30 m | 250–3500 °C | 0.8/1.05 µm | 0.4–0.6% + 1 °C | 0–20 mA, RS232/RS485 |
Impac 12‑TSP Series | Transfer standard, thermostated detectors, 0.01 °C resolution | 200–3000 °C | 0.65–1.57 | From 0.15% oR + 1 °C | 0/4–20 mA, digital |
Impac 218 Series | For metals, ceramics and graphite | 400–1500 °C | 0.85 and 1.8 (2 ranges in between) | 0.75% oR | 30 mA |
Impac 50‑LO plus Series | non-contact temperature measurement on diverse materials like metals, ceramics, and graphite | 250 to 3500 °C | 0.55 and 1.8 (6 ranges in between) | From 03% oR + 1 °C | 0/4 to 20 mA |
Impac 600 Series | modular pyrometer that provides a highly customisable design | -40 and 2500 °C | 0.7 and 14 (5 ranges in between) | From 0.5% oR or 0.8 °C | 0/4 to 20 mA |
Impac 8 Series | Does not align with known ISR/MIS; likely legacy model | 250 and 2500 °C | 0.55 and 1.8 (3 ranges in between) | 0.4% oR + 1 °C | USB |
Impac Highspeed Series | Ultra-fast pyrometers | 160–3500 °C | varies | 0.75% oR | Analog + digital; fiber options |
Impac IGA 140/23 Series | Low-temp 2-color comfort-class | 220–3000 °C | 1.45–1.8 µm | From 2 °C | Analog + digital |
Impac IGA 320/23 Series | Mid-temp analog of IGA 140 | 250–2300 °C | 1.45–1.8 µm | 0/4 to 20 mA | Analog + digital |
Impac IGA 320/23‑LO Series | Fiber-optic mid-temp | 300–2500 °C | 1.45–1.8 µm | 0.5–0.7% + 1 °C | 0–20 mA, RS232/RS485 |
Impac IGA 6/23 Series | Low-temp compact comfort-class | 50 and 1800 °C | 2 to 2.6 | From 0.3% oR + 2 °C | USB, RS485 |
Impac IGAR 320 Series | 2-color fiber mid-temp similar to IGA 320 | 300–1000 to 550–2500 °C | 1.52/1.64 µm | 0.5–0.7% + 1 °C | 0–20 mA, RS232/RS485 |
Impac IGAR 6 Series | Fast 2-color low-temperature | 100 and 2550 °C | 1.5 and 2.5 (2 ranges in between) | From 0.4% oR + 2 °C | USB, RS485 |
Impac IPE 140 Series | Comfort-class 140mm? — likely variation of IS/IGA 140 | 5 to 2000 °C | 3 and 5 (4 ranges in between) | From 0.4% oR + 1 °C | 0/4 to 20 mA |
Impac IS 140 & IGA 140 Series | Comfort-class, two optical variants: IS/IGA | 550–3300 °C / 220–3000 °C | 0.7–1.1 µm / 1.45–1.8 µm | — | Analog + digital |
Impac IS 320 & IGA 320 Series | Mid-temp versions | 300 and 2500 °C | 0.8 and 1.8 (2 ranges in between) | From 0.3% oR + 1 °C | 0/4 to 20 mA |
Impac IS 6 & IGA 6 Series | Low-temp fast compact | 600–3000°C (ISR 6) | 0.9/1.05 µm | 0.3–0.6% + 1 °C | 0–20 mA, RS232/RS485, USB |
Impac ISR 320 Series | 2-color optional line optics (ISR 12 LO family) | 700–3000 °C | 0.9/1.05 µm | — | 0–20 mA, RS232/RS485 |
Impac ISR 6 Series | Stationary 2-color | 600–3000 °C | 0.9/1.05 µm | <1500 °C: 0.3%+2 °C; >1500 °C: 0.6% | 0–20 mA, RS232/RS485, analog |
Impac ISR 6-TI Advanced | Stationary 2-color with thermal imaging | 700–1800 °C | 0.9/1.05 µm | Same as ISR 6; 2 ms response | RS485, USB, analog video |
