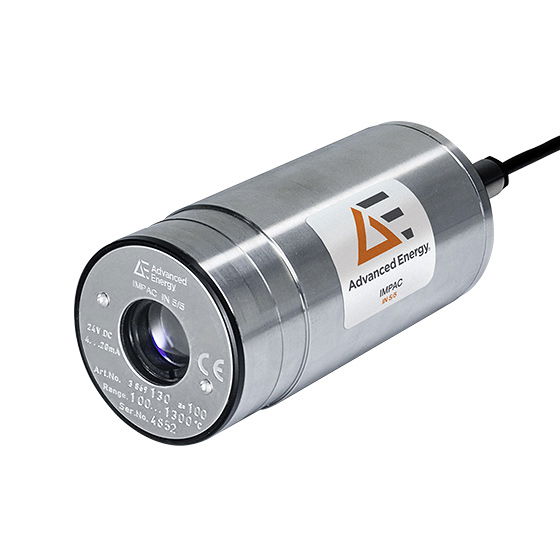

Impac IN 5/5 Series Pyrometers

2-wire pyrometer with fixed optics for non-contact temperature measurement of glass and quartz glass surfaces.

Temperature ranges between 100 and 2500 °C.

The Advanced Energy Impac IN 5/5 compact pyrometers are specially designed for temperature measurement of glass and quartz glass surfaces with temperature ranges between 100 and 2500°C.

This instrument is a digital pyrometer in two-wire technique. This technique combines the high accuracy of the digital signal processing with the simple connection and operating with two wires. The solid and robust design of the instruments guarantees high operational safety even in rough industrial environments. For optimal match of the instrument to the application (size of the measuring object, distance), different optics are available.

Impac IN 5/5 Series Pyrometers

Features

  • Pyrometers in two wire form with analog output 4 to 20 mA
  • High accuracy due to digital linearization of the output
  • Small spot sizes, min. 2.5 mm
  • Adjustable exposure time
  • Compact housing

Benefits

  • Achieve high accuracy due to output digital linearization
  • Adjust parameters on the instrument
  • Utilize various optics available for optimal matching of the instrument to the application
  • Operate in rough industrial environment

Downloads

for Impac IN 5/5 Series Pyrometers

pdf
Impac IN 5/5 series pyrometers
Download
SpecificationsValues

Operational temperature range (°C):

100 and 2500 °C (4 ranges in between)

Spectral Range (µm):

5.14

Measurement Uncertainty (°C):

From 0.6% oR or 2 °C

Optics (mm):

Fixed optics

FOV (minimum spot size) (mmm):

50:1 (2.5)

Alignment / Sighting:

None

Interface / Output (mA):

0/4 to 20 mA

Exposure Time t90 (ms):

Multiple specifications. Please refer to Datasheet.

Ambient Temperature (°C):

0 to 70

Protection Class:

IP 65 (DIN 40050)

Emissivity:

0.2 to 1.0 adjustable

Weight (kg):

0.41

Housing:

Stainless steel

Connection:

12-pin connector

Operating Position:

Any

CE-label:

According to EU directives about electromagnetical immunity

Parameters / Settings:

Adjustable on the pyrometer: Emissivity, Exposure time

Wavelength Repeatability (pm):

0.3 % oR or 0.6 °C
