C Series battery and capacity chargers
- Technology
- Battery and capacity power chargers
- Partner
- Ultravolt / Advanced Energy

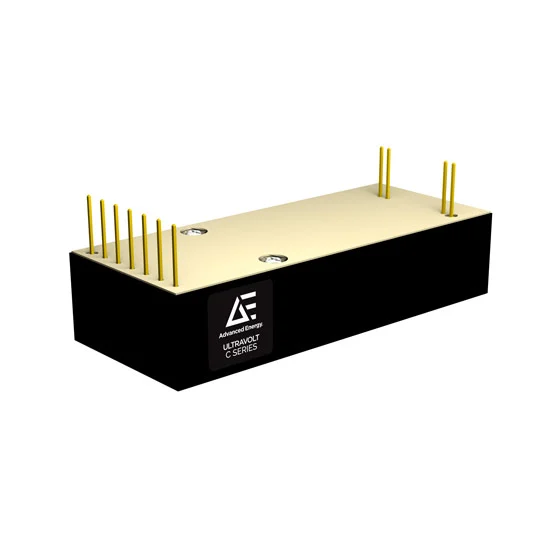

Advanced Energy’s UltraVolt C series of high voltage DC-DC converters are designed for fast rise time/charging applications. They have high power density making them especially suited to high-energy pulsers, amplifiers, and discharge devices with large capacitance, fast repetition rates, or high current loads.
The UltraVolt C series includes models ranging from 125 to 6000 VDC of maximum high-voltage power. From a 24 VDC input, access up to 30 W of fast-rise charging power with less than 1% overshoot. Choose from single-output positive or negative polarities and PCB or chassis mounts while selecting mechanical and electrical performance options to meet your specific application needs.
Range features
A high level overview of what this range offers
- Fast rise charging power delivered from an optimised design
- Limited overshoot, typically less than 1% of high voltage setpoint depending on the application
- Selection of electrical shielding and mechanical integration options
- The benefit of minimising stress on storage capacitors, enhance system reliability, and simplify product design
Downloads
for C Series battery and capacity chargers
What’s in this range?
All the variants in the range and a comparison of what they offer
| Specifications | Values |
|---|---|
Output Power (W): | 20 to 30 |
Length (Inches): | 3.7 |
Length (Inches): | 1.5 |
Height (Inches): | 0.8 |
Mounting Type: | Surface Mount |
Minimum Output Current (A): | 0.0033 |
Maximum Output Current (A): | 0.24 |
Output Voltage Range (V): | 0 to 6000 |
Minimum Output Power (W): | 20 |
Maximum Output Power (W): | 30 |
Maximum Input Voltage (V): | 24 |
