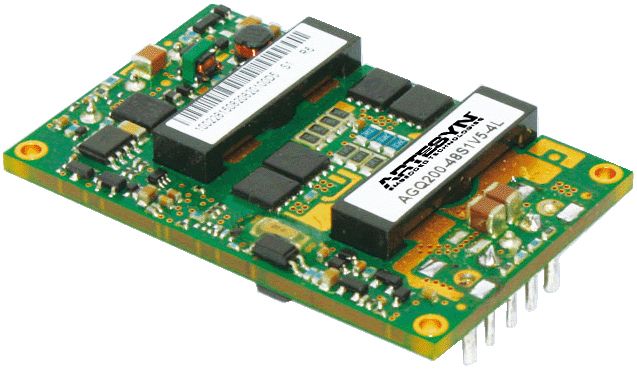

Telecom isolated DC-DC brick converters
- Technology
- PCB DC-DC power supplies
- Partner
- Artesyn / Advanced Energy
Advanced Energy’s Artesyn telecom isolated DC-DC brick converters provide high-efficiency, reliable power solutions for telecommunications and wireless infrastructure applications. Covering a broad spectrum of power needs from 35 W up to 1300 W, this product range includes sixteenth-, eighth-, quarter-, half-, and full-brick formats. Each converter is designed for high performance and flexibility, with open-frame options, surface-mount or through-hole terminations, and optional baseplates for enhanced thermal management.
These converters are optimised for delivering low-noise, regulated DC power to RF power amplifiers and sensitive telecom circuitry, making them ideal for pico, micro, and macro base stations and other wireless applications.
Range features
A high level overview of what this range offers
-
Wide Power Range: From 35 W to 1300 W to meet a variety of telecom needs.
-
Multiple Brick Formats: Sixteenth- to full-brick sizes for optimal board space utilisation.
-
High Efficiency: Advanced design for efficient energy conversion, reducing heat and power loss.
-
Low Noise Output: Designed specifically for RF and signal-sensitive applications.
-
Flexible Mounting Options: Available in both surface-mount and through-hole variants.
-
Optional Baseplates: Improve heat dissipation in demanding thermal environments.
-
Wide Input Voltage Ranges: Suitable for global telecom and datacom standards.
-
Robust Thermal Design: Supports operation in harsh conditions with effective cooling.
-
Proven Reliability: Built to meet industry standards for long-term dependable operation.
-
Modular Scalability: Easy integration into existing telecom systems, from pico to macro base stations.
What’s in the range? All the variants in the range and a comparison of what they offer
| Part number | Power output | Brick size | Mounting type | Input voltage range | Key feature / application |
|---|---|---|---|---|---|
ADC100 | 100 W | Eighth | Through-Hole | 36–75 V | Telecom RF amplifier power |
ADH700 | 700 W | Half | Through-Hole | 36–75 V | High power base station use |
ADO300 | 300 W | Quarter | Through-Hole | 36–75 V | General telecom usage |
ADO500 | 500 W | Quarter | Through-Hole | 36–75 V | High-efficiency isolated supply |
ADQ600 | 600 W | Quarter | Surface-Mount | 36–75 V | Open-frame or baseplate available |
ADQ600B | 600 W | Quarter | Through-Hole | 36–75 V | Baseplate-enhanced thermal option |
ADQ700 | 700 W | Quarter | Through-Hole | 36–75 V | Low-noise for RF power |
ADQ800 | 800 W | Quarter | Through-Hole | 36–75 V | Peak power for demanding applications |
AGF600 | 600 W | Full | Through-Hole | 36–75 V | High power RF amplifier supply |
AGF700 | 700 W | Full | Through-Hole | 36–75 V | Enhanced output stability |
AGF800 | 800 W | Full | Through-Hole | 36–75 V | Optimized for macro base stations |
AGF800 Dual | 800 W | Full | Through-Hole | 36–75 V | Dual-output for redundancy |
AGQ200 | 200 W | Quarter | Surface-Mount | 36–75 V | Compact, efficient design |
AGQ500 | 500 W | Quarter | Through-Hole | 36–75 V | Standard telecom infrastructure use |
ALD 35W | 35 W | Sixteenth | Through-Hole | 36–75 V | Entry-level low-power option |
ALD 60W | 60 W | Sixteenth | Through-Hole | 36–75 V | Compact board-fit solution |
ALO 100W | 100 W | Eighth | Surface-Mount | 36–75 V | Open-frame design for airflow |
ALO 66W | 66 W | Eighth | Surface-Mount | 36–75 V | Cost-effective telecom supply |
AVD100 | 100 W | Eighth | Through-Hole | 36–75 V | Standard telecom DC converter |
AVD200 | 200 W | Quarter | Through-Hole | 36–75 V | Broad compatibility |
AVD50 | 50 W | Sixteenth | Through-Hole | 36–75 V | Compact telecom application |
AVD50B | 50 W | Sixteenth | Through-Hole | 36–75 V | Baseplate-enhanced for thermal management |
AVD75 | 75 W | Eighth | Through-Hole | 36–75 V | High density, compact form |
AVD75B | 75 W | Eighth | Through-Hole | 36–75 V | Optional baseplate available |
AVD85 | 85 W | Eighth | Through-Hole | 36–75 V | Telecom-specific performance |
AVD85B | 85 W | Eighth | Through-Hole | 36–75 V | Improved cooling with baseplate |
AVE350 | 350 W | Half | Through-Hole | 36–75 V | Balanced power and size |
AVE350B | 350 W | Half | Through-Hole | 36–75 V | With baseplate for better heat control |
AVE450/500 | 450–500 W | Half | Through-Hole | 36–75 V | Versatile and reliable |
AVE700 | 700 W | Half | Through-Hole | 36–75 V | Ideal for high-demand telecom circuits |
AVO100 | 100 W | Eighth | Surface-Mount | 36–75 V | Cost-efficient open-frame option |
AVO200 | 200 W | Quarter | Surface-Mount | 36–75 V | Telecom-grade performance |
AVO240 | 240 W | Quarter | Surface-Mount | 36–75 V | Mid-range compact solution |
AVO250 | 250 W | Quarter | Surface-Mount | 36–75 V | Enhanced density and reliability |
AVO50 | 50 W | Sixteenth | Surface-Mount | 36–75 V | Lightweight, low power |
AVO75 | 75 W | Eighth | Surface-Mount | 36–75 V | For compact telecom modules |
AVQ100 | 100 W | Quarter | Through-Hole | 36–75 V | Isolated converter for flexible integration |
AVQ100 wide-range | 100 W | Quarter | Through-Hole | 18–75 V | Ultra-wide input for global use |
AVQ200 | 200 W | Quarter | Through-Hole | 36–75 V | Enhanced stability |
AVQ300 | 300 W | Quarter | Through-Hole | 36–75 V | Popular in base station builds |
AVQ400 | 400 W | Quarter | Through-Hole | 36–75 V | High output in compact design |
BDQ1300 & BCQ1300 | 1300 W | Full | Through-Hole | 36–75 V | Highest output for macro telecom systems |
NDQ900 | 900 W | Full | Through-Hole | 36–75 V | Robust macro base station solution |
