ERM Rail Series PCB DC-DC Power Supplies
- Technology
- PCB DC-DC power supplies
- Partner
- Artesyn / Advanced Energy

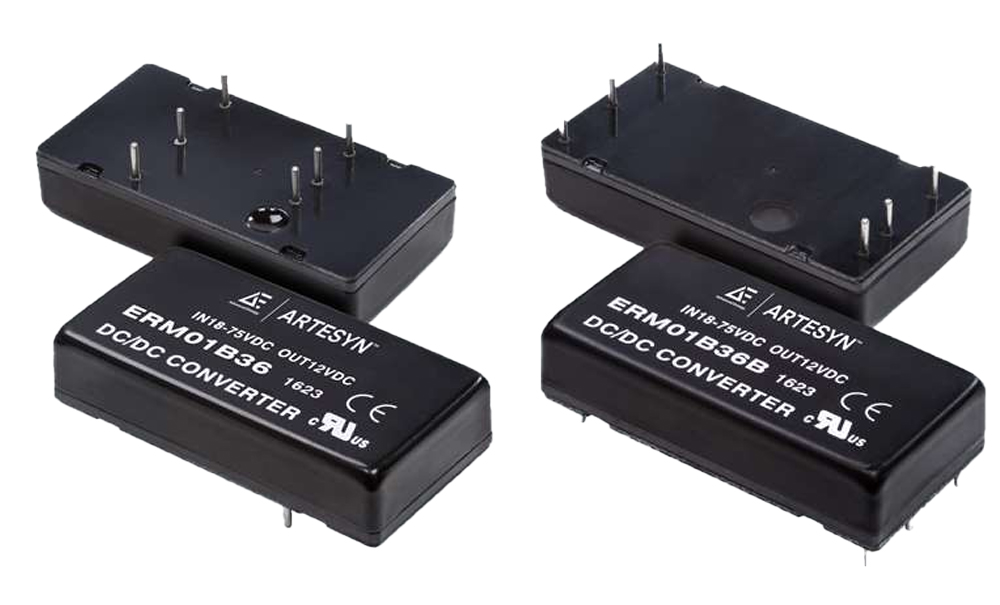

The Artesyn/Advanced Energy ERM series is specifically designed to meet the power demands and safety standard requirements of railway rolling stock applications. An advanced circuit topology gives the Artesyn/Advanced Energy ERM family a very high efficiency of up to 92 percent. They are encapsulated in a compact quarter-brick form factor with a metal base plate to protect the module from atmospheric conditions without requiring an additional coating. In addition, the ERM family includes a reinforced insulation system to meet the general specification of high voltage input and low voltage output. Combined with high EMC immunity, these DC-DC converters are ideal for many demanding applications in railway and transport.
Range features
A high level overview of what this range offers
- Power options: 10/ 20/ 40/ 50/ 75W
- Each series includes eight models with output options: 5V, 12V, 15V, or 24 and input ranges of 43Vdc to 101Vdc (72Vdc nominal) or 66Vdc to 160Vdc (110Vdc nominal)
- Wide operating temperature: 40 – 85°C with derating
- Complies with the railway industry specifications: EN 50155, EN 50121-3-2, and the vibration and thermal shock requirements of EN 61373
- Size: 9 x 36.8 x 12.7mm (2.28 x 1.45 x 0.50 inches)
What’s in this range?
All the variants in the range and a comparison of what they offer
| Series | Power (W) | Maximum current (A) | Input voltage (V) | Output voltage (V) | Number of outputs |
|---|---|---|---|---|---|
ERM10 | 10 | 2 | 9 to 36 | -15 to +26 | 1, 2 |
ERM20 | 20 | 4 | 18 to 75 | -15 to +26 | 1, 2 |
ERM50 | 50 | 10 | 43 to 101 | 5 to 24 | 1 |
ERM75 | 75 | 15 | 66 to 160 | 5 to 24 | 1 |
ERM100 | 100 | 20 | 36 to160 | 4.5 to 56.7 | |
ERM150 | 150 | 20 | 36 to 160 | 4.5V to 59.4V |
