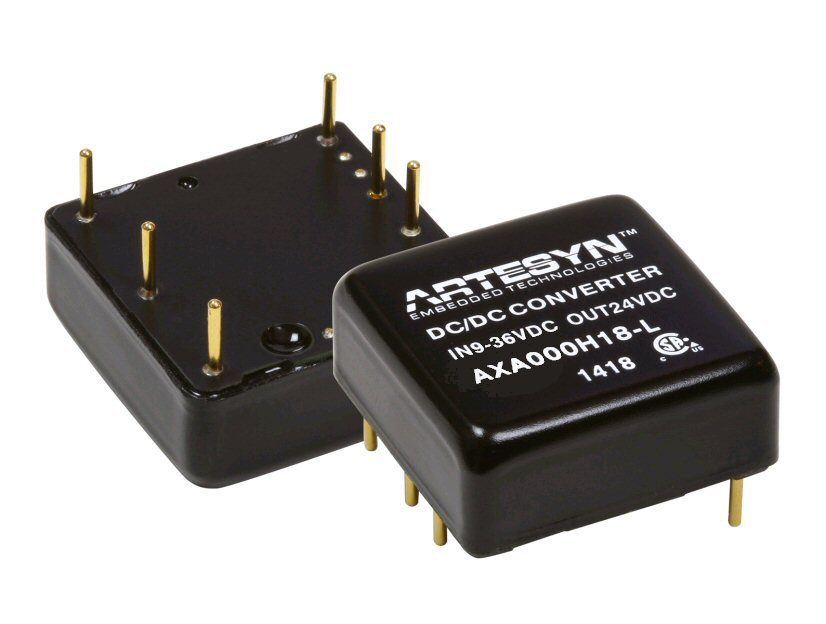

AXA Series – Isolated DC-DC Converters
- Technology
- PCB DC-DC power supplies
- Partner
- Artesyn / Advanced Energy
Artesyn/ Advanced Energy’s AXA Series offers a compact, high-performance family of isolated DC-DC converters designed for use in industrial, telecom, and instrumentation applications. Featuring an ultra-wide 4:1 input voltage range, the AXA series is optimized for use with nominal 24 VDC or 48 VDC power supplies. Available in both single and dual output configurations, these converters support outputs from 3.3 V to 24 V and provide up to 25 W of power in a compact 1" x 1" footprint.
The fully encapsulated design ensures durability in harsh environments, while the high efficiency and reinforced insulation make the AXA series suitable for demanding systems requiring tight regulation and reliable performance.
Range features
A high level overview of what this range offers
-
Ultra-Wide Input Range (4:1) Supports 9–36 VDC or 18–75 VDC for flexible power system design.
-
Compact 1" x 1" Package Space-saving footprint suitable for dense PCBs and small enclosures.
-
Single and Dual Outputs Offers versatile voltage combinations for varied application needs.
-
High Efficiency Up to 89% efficiency reduces heat generation and improves reliability.
-
Fully Encapsulated Design Robust construction improves thermal performance and protects against environmental factors.
-
-40°C to +85°C Operating Range Reliable operation in harsh industrial conditions.
-
Reinforced Insulation Enhanced electrical safety with 1,500 VDC input-to-output isolation.
-
RoHS Compliant & CE Marked Meets global environmental and safety standards.
| Part Number | Output | Power (W) | Input Voltage Range (VDC) | Package Size | Operating Temp (°C) |
|---|---|---|---|---|---|
AXA 10W 9–75 Vin | Single/Dual | 10 | 9 to 75 | 1" x 1" | -40 to +85 |
AXA 20W Single O/P 9–36 Vin | Single | 20 | 9 to 36 | 1" x 1" | -40 to +85 |
AXA 20W Dual O/P 9–36 Vin | Dual | 20 | 9 to 36 | 1" x 1" | -40 to +85 |
AXA 20W Single O/P 18–75 Vin | Single | 20 | 18 to 75 | 1" x 1" | -40 to +85 |
AXA 20W Dual O/P 18–75 Vin | Dual | 20 | 18 to 75 | 1" x 1" | -40 to +85 |
AXA 25W 9–75 Vin | Single/Dual | 25 | 9 to 75 | 1" x 1" | -40 to +85 |
