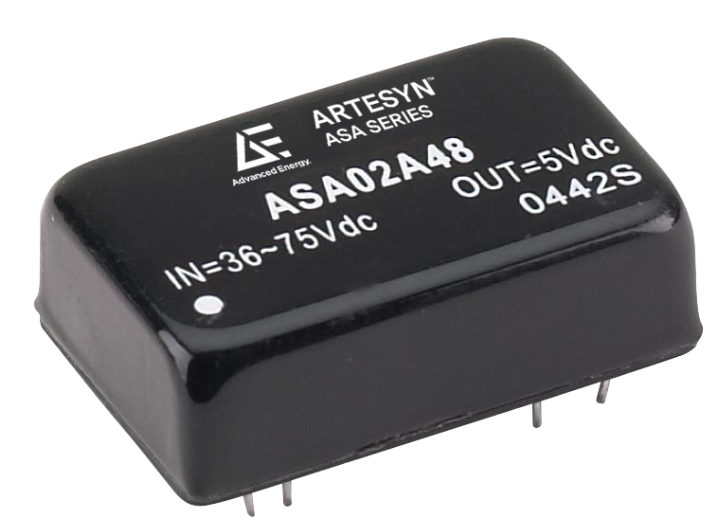

ASA Series – Isolated DC-DC Converters
- Technology
- PCB DC-DC power supplies
- Partner
- Artesyn / Advanced Energy
Advanced Energy’s ASA Series delivers high-performance isolated DC-DC converters designed for low power applications across industrial automation, instrumentation, test and measurement, and telecommunications. These converters are engineered to meet the demands of rugged and space-constrained environments, offering a reliable power solution where durability and performance are critical.
Available in 6 W and 10 W models with wide input voltage ranges, the ASA Series supports both single and dual output options. Housed in a compact, fully encapsulated low-profile metal case, the series ensures robust protection against environmental stress, while maintaining excellent thermal performance. Whether used in harsh field conditions or densely packed PCBs, the ASA Series is a dependable choice for designers seeking compact, efficient, and long-lasting power modules.
Range features
A high level overview of what this range offers
-
Wide Input Voltage Range: Operates from 9 to 75 VDC, offering flexibility across industrial systems.
-
High Efficiency: Delivers reliable power conversion with minimal energy loss.
-
Rugged Design: Encapsulated metal casing ensures durability in harsh environments.
-
Compact Size: Small footprint (1.25" x 0.8") ideal for space-constrained applications.
-
Wide Temperature Range: Operates from -40°C to +85°C.
-
Single and Dual Outputs: Flexibility to support varied system requirements.
-
PCB Mounting: Easy integration into industrial designs.
-
Isolated Output: Enhances safety and performance in sensitive applications.
Downloads
for ASA Series – Isolated DC-DC Converters
| Series | Output Power (W) | Input Voltage Range (VDC) | Size (inches) | Temperature Range (°C) |
|---|---|---|---|---|
ASA 10W 24Vin Series | 10 | 18 to 75 | 1.25 x 0.8 | -40 to +85 |
ASA 10W 48Vin Series | 10 | 18 to 75 | 1.25 x 0.8 | -40 to +85 |
ASA 6W High I/P wide range | 6 | 9 to 75 | 1.25 x 0.8 | -40 to +85 |
ASA 6W Low I/P wide range | 6 | 9 to 75 | 1.25 x 0.8 | -40 to +85 |
