AEE series – Isolated DC-DC converters
- Technology
- PCB DC-DC power supplies
- Partner
- Artesyn / Advanced Energy

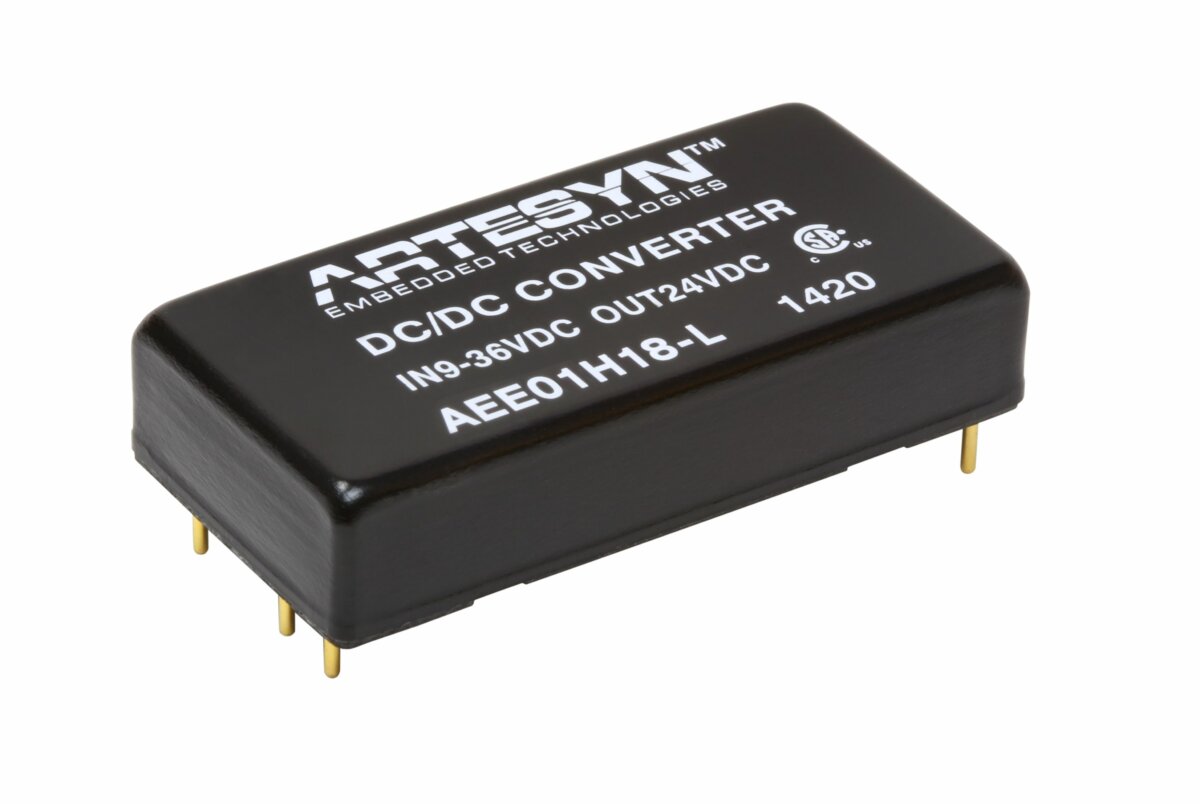

The AEE series from Advanced Energy offers a comprehensive range of isolated DC-DC converters designed to meet the stringent performance and safety requirements of medical and industrial sectors. Delivering output powers of 15W, 40W, and 50W, the AEE series supports a wide range of input voltages (from 9 to 75 VDC) and is available in single or dual output configurations. Housed in compact, industry-standard 2" x 1" packages, these converters are engineered for robustness, high efficiency, and reliability, making them ideal for space-constrained and demanding environments.
With high isolation ratings (up to 4000 VAC) and reinforced insulation, the AEE series ensures safe operation in both medical and industrial-grade systems. Models feature low ripple, high MTBF, and thermal performance suitable for operation across a wide temperature range (-40°C to +85°C). Whether used in test and measurement, instrumentation, automation, or patient-connected medical devices, AEE converters are optimised for power density, compliance, and durability.
Range features
A high level overview of what this range offers
-
Wide Input voltage range (up to 9–75 VDC) – Supports multiple power architectures.
-
Compact 2” x 1” package – Ideal for space-limited applications.
-
4000 VAC reinforced insulation – Meets medical safety standards.
-
High efficiency (up to 80%) – Reduces power loss and thermal management challenges.
-
Dual or single output options – Flexible power delivery.
-
-40°C to +85°C operating range – Suitable for rugged and outdoor use.
-
Encapsulated metal enclosure – Enhanced durability and EMI shielding.
-
Certified for 2x MOOP – Suitable for operator safety in medical systems.
| Part Number | Application | Power (W) | Input Voltage (VDC) | Output Type | Dimensions (in) | Temp. Range (°C) |
|---|---|---|---|---|---|---|
AEE 15 Watt Medical | Medical | 15 | 9 to 75 | Single/Dual | 2 x 1 | -40 to 85 |
AEE 15W High I/P Wide Range | Industrial | 15 | 9 to 75 | Single/Dual | 2 x 1 | -40 to 85 |
AEE 15W Low I/P Wide Range | Industrial | 15 | 9 to 75 | Single/Dual | 2 x 1 | -40 to 85 |
AEE 40W High I/P Dual O/P | Industrial | 40 | 18 to 75 | Dual | 2 x 1 | -40 to 85 |
AEE 40W High I/P Single O/P | Industrial | 40 | 18 to 75 | Single | 2 x 1 | -40 to 85 |
AEE 40W Low I/P Dual O/P | Industrial | 40 | 9 to 36 | Dual | 2 x 1 | -40 to 85 |
AEE 40W Low I/P Single O/P | Industrial | 40 | 9 to 36 | Single | 2 x 1 | -40 to 85 |
AEE 50W High I/P Version | Industrial | 50 | 18 to 75 | Single/Dual | 2 x 1 | -40 to 85 |
AEE 50W Low I/P Version | Industrial | 50 | 9 to 36 | Single/Dual | 2 x 1 | -40 to 85 |
