Precision DC-DC Regulated Supplies for Electrostatic Detectors, Mass Spectrometers, and Photomultiplier Tubes

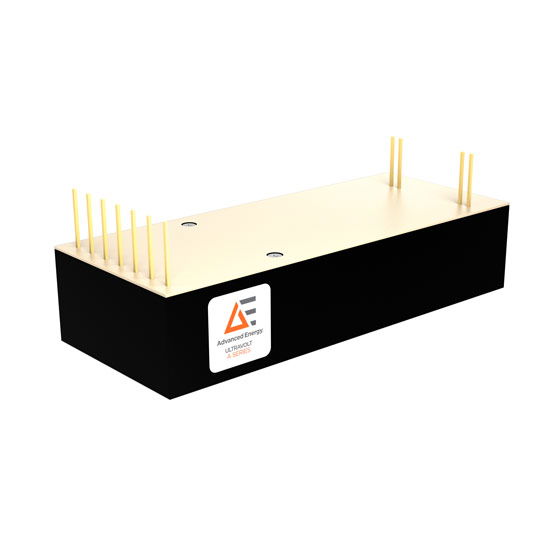

The UltraVolt A series DC-DC converters output 62 VDC to 40 kVDC in single-output positive or negative polarities. Delivering up to 30 W with a low 100 ppm ripple from 12 or 24 VDC input, the regulated power supplies feature analog interface options of 0 to 5 VDC or 0 to 10 VDC (full-scale) for control and monitoring of high-voltage output and current.
Meeting your design requirements with a wide selection of electrical, shielding, and mechanical integration options, the UltraVolt A series is a perfect fit for applications such as electrostatic detectors, mass spectrometers, and photomultiplier tubes.
Features
- Configurable high voltage output, power and polarity
- Available 0 to 5 VDC or 0 to 10 VDC (full-scale) analog interfaces
- Control and monitoring of high voltage output and current
- Wide selection of electrical, shielding and mechanical integration options
- Ripple performance as low at 100 ppm
Benefits
- Save cost and space by selecting only the high voltage capabilities needed
- Speed time-to-market by simplifying controls integration
- Improve response and control of high voltage output and current
- Expand mechanical integration, external RF protection, and interconnection possibilities
- Increase system repeatability, resolution, and long-term reliability
Downloads
for A series DC-DC converters
| Specifications | Values |
|---|---|
Output Power (W): | 4 to 30 |
Mounting Type: | Through Hole, Surface Mount |
Minimum Output Current (A): | 0.00016 |
Maximum Output Current (A): | |
Output Voltage Range (V): | 0 to 40,000 |
Minimum Output Power (W): | 4 |
Maximum Output Power (W): | 30 |
Minimum Input Voltage (V): | 12 |
Maximum Input Voltage (V): | 24 |
