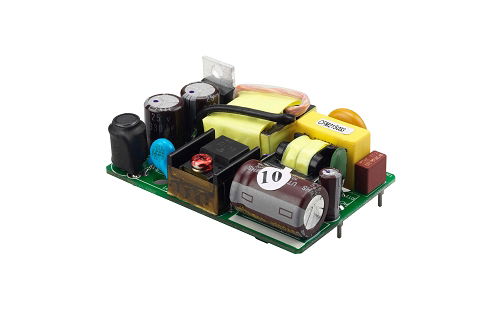

CFM Series Industrial PCB AC-DC Power Supplies
- Technology
- PCB AC-DC power supplies
- Partner
- Cincon
Cincon brings to the market one of the largest offers of industrial PCB-mount AC-DC power supplies, with open-frame and encapsulated models, with power ranging from 6W to 60W.
All these products are approved to ITE safety standards (IEC60950-1/IEC62368-1), and the latest models comply with IEC60355-1 for domestic environments.
All the recent models are ‘green’: high efficiencies, and a very low no-load input power, down to less than 75mW.
Cincon’s products offer a unique feature – an extremely high peak capability to 200% of nominal load, and for up to 10 seconds.
Range features
A high level overview of what this range offers
- Open frame and encapsulated models
- Eight power grades from 6W to 60W – in compact sizes
- Safety approvals per IEC 60950, 62368, 60335 or 61558
- Green power levels: high efficiencies and low standby power
- Huge peak load capability: 200% for 10 sec, with 10% duty cycle
- Universal input 90 ~ 264VAC
- Optional constant current (model dependent)
- Class II operation and EMC Class B
What’s in this range?
All the variants in the range and a comparison of what they offer
| Model | Nominal power | Output voltage | Size (inch) | Form factors |
|---|---|---|---|---|
CFM06S | 6W | 3.3 – 24V | 1.55 x 0.76 | Open frame and enclosed |
CFM10 | 10W | 3.3 – 24V | 2.55 x 1.77 | Open frame, very low-profile |
CFM12S | 12W | 5 – 24V | 1.50 x 1.00 | Open frame and enclosed |
CFM15 | 15W | 3.3 – 24V | 2.75 x 1.89 | Open frame, very low-profile |
CFM20 | 20W | 5 – 24V | 3.50 x 2.00 | Open frame |
CFM21 | 22W | 3.3 – 24V | 2.38 x 1.60 | Open frame and enclosed |
CFM25S | 25W | 5 – 48V | 2.00 x 1.00 | Open frame and enclosed |
CFM40S | 40W | 3.3 – 48V | 4.00 x 2.00 | Open frame |
CFM41S | 40W | 5 – 48V | 2.00 x 2.00 | Open frame and enclosed |
CFM60S | 60W | 3.3 – 48V | 4.00 x 2.00 | Open frame |
CFM61S | 60W | 5 – 48V | 2.00 x 2.00 | Open frame and enclosed |
CFM80 | 80W | 5 – 48V | 4.00 x 2.00 | Open frame |
