ITE and Medical Open Frame Power Supplies
- Technology
- Open / u-frame power supplies
- Partner
- EOS Power
EOS’s multi-purpose range of AC-DC power supplies are industrial and medical grade up to 1kW. The ‘M’ prefix indicates it is a medical version.
The range addresses numerous design demands. The ULP/ MULP offers ultra-low profile 19.05mm height from 80W to 275W. Where forced air cooling is not allowed, the WLC/ MWLC offers base plate/ forced air cooled 550W options in a 5 x 3 x 1.5” form factor. Where space is premium, the WLP/ MWLP 75W – 350W series has industry leading power density. For budget designs, the WLT/ MWLT series is a low cost 40W to 450W range. The 450W WLT/ MWLT has N+1 redundancy.

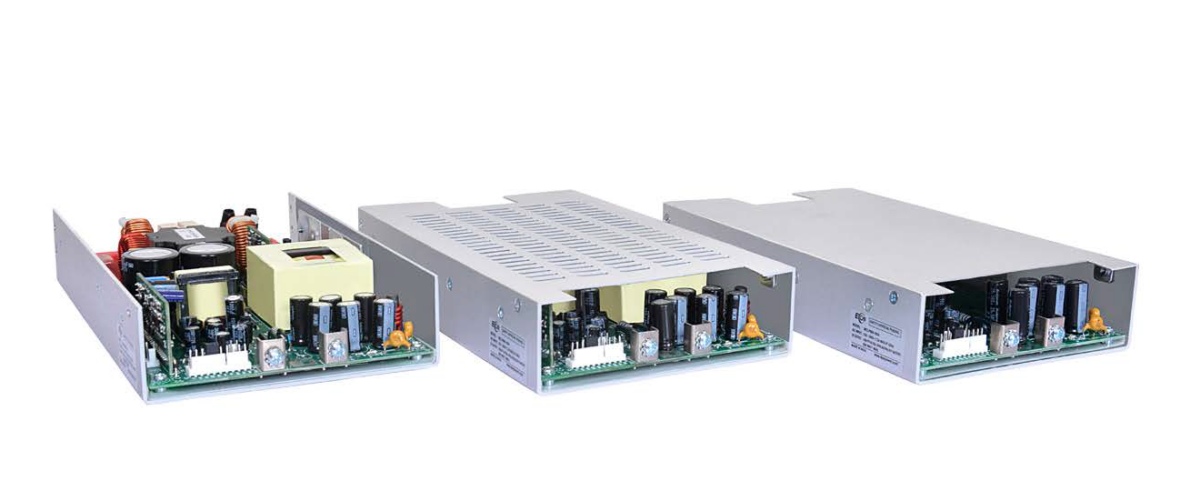

The VPS/ MVPS range includes a fanless cost effective 600W AC-DC solution. The slightly larger models are fan cooled to provide 800W open frame and 1kW enclosed. All VPS/ MVPS have N+1 dual redundant capability.
Range features
A high level overview of what this range offers
- Fanless/ base plate cooling up to 600W
- N+1/ current share, 5VDC standbyon VPS / MVPS models
- 2 x MOPP medical approval
- N+1 on 450W WLT/ MWLT series
- -40 to 70°C operating temperature range on VPS/ MVPS, WLP/ MWLP, and WLC/ MWLC series
- Class I and Class II input options for all ranges except VPS/ MVPS series
- Only 19.05mm height on ULP/ MULP series from 80W to 275W
- Cover kits available on selected models
- IEC/UL62368-1:2018 compliant
- IEC60601-1-2: 2014 medical (4th Edition)
