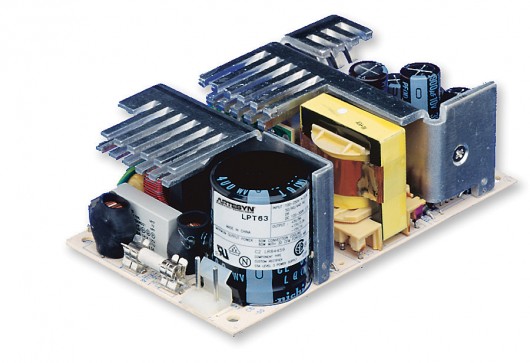

Industrial Open / U-Frame Power Supplies
- Technology
- Open / u-frame power supplies
- Partner
- Advanced Energy
Industrial applications such as test and measurement equipment, 3D printing, automation, and manufacturing equipment, and semiconductor processing equipment all require higher power density, increased efficiency, extreme reliability, and ease of integration.
With over 30 years of experience in leading-edge power supply development, Advanced Energy’s CoolX, UltiMod, XSolo, and Xgen product ranges provide best-in-class flexibility and performance, enabling increased efficiencies of more than 90% and extending product lifecycles by up to 25% with their CoolX series.
Range features
A high level overview of what this range offers
- IEC 60950 and IEC62368-1 certifications
- Five-year warranty
- 5000m altitude operation
- Natural convection cooling available (CoolX series), no fan required, extending the product lifecycle by up to 25%
- MIL-STD-810G shock and vibration compliance for harsh environments
- Reverse energy protection
- High input surge protection
Downloads
for Industrial Open / U-Frame Power Supplies
What’s in this range?
All the variants in the range and a comparison of what they offer
| Series | Dimensions | Cooling | Maximum power (W) | Outputs | Efficiency (%) |
|---|---|---|---|---|---|
Ultimod | UX4: 260 x 89 x 1U UX^: 260 x 127 x 1U | Fan | 1200 | Up to 12 | 92 |
XSolo | 500W: 237 x 128 x 39 1000W: 238 x 128 x 40 | Variable fan speed control or convection | 1000 | 24V, 36V or 48V | 92 |
XGen | 4 Slot: 260 x 89 x 1U 6 Slot: 260 x 127 x 1U | Fan | 1340 | Up to 12 | 90 |
CoolX1000 | 165.1 x 254 x 39.1 | Convection | 1000 | Up to 12 | 93 |
CoolX1800 | 267 x 127 x 41 | Convection | 1800 | Up to 12 | 93 |
CoolX600 | 215.9 x 114.3 x 39.1 | Convection | 600 | Up to 8 | 93 |
