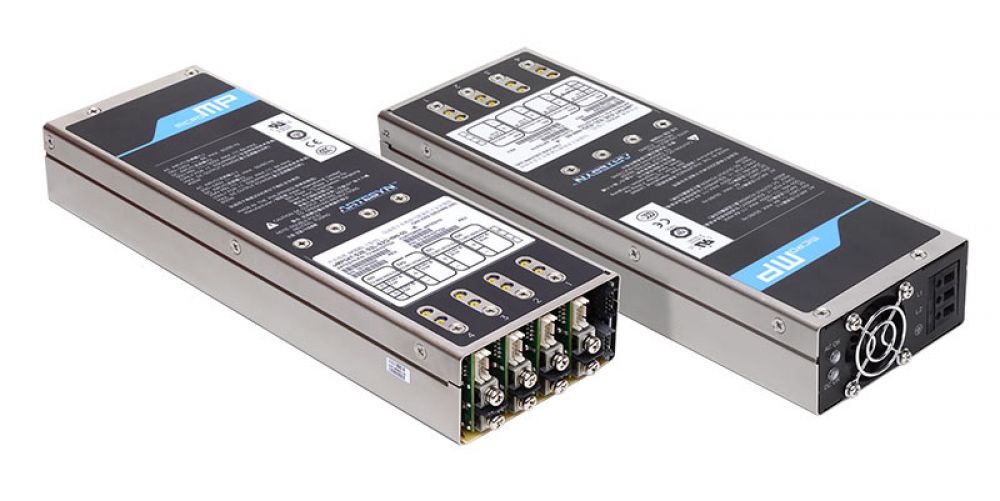

uMP Series Gen II Modular / Configurable Power Supplies

The Gen II uMP series from Artesyn (an Advanced Energy product brand), rivals the cost of non-configurable power supplies while providing market-leading density, efficiency, reliability, and agency approvals. It offers up to 1,800W and can be configured for up to 12 outputs, both multiple and non-standard.

This range is designed for a wide range of applications including medical and laboratory equipment, test and measurement systems, telecommunications equipment, production and process control equipment, military and aerospace systems, data storage systems, burn-in systems, and gaming systems.

The μMP series GEN II offers 5 narrow range adjustable output modules which cover the range from 0.9 V up to 60 V, along with one wide range module which can be set from 3.3 V to 30 V. It employs active power factor correction to minimize input harmonic current distortion and to ensure compliance with the international EN61000-3-2 standard – they have a power factor of 0.99 typical.

uMP Series Gen II Modular / Configurable Power Supplies

Range features

A high level overview of what this range offers

  • High power density (13.9 W/cu-in)
  • Full EN60950 ITE and EN60601 medical safety approvals
  • Rugged MIL-STD-810E
  • Optional conformal coating
  • Industrial temperature range (-40ºC to 70ºC)
  • Industrial shock and vibration (> 50G)
  • Smart fan speed control
  • Individual module inhibit
  • EMI Level B
  • Up to 12 outputs
  • I2C interface and monitor of PFC
  • PMBus® compliant

Downloads

for uMP Series Gen II Modular / Configurable Power Supplies

pdf
AE uMP Configurable AC-DC Power Supplies series
Download
Specitication:Value:

Output Power (W):

1800

Length (Inches):

10

Width (Inches):

5

Height (Inches):

1.57

Mounting Type:

Configurable

Minimum Output Current (A):

0 (zero)

Maximum Output Current (A):

240

Output Voltage Range (V):

0.9V to 60V

Minimum Output Power (W):

1800

Maximum Output Power (W):

1800

Maximum Input Voltage (V):

264

Warranty (Years):

3
