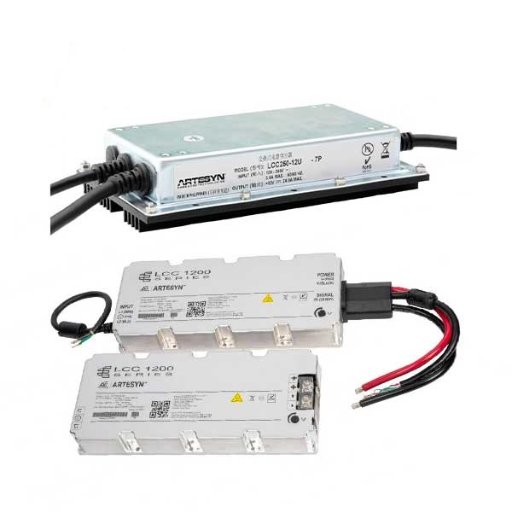

The Artesyn embedded power (an Advanced Energy product brand), LCC series is a range of fanless, fully enclosed AC-DC power supplies.
With IP64 protection against the ingress of dust and water, a wide operating temperature range, and extensive protection against fault conditions, these products are ideal for demanding sealed box and outdoor applications. With the absence of cooling fans which may increase dust and audible noise levels, and with full medical safety or industrial approvals, the LCC series can also be used for indoor applications including medical and aviation equipment. It is also applicable for high uptime and difficult to service equipment where fan failures can be costly.
A universal AC input enables them to be used almost anywhere in the world. Customers have a choice of two mounting and cooling orientations: conduction or convection.
Range features
A high level overview of what this range offers
- Baseplate cooled
- Wide operating temperature range suited for both outdoor and indoor applications
- No derating up to 85°C baseplate temperature
- IP64 rated enclosure
- Adjustable output
- EMI Class B
Downloads
for LCC Series Conduction Cooled AC-DC Enclosed Power Supplies
What’s in this range?
All the variants in the range and a comparison of what they offer
| Series | Description | Output Power (W) | Nominal Input Voltage Range (V) | Size | Operational Temperature Range (°C) |
|---|---|---|---|---|---|
LCC1200 | 1200 W Conduction Cooled AC-DC Power Supplies | 1200 | 90 to 264 VAC | 11" x 4.5" (279.4mm x 114.3mm) | -40 to 85 |
LCC250 | 250 W Conduction Cooled AC-DC Power Supplies | 250 | 90 to 264 VAC | 7" x 4" (177.8mm x 101.6mm) | -40 to 85 |
LCC600 | 600 W Conduction Cooled AC-DC Power Supplies | 600 | 90 to 305 VAC | 9" x 4" (228.6mm x 101.6mm) | -40 to 85 |
