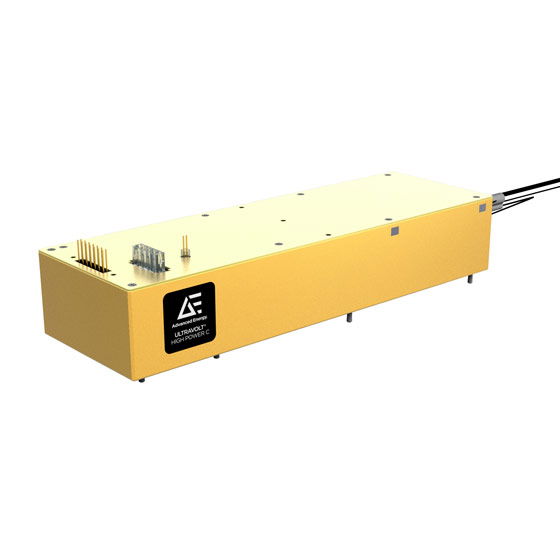

High Power C Series – Compact, Fast-Rise Capacitor Charging Supplies
High Voltage Power Designed for High Performance
The UltraVolt High Power C Series from Advanced Energy delivers powerful, compact, and precise DC-to-DC regulated power supplies built for high-performance capacitor charging applications. With output voltages from 125 VDC to 60,000 VDC and power levels between 30 W and 250 W, this series is the ideal choice for systems requiring fast charge times, tight voltage control, and high power density.
Engineered for applications like lasers, pulsed power systems, pulse generators, and test equipment, the High Power C Series offers positive or negative single-output models with low ripple, minimal overshoot (<1%), and robust analog control. These supplies operate from a 24 VDC input and are available with various mechanical and electrical configuration options to streamline your integration and system design.
Looking for high voltage, high power, and high reliability in one compact package? The UltraVolt High Power C Series delivers exceptional performance tailored to the needs of engineers in laser, test, and pulsed power systems.
Range features
A high level overview of what this range offers
- Wide output range up to 60,000 VDC
- Up to 250 W fast-rise charging power
- Ideal for >30 W high-voltage applications
- Low overshoot to protect sensitive components
- Compact footprint and high power-to-size ratio
- Multiple analog interface options for flexible control
- Low ripple output for cleaner performance
- Configurable for positive or negative polarity
- Integration-friendly with mechanical and electrical options
- Backed by Advanced Energy’s global quality and support
- High power output: 30 W to 250 W
- Output voltages from 125 VDC up to 60,000 VDC
- Single-output design in positive or negative polarity
- Fast-rise time charging with <1% voltage overshoot
- Ripple <10,000 ppm for high signal integrity
- Full-featured analog interface for voltage/current control and monitoring
- High power-to-package size ratio
- Low temperature coefficient: 25 ppm/°C
- Multiple mechanical and electrical integration options
- Designed for pulsed power, laser systems, and test equipment
What’s in this range?
| Model | Output Voltage Range | Output Power | Ripple | Overshoot | Input Voltage | Configuration Options | Application | Control Type |
|---|---|---|---|---|---|---|---|---|
1/2C24-N125 | 125 VDC | 30 W | Low ripple | <1% | 24 VDC | Negative Output | Capacitor Charging, Test Equipment | Robust analog control |
1/2C24-N250 | 250 VDC | 30 W | Low ripple | <1% | 24 VDC | Negative Output | Capacitor Charging, Test Equipment | Robust analog control |
1/2C24-N60 | 60 VDC | 30 W | Low ripple | <1% | 24 VDC | Negative Output | Capacitor Charging, Test Equipment | Robust analog control |
1/2C24-P125 | 125 VDC | 30 W | Low ripple | <1% | 24 VDC | Positive Output | Capacitor Charging, Test Equipment | Robust analog control |
1/2C24-P250 | 250 VDC | 30 W | Low ripple | <1% | 24 VDC | Positive Output | Capacitor Charging, Test Equipment | Robust analog control |
1/2C24-P60 | 60 VDC | 30 W | Low ripple | <1% | 24 VDC | Positive Output | Capacitor Charging, Test Equipment | Robust analog control |
1/4C24-P125 | 125 VDC | 60 W | Low ripple | <1% | 24 VDC | Positive Output | Capacitor Charging, Test Equipment | Robust analog control |
1/4C24-P250 | 250 VDC | 60 W | Low ripple | <1% | 24 VDC | Positive Output | Capacitor Charging, Test Equipment | Robust analog control |
1/4C24-P60 | 60 VDC | 60 W | Low ripple | <1% | 24 VDC | Positive Output | Capacitor Charging, Test Equipment | Robust analog control |
1/8C24-P250 | 250 VDC | 125 W | Low ripple | <1% | 24 VDC | Positive Output | Capacitor Charging, Test Equipment | Robust analog control |
