Dual Polarity C Series – High Voltage, Dual-Output DC-DC Power Supplies
Precision power for fast, controlled capacitor charging

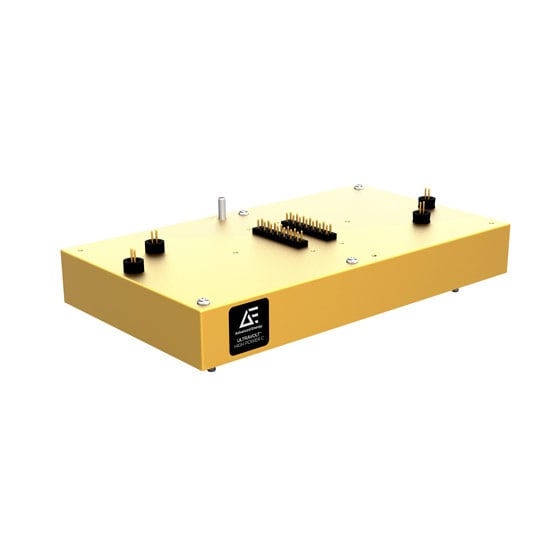

Advanced Energy’s UltraVolt Dual Polarity C Series delivers regulated, dual-output high voltage DC-DC power specifically engineered for capacitor charging applications that require rapid charge times and minimal voltage overshoot. Ideal for use in pulsed power systems, ultrasound, amplifiers, and pulse generators, this compact solution integrates both positive and negative polarities into a single unit—streamlining system design while maximizing performance.
Available in seven voltage ranges from ±125 VDC to ±6000 VDC, each model is powered by a 24 VDC input and delivers up to 250 W of fast-rise energy with <1% overshoot. With independent analog control for each polarity and low ripple output, these supplies are engineered for precision, reliability, and efficiency in the most demanding applications.
For applications requiring fast, controlled high-voltage energy, the UltraVolt Dual Polarity C Series delivers compact, reliable performance with dual-polarity convenience.
Range features
A high level overview of what this range offers
-
Dual-output design delivers positive and negative voltages from a single module
-
Built for fast capacitor charging with minimal overshoot
-
Analog interface with individual output control
-
Compact integration with mechanical options to fit your design
-
Wide output voltage range up to ±6000 VDC
-
Low ripple and excellent stability
-
Backed by Advanced Energy’s global quality and support
-
Dual-polarity output in a single package
-
Output voltage ranges: ±125 VDC to ±6000 VDC
-
Up to 250 W total output power
-
Fast-rise time charging with <1% overshoot
-
Ripple: 10000 ppm
-
Temperature coefficient: 50 ppm/°C
-
Compact, high-density design
-
Unipolar output type (one positive, one negative)
-
Ideal for pulsed power, ultrasound, amplifiers, and more
Downloads
for Dual Polarity C Series – High Voltage, Dual-Output DC-DC Power Supplies
What’s in this range?
| Model Number | Control Type | Max Output Power (W) | Max Output Voltage (V) | Number of Outputs | Ripple (ppm) | Temp. Coeff. (ppm/°C) | Output Type |
|---|---|---|---|---|---|---|---|
1/8C24-NP125-1 | Analog | 60 | 125 | 2 | 10000 | 50 | Unipolar |
1/8C24-NP250-1 | Analog | 125 | 125 | 2 | 10000 | 50 | Unipolar |
1/4C24-NP125-1 | Analog | 60 | 250 | 2 | 10000 | 50 | Unipolar |
1/4C24-NP250-1 | Analog | 125 | 250 | 2 | 10000 | 50 | Unipolar |
1/2C24-NP125-1 | Analog | 60 | 500 | 2 | 10000 | 50 | Unipolar |
1/2C24-NP250-1 | Analog | 125 | 500 | 2 | 10000 | 50 | Unipolar |
1C24-NP125-1 | Analog | 60 | 1000 | 2 | 10000 | 50 | Unipolar |
1C24-NP250-1 | Analog | 125 | 1000 | 2 | 10000 | 50 | Unipolar |
2C24-NP125-1 | Analog | 60 | 2000 | 2 | 10000 | 50 | Unipolar |
2C24-NP250-1 | Analog | 125 | 2000 | 2 | 10000 | 50 | Unipolar |
4C24-NP125-1 | Analog | 60 | 4000 | 2 | 10000 | 50 | Unipolar |
4C24-NP250-1 | Analog | 125 | 4000 | 2 | 10000 | 50 | Unipolar |
6C24-NP125-1 | Analog | 60 | 6000 | 2 | 10000 | 50 | Unipolar |
6C24-NP250-1 | Analog | 125 | 6000 | 2 | 10000 | 50 | Unipolar |
