High-Resolution CCD Spectrometers

These devices are characterised by high quantum efficiency in the UV range and a high signal-to-noise ratio, making them ideal for a variety of demanding applications.

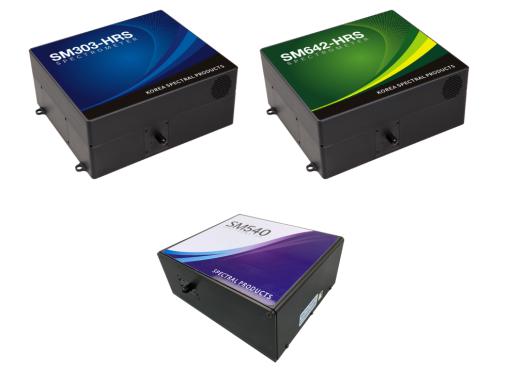

The SM303-HRS, SM540, and SM642-HRS models use back-thinned CCD detectors, known for their high sensitivity. Cooling these detectors to -10°C reduces thermal noise, leading to improved performance in detecting weak signals. Therefore, these spectrometers are optimal for analysing samples with low light intensity.

High-Resolution CCD Spectrometers

What’s in this range?

All the variants in the range and a comparison of what they offer

ModelsSM303-HRS SM540 SM642-HRS

Detector

CCD back-thinned, cooled

CCD

CCD back-thinned

Pixel

1024 x 58

3648

2048 x 64

Spectral range

~200-1050 nm

200-1050 nm

200-1050 nm

Optical resolution (slit-dependent)

~0.5 – 10 nm

0.1 – 10 nm

0.1 – 7 nm FWHM AVG

Signal-to-noise ratio

>1000:1

250:1

450:1

Contact us

To request further information and availability please feel free to contact us right away.Or just fill out our contact form for a member of the sales team to respond to you.

Mandatory field: please enter your phone number.

In submitting this enquiry form you confirm you have read and agree to our privacy policy .

There was an error while sending the form. Please try again.

FAQs

for High-Resolution CCD Spectrometers

The SM303 is designed for applications requiring a very high signal-to-noise ratio and a large dynamic range, such as fluorescence, Raman, and diffuse reflection. It offers extremely low dark noise and stray light, high UV quantum efficiency, and a high data acquisition speed.

Cooling significantly improves the signal-to-noise ratio by reducing thermal noise. This is essential for high-resolution spectroscopy, where detecting fine details in the spectra is required. Another advantage is the possibility of particularly long integration times.

The SM540 is distinguished by its high pixel count of 3648, which enables extraordinary spectral resolution. This makes it ideal for applications requiring detailed spectral analysis.

Due to its high spectral resolution and extended spectral range, the SM642-HRS is particularly suitable for examining complex samples such as detailed Raman and fluorescence studies, as well as for precise characterisation of LED properties.

High quantum efficiency in the UV range allows for the efficient detection and analysis of UV light, which is crucial for applications such as UV-VIS absorption spectroscopy and the study of photo reactions.
