The Arcoptix FT-FC series is a variant of our FT spectrometers, specifically developed for operation with fiber optic probes (such as ATR probes).One of the main applications for the FTIR-FR spectrometer is process monitoring.

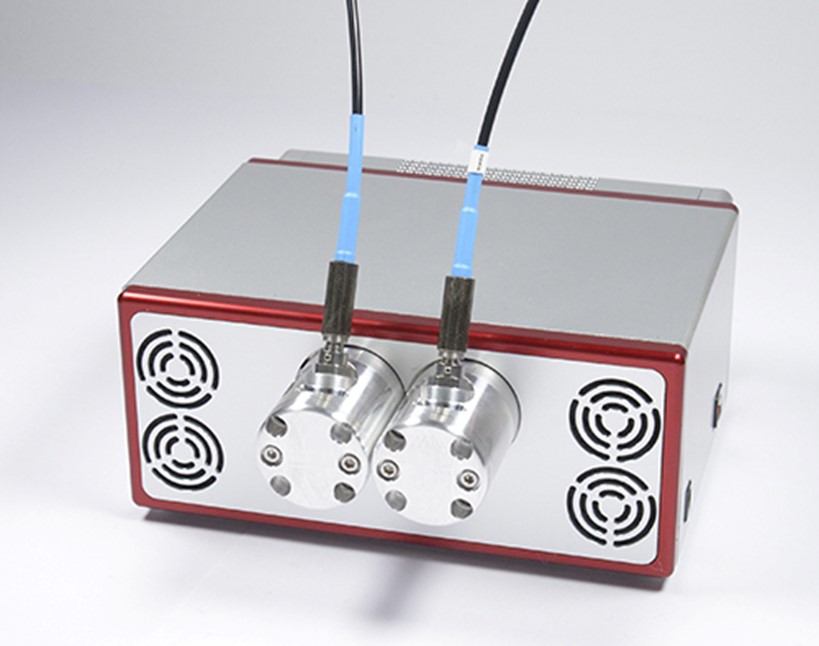

FTIR-FC spectrometer

Principle

Just like our FTIR spectrometers, this system can be customised with TE-cooled InGaAs and MCT detectors and, for extremely low noise measurements, with liquid nitrogen-cooled detectors.

The FTIR-FC is an all-in-one solution with an integrated light source, interferometer, detector and fibre couplers.

Alternatively, we can also offer a version with integrated "ATR head". The ATR head can be used either for measuring liquid drops or with the supplied flow cell for fluid flow.

Downloads

for FTIR-FC spectrometer

pdf
ARCoptix FT-FC – Overview Brochure
Download
pdf
ARCoptix Fourier tranform spectromter tutorial
Download
ModelFTNIR-FC-025-TEFTMIR(FC-060-2TE)FTMIR-FC-120-4TEFTMIR-FC-10-LN

Wavelength range [cm-1]

4000-11000

1700… 5000

800… 5000

Z625… 5000

Wavelength range [m]

0.9… 2.5 µm

2… 6 µm

2… 12 µm

2… 16 µm

Detector type

D- [cm Hz1/2W-1]

InGaAs (2-TE cooled)

>1,5×1011

MCT (2-TE cooled)

>1×1011

MCT (4-TE cooled)

>2.5×109

MCT (4-TE cooled)

>3×1010

Integrated light source

20W Halogen

20WSiC globar

20WSiC globar

20WSiC globar

Wavenumber repeatability

<10PPM

<10PPM

<10PPM

<10PPM

Resolution [cm-1]

4, 2, or optionally 1 and 0.5

4, 2, or optionally 1 and 0.5

4, 2, or optionally 1 and 0.5

4, 2, or optionally 1 and 0.5
