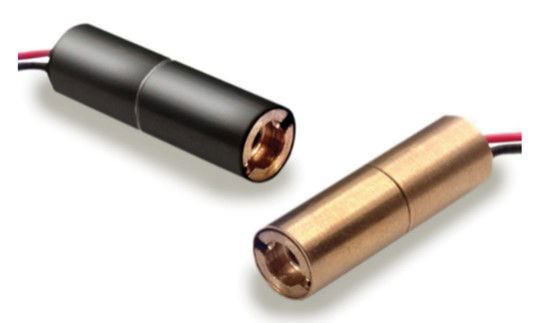

ProPhotonix’s compact laser modules are only 8mm in diameter (the elliptical beam options are 8mm in diameter; line and cross lasers are 9mm in diameter) and can deliver up to 650nm and 4mW. The new and improved compact laser diode modules offer excellent bore sighting (<0.5°) for high accuracy and easy installation.

The self-powered laser diode modules have been developed for applications where space is an important consideration. They are therefore ideal for a wide range of applications, e.g. industrial and medical applications, barcode scanning, target acquisition, light scattering, and smoke detectors as well as 3D measurements.

The compact laser module range offers high reliability and is available with CW or TTL modulation options. The low power requirements of the compact laser diode modules allow them to be battery-powered via a handheld unit.

Available options include a hard anodised aluminium housing, which ensures high performance and makes the Compact Laser Modules a more durable laser module.

Compact Laser Modules

Range features

A high level overview of what this range offers

  • Wavelengths: 520nm, 635nm, and 650nm
  • Optical output powers: 0.9mW to 4mW
  • Constant output power
  • Cost-effective
  • Operating temperature: -10 °C to +40 °C
  • Operating voltages: 3V, 6V or 9V
  • Low power consumption
  • Beam shapes: Line, cross, and elliptical
  • Beam angle: 58° to 88°

What’s in this range?

All the variants in the range and a comparison of what they offer

ShapeBeam size/ line widthBeam angleMaximum output powerCollimated beam divergence

Line

1mm @ 1m

58° to 88°

Up to 4mW

Elliptical

3.5mm x 1.5mm

Up to 4mW

< 1mrad

Cross

1mm @ 1m

70°

Up to 4mW
