APH Amorphous Powder Cores

Technology
Powder cores
Partner
AMOgreentech

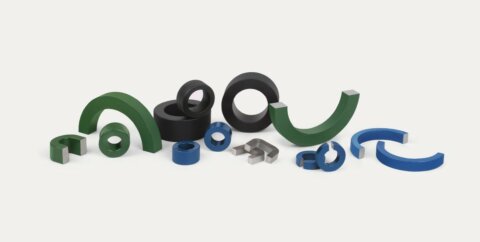

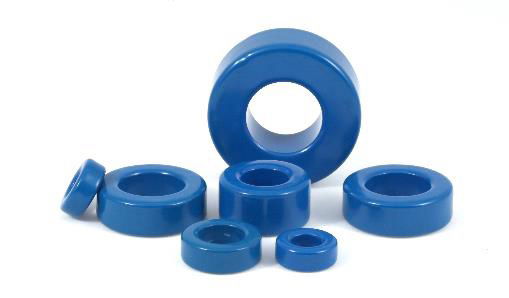

Amogreentech’s amorphous powder cores show high saturation flux density of 1.56Tesla typical of iron-amorphous soft magnetic materials with the advantage of a powder core with distributed air gaps.

The isotropic distribution of the crystal grains helps to reduce the power losses, allowing excellent DC Bias, low core losses, and soft saturation, offering improved performance and capability to perform in temperature critical applications. Available with two permeabilities: 60 and 90. Target applications are PFC chokes and output filter chokes on a wide range of power supplies.

APH Amorphous Powder Cores
IntroFeaturesDownloadsSpecificationsContact

Range features

A high level overview of what this range offers

  • Materials alloy: Fe-Amorphous
  • Permeabilities: 60 and 90
  • Saturation flux density BS: 15000 Gausses
  • Curie temperature: 395°C
  • Medium relative cost
  • Sizes available (mm): 13 – 57
  • DC bias @100 Oe: 70%
  • Core losses @50kHz, 0.1T: 300-350 mW/cm3
  • Core losses @100kHz, 0.1T: 600-700 mW/cm3
  • Coating colour: blue

Downloads

for APH Amorphous Powder Cores

pdf
AMOgreentech APH material properties
Download
pdf
AMOgreentech powder core introduction
Download

What’s in this range?

All the variants in the range and a comparison of what they offer

ModelSize (finished) (OD × ID × HT)A L (nH /N2) 60µA L (nH /N2) 90µLe (cm)Ac (cm2)Vol (cm3)

13PXX

13.5 × 7.0 × 5.5

27

40

3.12

0.11

0.36

17PXX

17.4 × 9.5 × 7.1

35

52

4.11

0.19

0.79

18PXX

18.0 × 9.0 × 7.1

43

64

4.14

0.23

0.96

20PXX

21.1 × 12.1 × 7.1

32

49

5.09

0.23

1.15

23PXX

23.6 × 13.4 × 8.4

43

65

5.67

0.33

1.88

24PXX

24.3 × 13.8 × 9.7

51

76

5.88

0.39

2.28

27PXX

27.7 × 14.1 × 12.0

75

113

6.35

0.65

4.15

33PXX

33.8 × 19.3 × 11.6

61

–

8.15

0.67

5.48

36PXX

36.7 × 21.5 × 11.3

56

–

8.98

0.68

6.09

40PXX

40.7 × 23.3 × 15.4

81

122

9.84

1.07

10.55

46PXX

47.6 × 23.3 × 18.9

135

–

10.74

1.99

21.37

50PXX

51.7 × 30.9 × 14.4

73

–

12.73

1.25

15.93

57PXX

58.0 × 25.6 × 16.1

138

–

12.50

2.29

28.63
