Low Frequency Transformers

JQH is a leading supplier in the electromagnetic components industry, specialising in the customised design, manufacturing, and sales of a wide range of products, including electromagnetic components, power supplies, and specialised transformers.

JQH’s product portfolio features high-frequency transformers, power adapters, open-frame power supplies, PV inverters, smart digital power supplies, three-phase transformers, and specialised reactors.

Low Frequency Transformers
CategoryTransformer and Resonant InductorPlanar TransformerMagnetic Saturation TransformerSafety Isolation Transformer

Product features

Integrated input/output inductance with transformer, small size, lightweight, stable performance, high efficiency.

Multiple windings, low current, flat design, simple process, easy for automation

High reliability, voltage-regulated power supply with wide voltage input

Customisable according to customer requirements, meeting performance specifications

Application

Used in OBC modules for electric and hybrid vehicles

Used in DC-DC modules for electric and hybrid vehicles

Used in halogen lamps, regulated power supply​

Used in industrial control, equipment, machine tools, elevator control devices

Parameters

Input voltage: 0-800V​ Output voltage: 0-621V ​ Power: 6.6KW, 11KW, 22KW

Operating voltage: 250-380V​ Frequency: 100-250KHz​ Power: 2KW, 2.5KW, 3KW, 3.5KW

Input specifications: 80-276V, 50/60Hz​ Power: 800-2000W​ Output specifications: 48Vac, 63Vac, 88Vac

Input specifications: 100-240V, 50/60Hz​ Output power: 100-2000W​ Output specifications: 220Vac, 240Vac, 110Vac

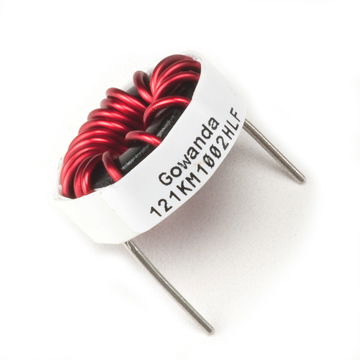

CategoryHorizontal PM TransformerToroidal TransformerHorizontal PQ Transformer

Product features

Meets CCC, UL, CE, and other global standards, offering over 97% efficiency with low high-frequency loss. Advanced manufacturing enables customization and fast delivery.

Closed magnetic circuit with excellent anti-interference performance

Meets global standards with over 97% efficiency, low high-frequency loss, customisation options, and fast delivery.

Application

Used in charging station applications

Used in audio equipment, televisions, instruments, industrial control, medical equipment, machine tools, elevator control devices, and control boards

Used as the main transformer in switching power supplies

Parameters

Input: 100-240V, 50/60Hz Switching Frequency: 100kHz Output: 15-30kVA Operating Temp: -25℃ to 60℃ Storage Temp: -40℃ to +105℃ Pin Type: Customisable Dimensions: Customisable

Input: 100-240V, 50/60Hz​ Output specifications: 20-60W​ Operating Temperature: -25℃-60℃

Input: 100-240V, 50/60Hz Switching frequency: 100kHz Output: 30kVA Operating Temp: -25℃ to 60℃ Storage temp: -40℃ to +105℃ Pin Type: Customisable Dimensions: Customisable
