Common Mode Chokes
- Technology
- Common mode chokes
- Partner
- Gowanda

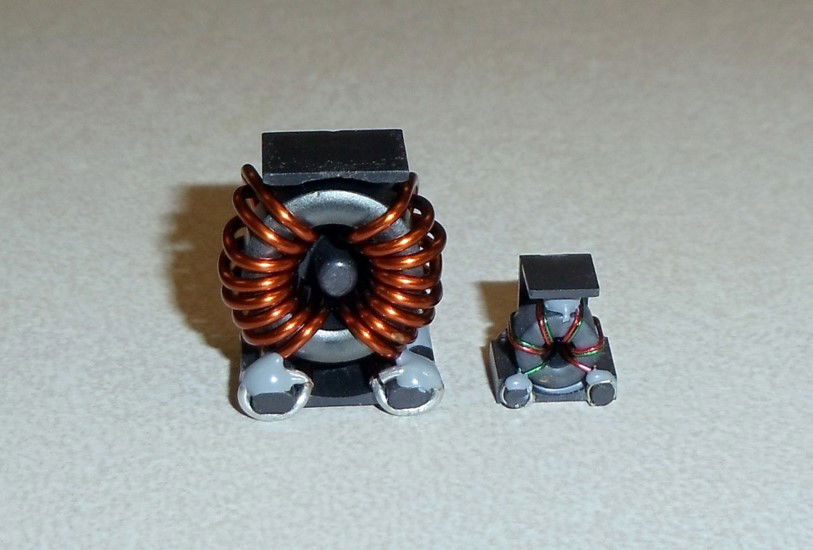

This technology has been designed for heavy and high Rel environmental requirements using all the extensive technical expertise that a trusted name like Gowanda offers.
Common mode chokes standard manufacturing process includes high-temperature inter-connect and thermal set epoxy encapsulation for long-term reliability.
All products in this range are lead-free (RoHS), available in both surface mount technology (SMT) or plate through-hole (PTH), in a vertical or horizontal mount. All with high-temperature magnetic wire for a wide operating range.
Range features
A high level overview of what this range offers
- Surface mount technology or plate through-hole, horizontal, vertical, potted, and low-profile configurations
- High-temperature inter-connect
- High-temperature magnetic wire
- Operating temperature: -55°C to +125°C
- Temperature stable products series
- Excellent electromagnetic shielding
- Operating temperature range: -55°C to +150°C
- Windings balanced within 2%
- Dielectric withstanding voltage (DWV) is 1250Vrms
What’s in this range?
All the variants in the range and a comparison of what they offer
| Series | Inductance µH | DCR Ohms | Current rating mA DC | Mount |
|---|---|---|---|---|
CMF1SM | 100 – 1000 | 0.026 – 0.658 | 500 – 2800 | SMT |
CMF2SM | 100 – 1000 | 0.035 – 0.210 | 1200 – 3000 | SMT |
CMF3SM | 25 – 2500 | 0.010 – 0.150 | 2200 – 8500 | SMT |
CMF61SM | 25 – 2200 | 0.010 – 0.750 | 180 – 3000 | SMT |
CMF63SM | 33 – 4700 | 0.007 – 1.050 | 250 – 5500 | SMT |
CMF64SM | 100 – 10000 | 0.006 – 0.900 | 330 – 7000 | SMT |
CMF65SM | 100 – 15000 | 0.005 – 1.100 | 350 – 8500 | SMT |
CMN3VSM | 180 – 10000 | 0.0019 – 0.0347 | 3.8 – 16400 | SMT |
CMF4VM | 100 – 10000 | 0.0025 – 0.390 | 1200 – 15000 | PTH |
CMF5VM | 750 – 15000 | 0.009 – 0.250 | 2200 – 11800 | PTH |
CMF4H | 100 – 10000 | 0.0025 – 0.390 | 1200 – 15000 | PTH |
CMF5H | 750 – 15000 | 0.009 – 0.250 | 2000 – 12500 | PTH |
CMF4HC | 100 – 10000 | 0.004 – 0.390 | 1200 – 12000 | PTH |
