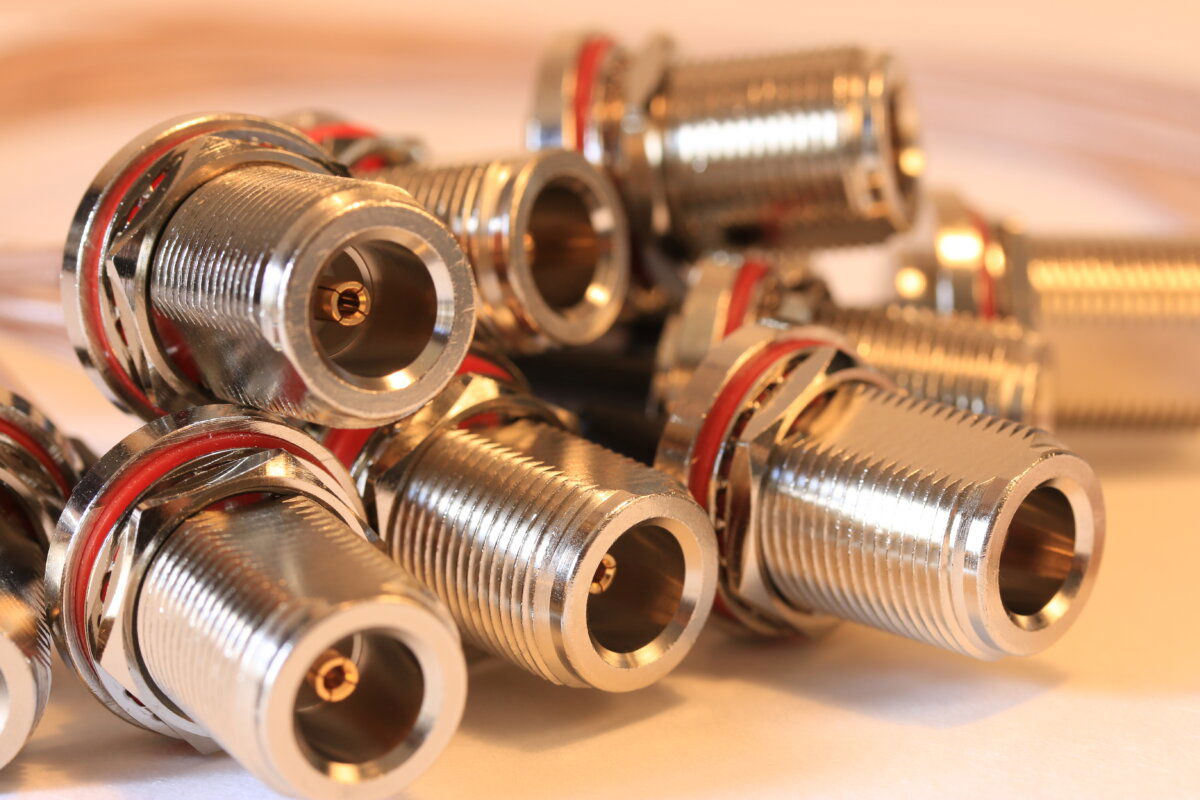

ACCA offers a complete range of coaxial connectors for printed circuits, panels, cables or special applications: SMA, SMB, N, TNC, BNC, MMCX, MCX, FAKRA, U.FL. for WIFI, GPS, GSM antenna link, TETRA, Bluetooth, and Zigbee.
We offer a gold finish as standard, or a Nickel-plated option for outdoor usage.
You can also request custom connectors to meet your specific needs or layouts and applications, including those for use in harsh environments.
Range features
A high level overview of what this range offers
- Micro coaxial DC to 18 Ghz
- Miniature coaxial DC to 12.4 Ghz
- Tiny CoaxialDC to 40 Ghz
- DIP, SMT, PRESS-FIT, Screw-in, Press-in
- Screw lock, bayonet lock, snap-on, slide-on
- Conversion adapter
- Customised design options
- Up to IP68
What’s in this range?
All the variants in the range and a comparison of what they offer
| Model | Size range | Frequency range | Locking mechanism | Technology on PCB |
|---|---|---|---|---|
U.FL | Micro-coaxial | DC to 18Ghz | Snap-on | SMT |
W.FL | Micro-coaxial | DC to 6Ghz | Snap-on | SMT |
MHF | Micro-coaxial | DC to 6Ghz | Snap-on | SMT |
MMCX | Mini-coaxial | DC to 6Ghz | Snap-on | DIP-SMT |
MCX | Mini-Coaxial | DC to 6Ghz | Snap-on | DIP-SMT |
SMB | Mini-Coaxial | DC to 4Ghz | Snap-ont | DIP-SMT |
SMC | Mini-Coaxial | DC to 10Ghz | Screw-lock | DIP |
SMA | coaxial | DC to 18Ghz | Screw-lock | DIP-SMT |
FME | coaxial | DC to 3Ghz | Screw-lock | DIP |
TNC | coaxial | DC to 4Ghz | Screw-lock | DIP |
N | coaxial | DC to 18Ghz | Screw-lock | DIP |
BNC | coaxial | DC to 4Ghz | Bayonet-lock | DIP |
SMB-A(Fakra) | coaxial | DC to 4Ghz | Slide-on | DIP-SMT-PRESS-FIT |
